Installing Additional Processors
74
6. Verify the processor speed and FSB setting, before installing the second
processor module. See Figures 7-1 and 7-2, and Tables 7-1 and 7-2.
Both processor modules must have the same clock speed, cache size, FSB
speed, and product number.
7. If installing two new processor modules, set the switches accordingly.
Use a small, flat-blade screwdriver or similar tool.
Shaded rectangle
represents the
position of slide
switch.
2 Processor Speed (Bit 1)
3 Processor Speed (Bit 2)
4 Processor Speed (Bit 3)
5 Clear Configuration
6 Clear Password
8 FSB Speed (133/100 MHz)
Open = Off Closed = On
Rear of HP NetServer

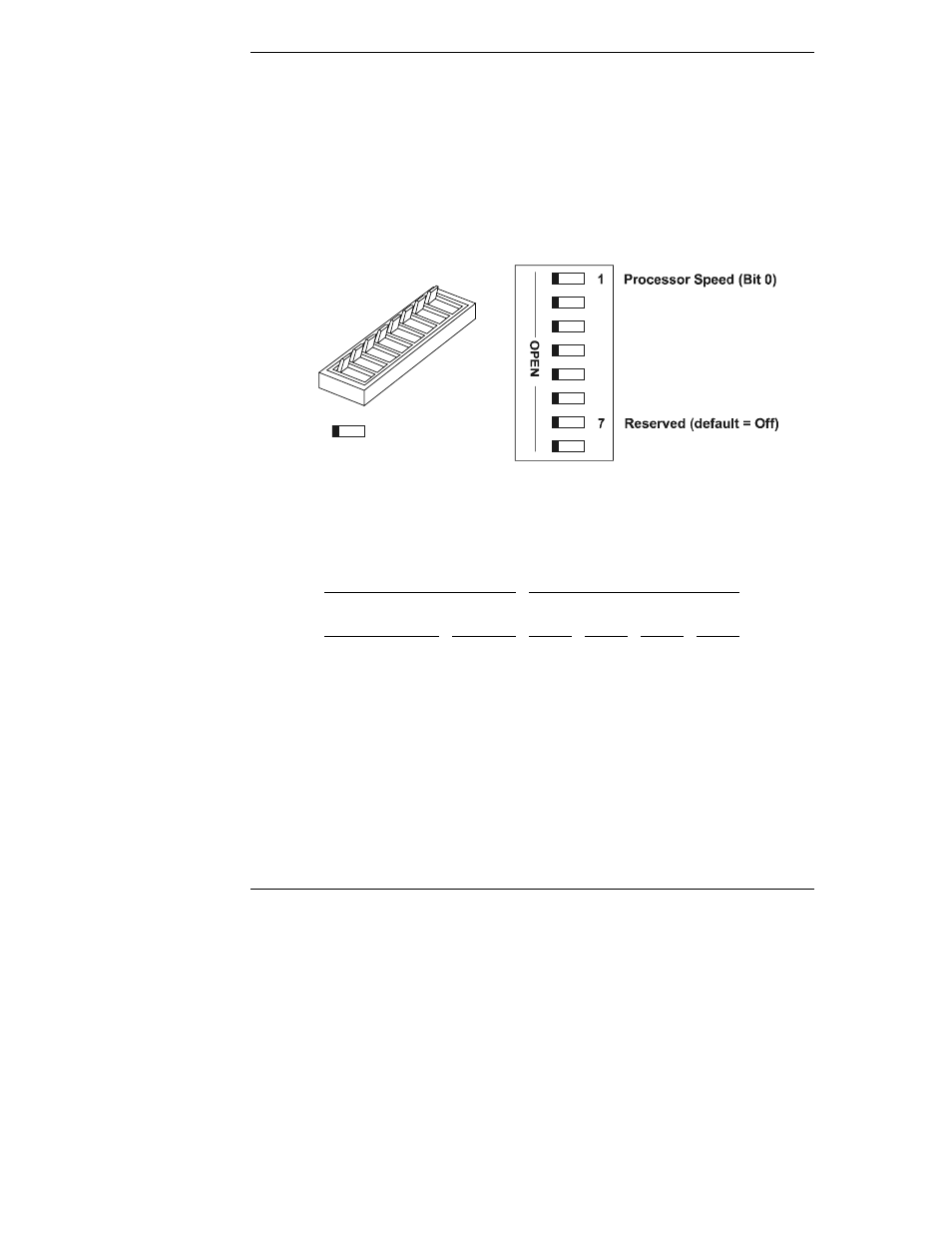

Figure 7-2. System Switch and Settings
Table 7-1. Configuration Switch Settings
FSB Switch Setting
Processor Speed Settings
SW8 – Off
(133 MHz Bus)
(Multiple
of FSB)
SW1
SW2
SW3
SW4
533 MHz
4.0X
ON
OFF
ON
ON
600 MHz
4.5X
ON
OFF
ON
OFF
667 MHz
5.0X
ON
OFF
OFF
ON
733 MHz
5.5X
ON
OFF
OFF
OFF
