Figure 2-4. series connection using remote sensing, Series connection using remote sensing -12, Parallel connections using remote sensing -12 – KEPCO KLP Series User Manual, Rev 4 User Manual

Page 38

background image

2-12

KLP-HV 091313

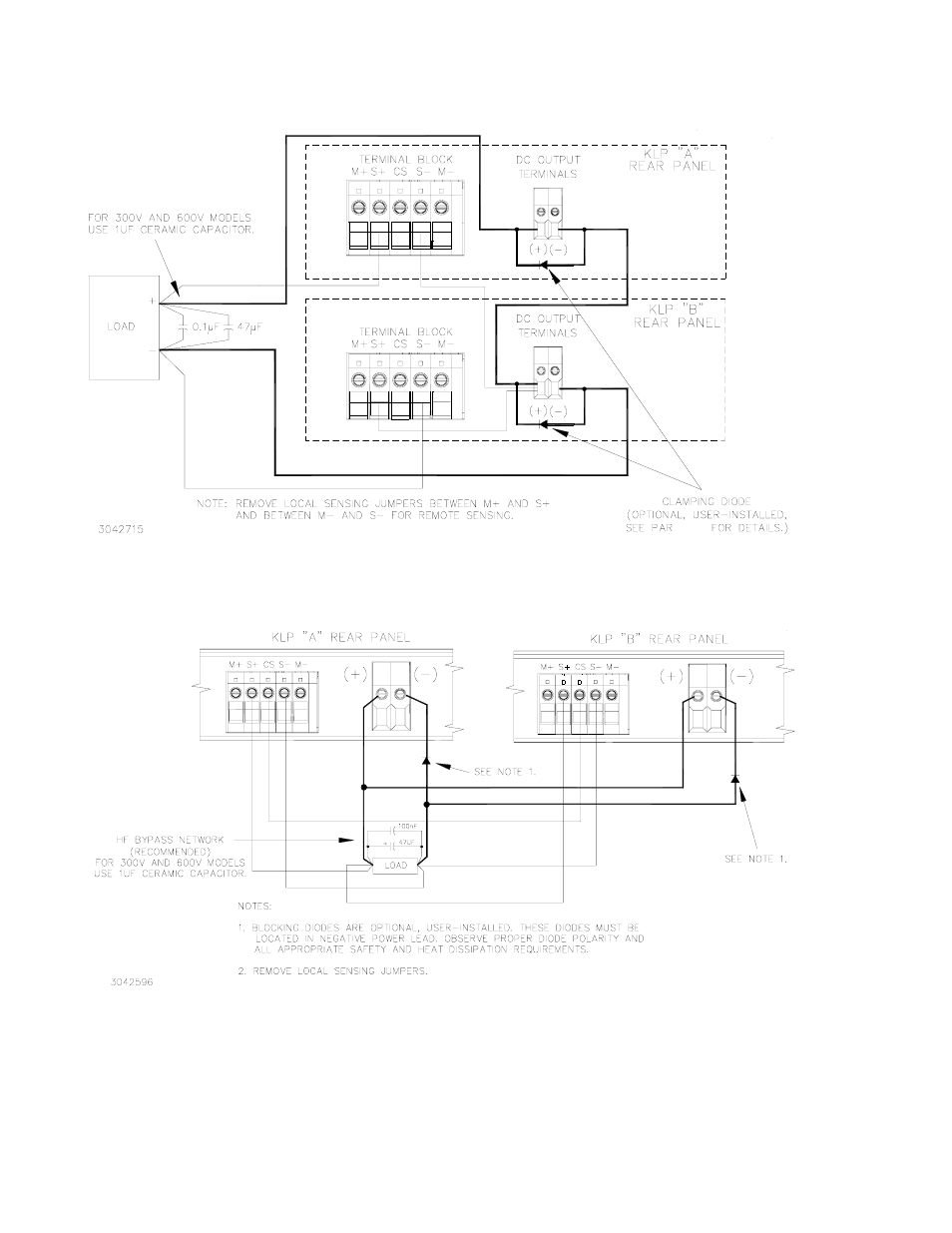

FIGURE 2-4. SERIES CONNECTION USING REMOTE SENSING

FIGURE 2-5. PARALLEL CONNECTIONS USING REMOTE SENSING
