RAM500 Memory Expansion Module
MVME51005E Single Board Computer Installation and Use (6806800A38D) 81

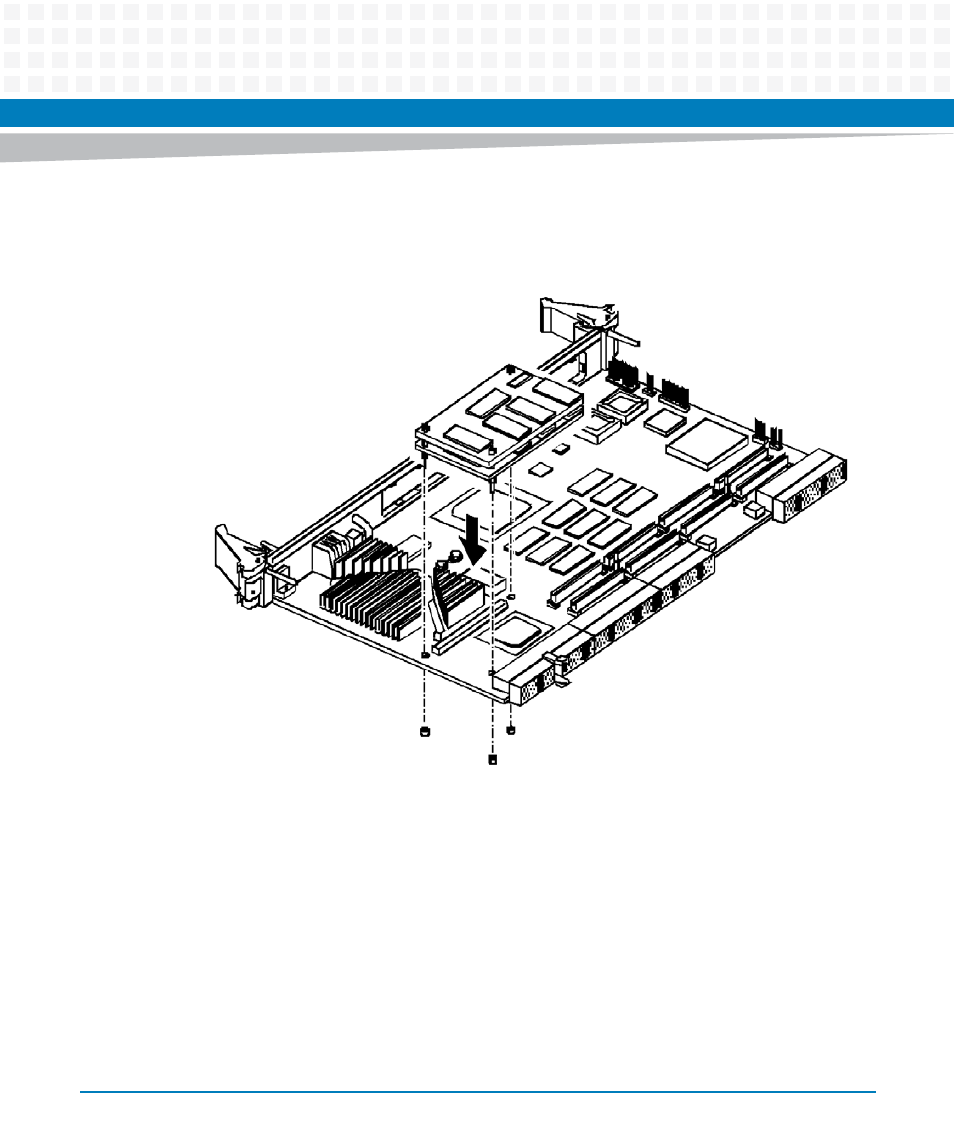

5. With standoffs installed in the three mounting holes on the RAM500 module, align the
standoffs and the P1 connector on the module with the three holes and the J16 connector
on the MVME5100 host board and press the two connectors together until they are firmly
seated in place.
6. (Optional step) If a second RAM500 module is being used, align the top connector on the
bottom RAM500 module with the bottom connector on the top RAM500 module and
press the two connectors together until the connectors are seated in place.
7. Insert the three short Phillips screws through the holes at the corners of the RAM500 and
screw them into the standoffs.
8. Turn the entire assembly over, and fasten the three nuts provided to the standoff posts on
the bottom of the MVME5100 host board.
