Programming the MVME5100
MVME51005E Single Board Computer Installation and Use (6806800A38D) 123
The Winbond W83C554 PIB device supplies the PCI arbitration support for these seven types
of devices. The PIB supports flexible arbitration modes of fixed priority, rotating priority and
mixed priority, as appropriate in a given application. Details on PCI arbitration can be found in
the MVME5100-Series Single Board Computer Programmer’s Reference Guide.

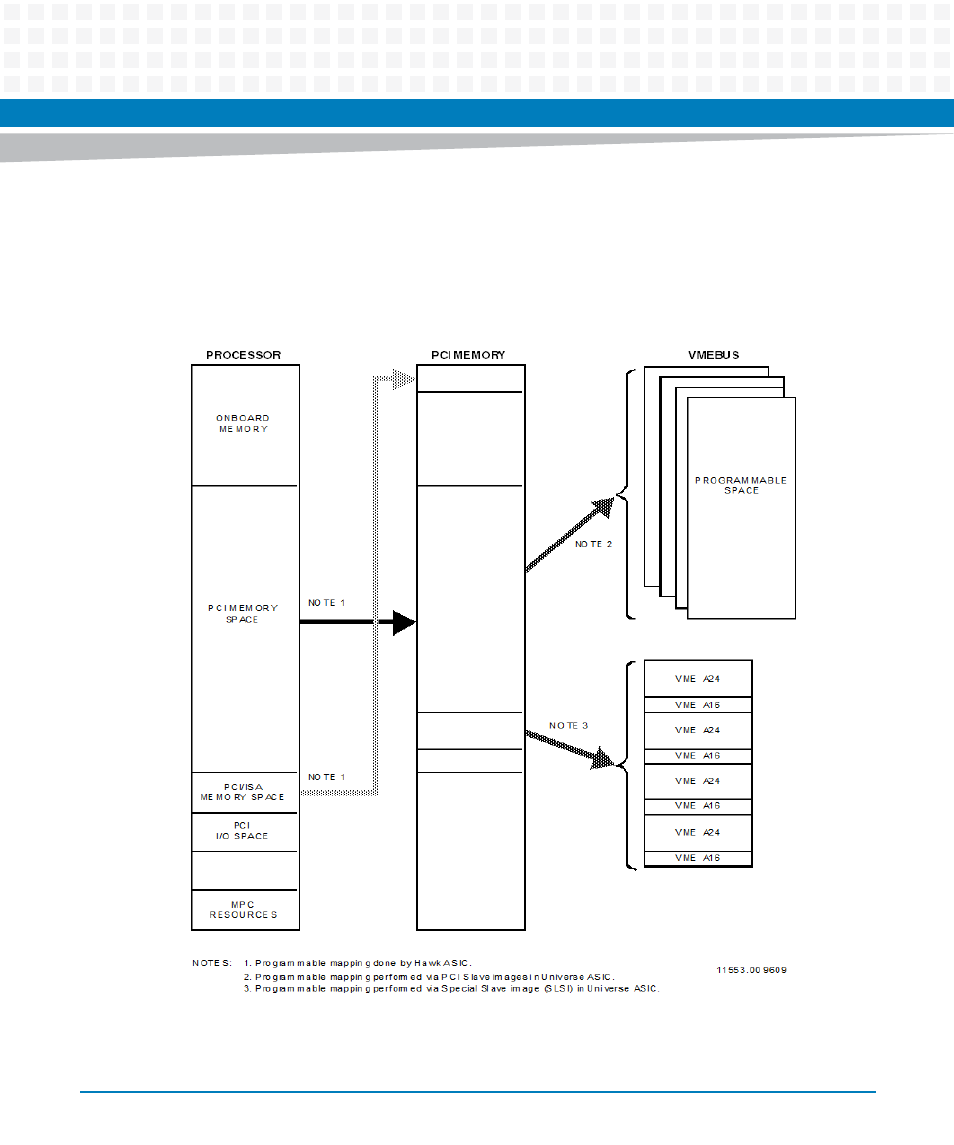

Figure 7-1 VMEbus Master Mapping
