Hardware Preparation and Installation

MVME51005E Single Board Computer Installation and Use (6806800A38D)

29

5. Align the PMC module’s mating connectors to the MVME5100’s mating connectors and

press firmly into place.

6. Insert the appropriate number of Phillips screws (typically 4) from the bottom of the

MVME5100 into the standoffs on the PMC module and tighten the screws (refer to

Figure

1-2

)

Figure 1-2

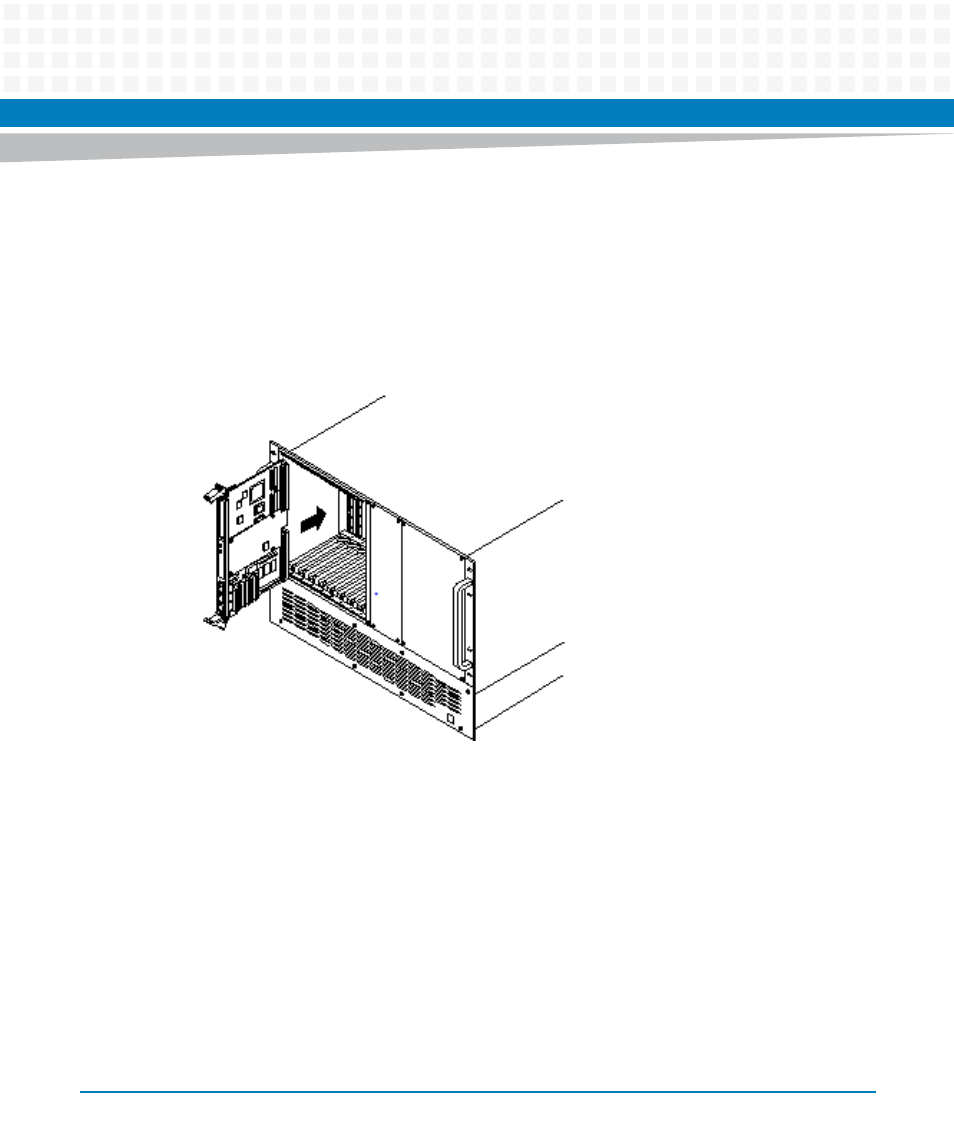

MVME5100 Installation and Removal From a VMEbus Chassis
