Hardware Preparation and Installation
MVME51005E Single Board Computer Installation and Use (6806800A38D) 25
1.2.2 Jumper Settings
Prior to performing the installation instructions, you must ensure that the jumpers are set
properly for your particular configuration. For example, if you are using an IPMC761/MVME761
or IPMC712/MVME712 combination in conjunction with the MVME5100, you must reset the
jumpers for the SBC mode (jumpers J4, J6, J10, J17 and J20). These are factory configured for
the PMC mode. Verify all settings according to the previous table and follow the instructions
below if applicable.

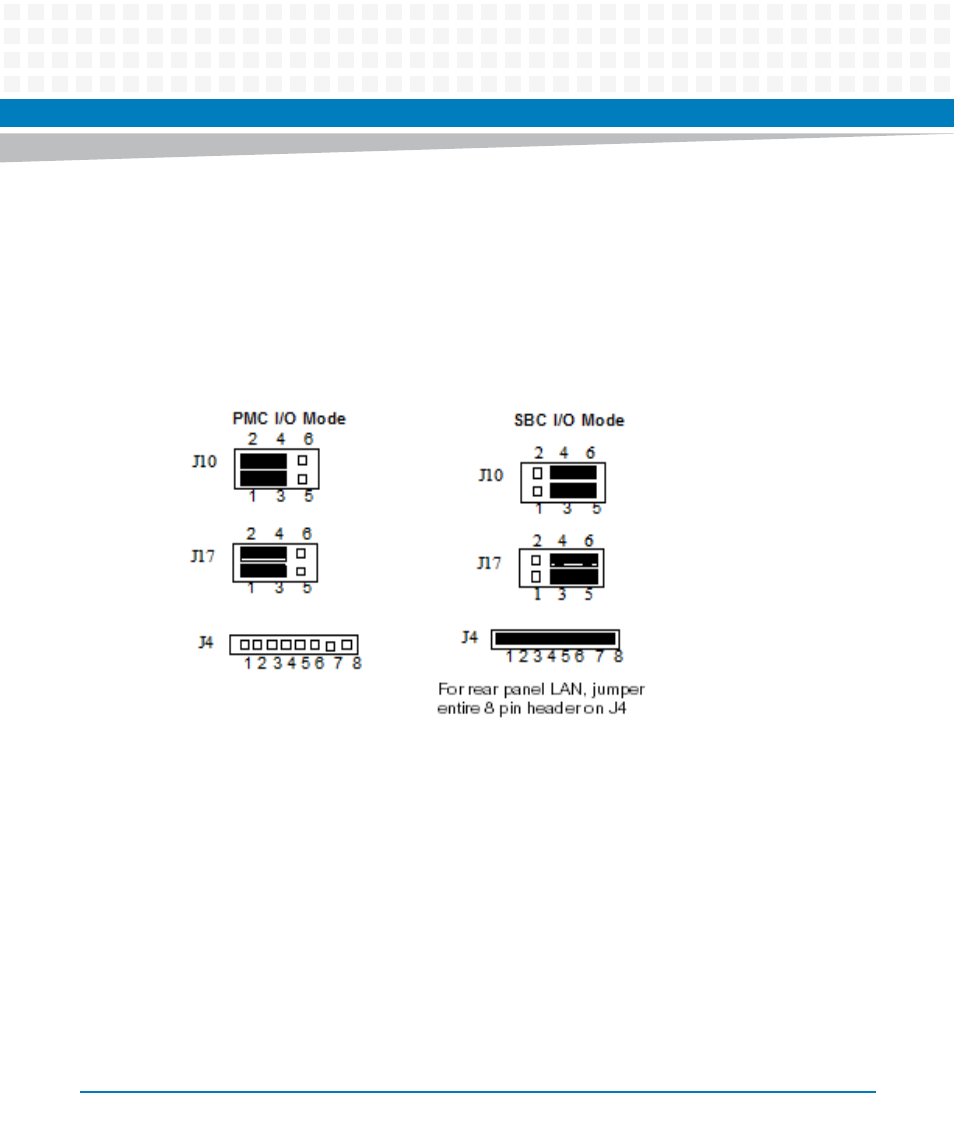

1.2.2.1 PMC/SBC (761/IPMC) Mode Selection
There are five headers associated with the selection of the PMC or SBC mode: J4, J6 J10, J17 and
J20. Three of these headers are responsible for secondary Ethernet I/O (J4, J10 and J17) to either
the front panel (PMC mode), or to the P2 connector via J4 (SBC mode). The other two headers
(J6 and J20) ensure proper routing of +/- 12V signal routing. The MVME5100 is set at the factory
for front panel I/O: PMC mode (see Table 1-1). The SBC mode should only be selected when
using one of the IPMC-7xx modules in conjunction with the corresponding MVME7xx transition
module.
