4.12 Reset Structure

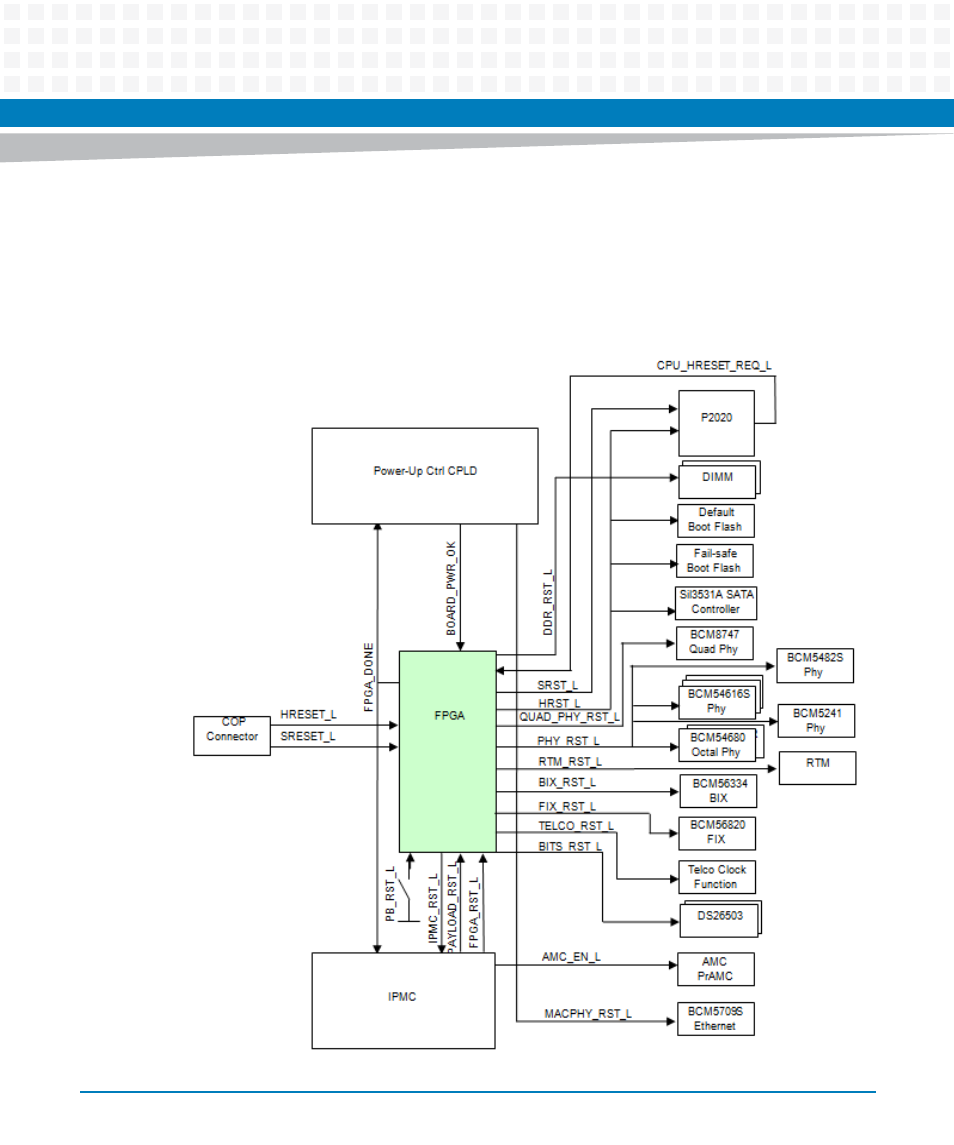

The reset structure for the ATCA-F125 is controlled by the FPGA. The block diagram below
shows the reset structure of the ATCA-F125.

Figure 4-14 Reset Structure Block Diagram
