Functional Description

ATCA-F125 (6873M Artwork) Installation and Use (6806800J94J)

90

4.11.1 Telecom Clocking Subsystem

This section shows an overall block diagram of the telecom clocking subsystem. Later sections
elaborate on the functionality of each block.

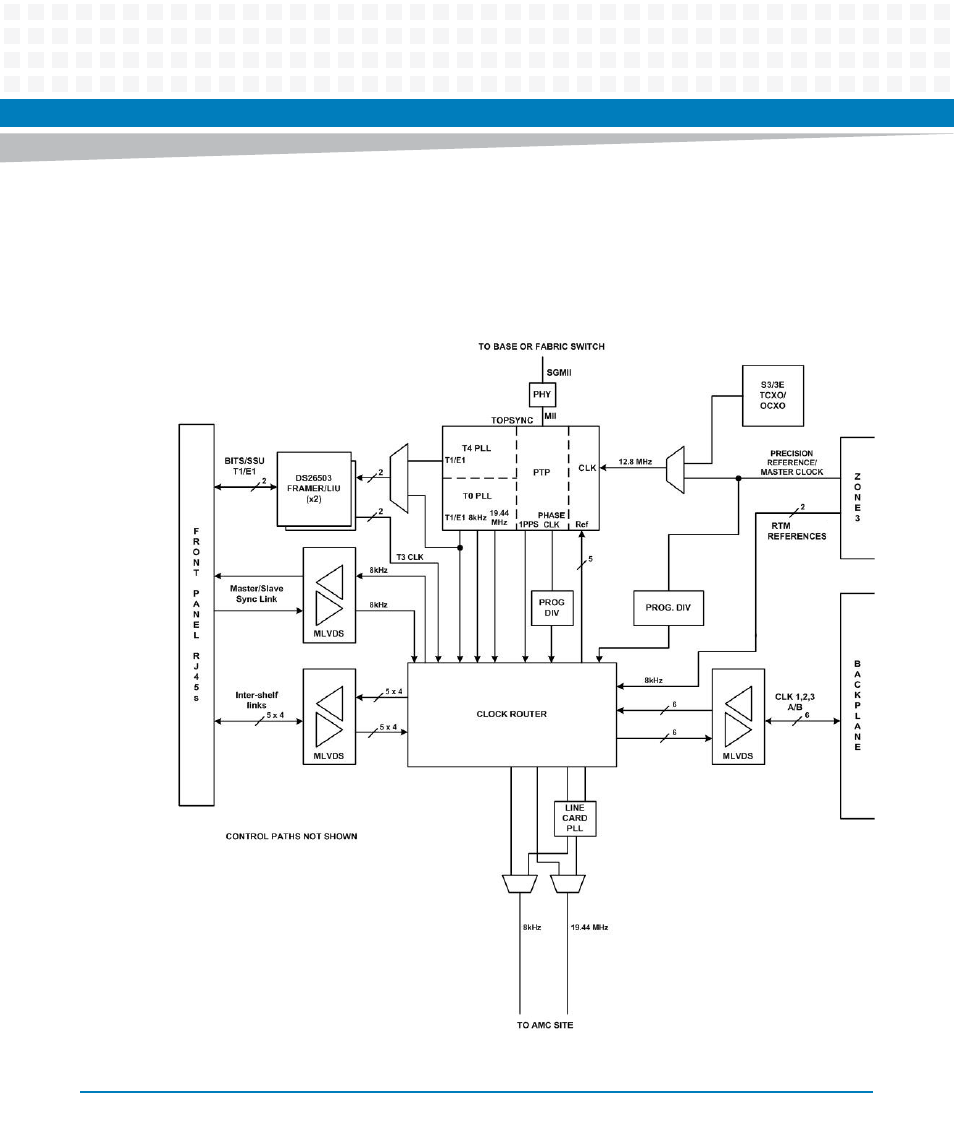

Figure 4-12 Telecom Clocking Subsystem
