2 sas/sata connector, 3 embedded usb connector, 2 sas/sata connector 3.7.3 embedded usb connector – Artesyn ATCA-F125 Installation and Use Guide (April 2014) User Manual

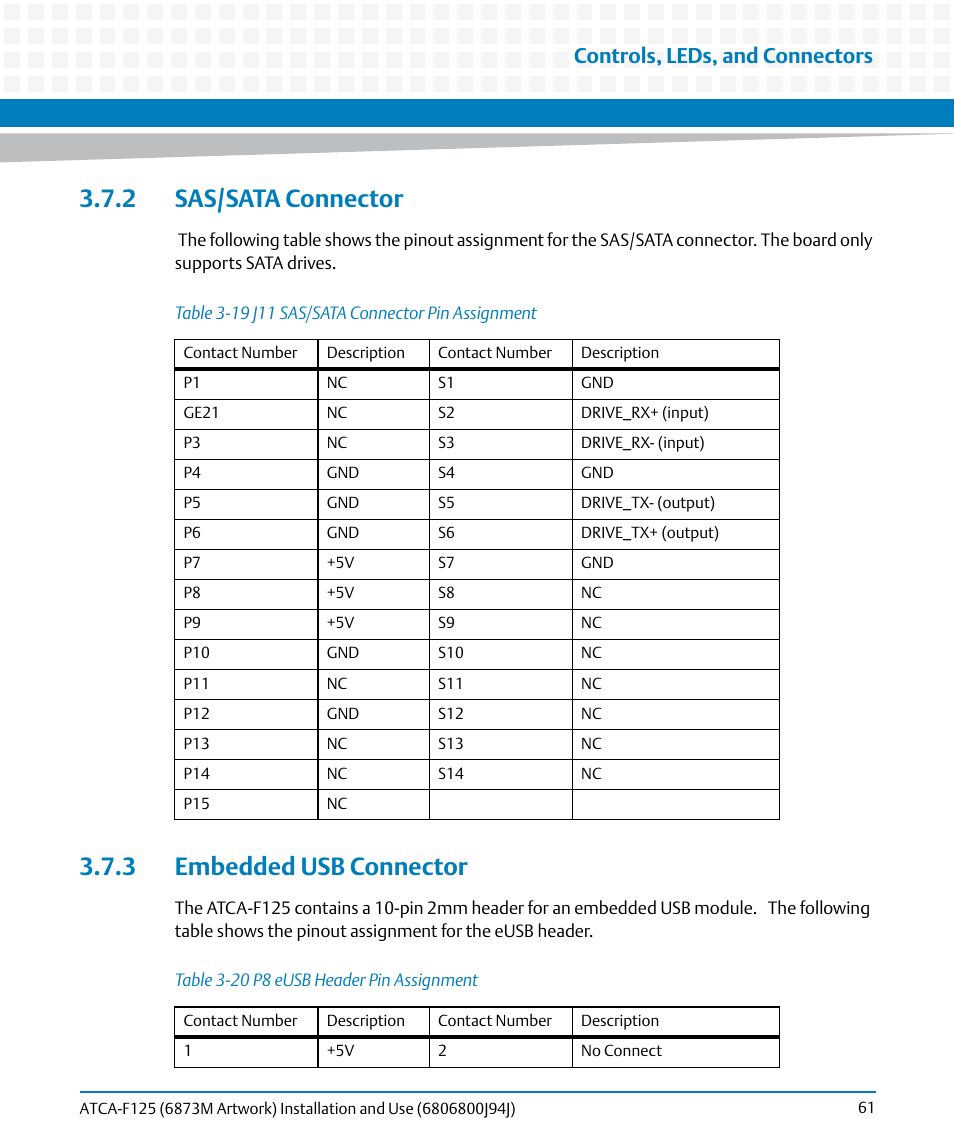

Page 61: Table 3-19, J11 sas/sata connector pin assignment, Table 3-20, P8 eusb header pin assignment, Controls, leds, and connectors

Text mode
Original mode

2 sas/sata connector, 3 embedded usb connector, 2 sas/sata connector 3.7.3 embedded usb connector | Table 3-19, J11 sas/sata connector pin assignment, Table 3-20, P8 eusb header pin assignment, Controls, leds, and connectors | Artesyn ATCA-F125 Installation and Use Guide (April 2014) User Manual | Page 61 / 138
