Trace Route Configuration
Trace Route Configuration

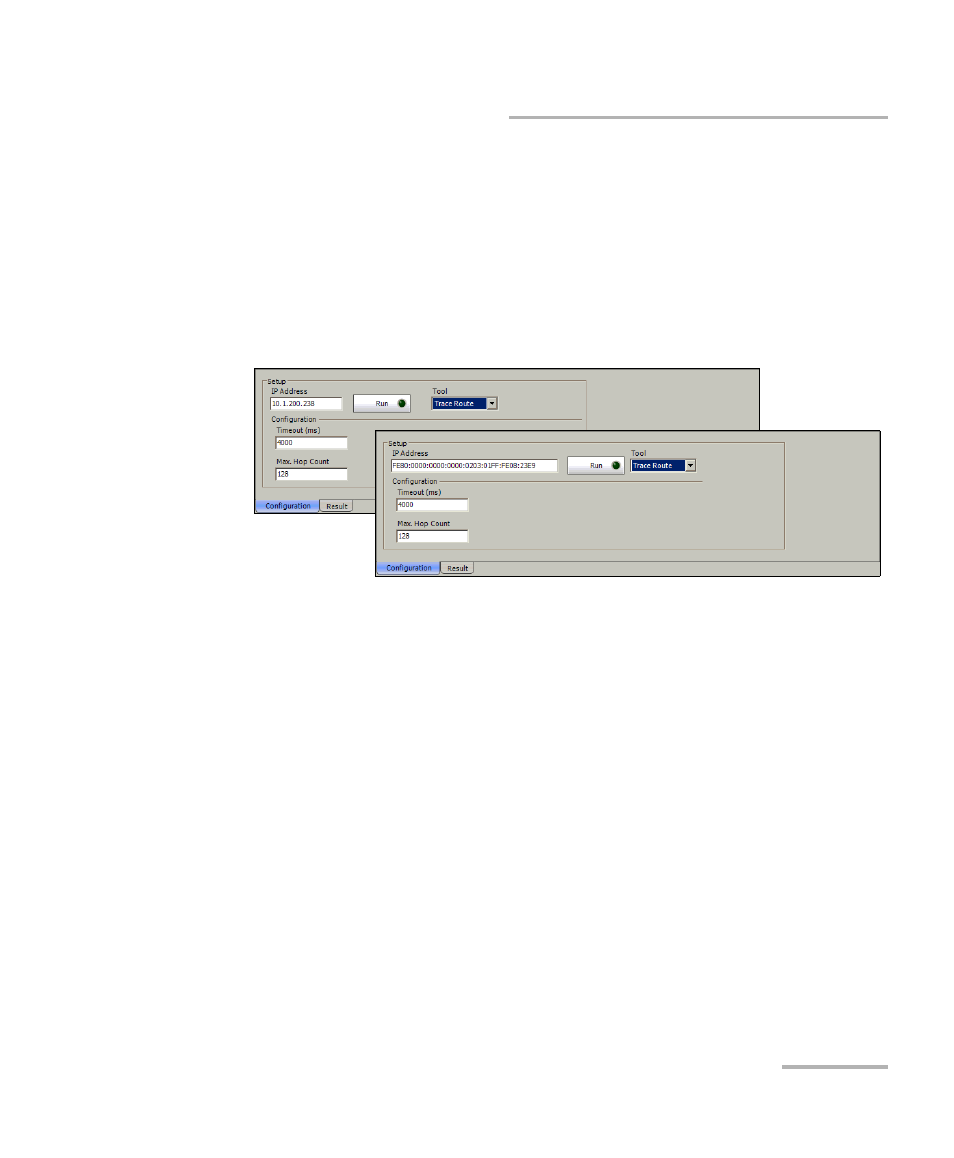

Trace Route is used to obtain the list of all routers identified between the
local port (IQS-8500 Series and IQS-8120NGE/8130NGE) and the destination
IP port.
Press Tools, Configuration, and in the Tool List, press Trace Route.
For Ping, see Ping Configuration on page 396.
Setup
IP Address: Enter the IP address of the network device to be detected.
The IP address version is as per the version selected during the test
setup.
Run: Press Run to start the Trace Route command.
Configuration
Timeout (ms): Enter the maximum time allowed between an ICMP
echo and response at each hop. Choices are 200 ms to 10000 ms. The
default setting is 4000 ms.
Max Hop Count: Enter the maximum network device the packet is
allowed to go through. Choices are 1 to 255. The default setting is 128.
