Stream Generation Tabs
202
FTB-8500 Series and FTB-8120NGE/8130NGE
Overview
Overview

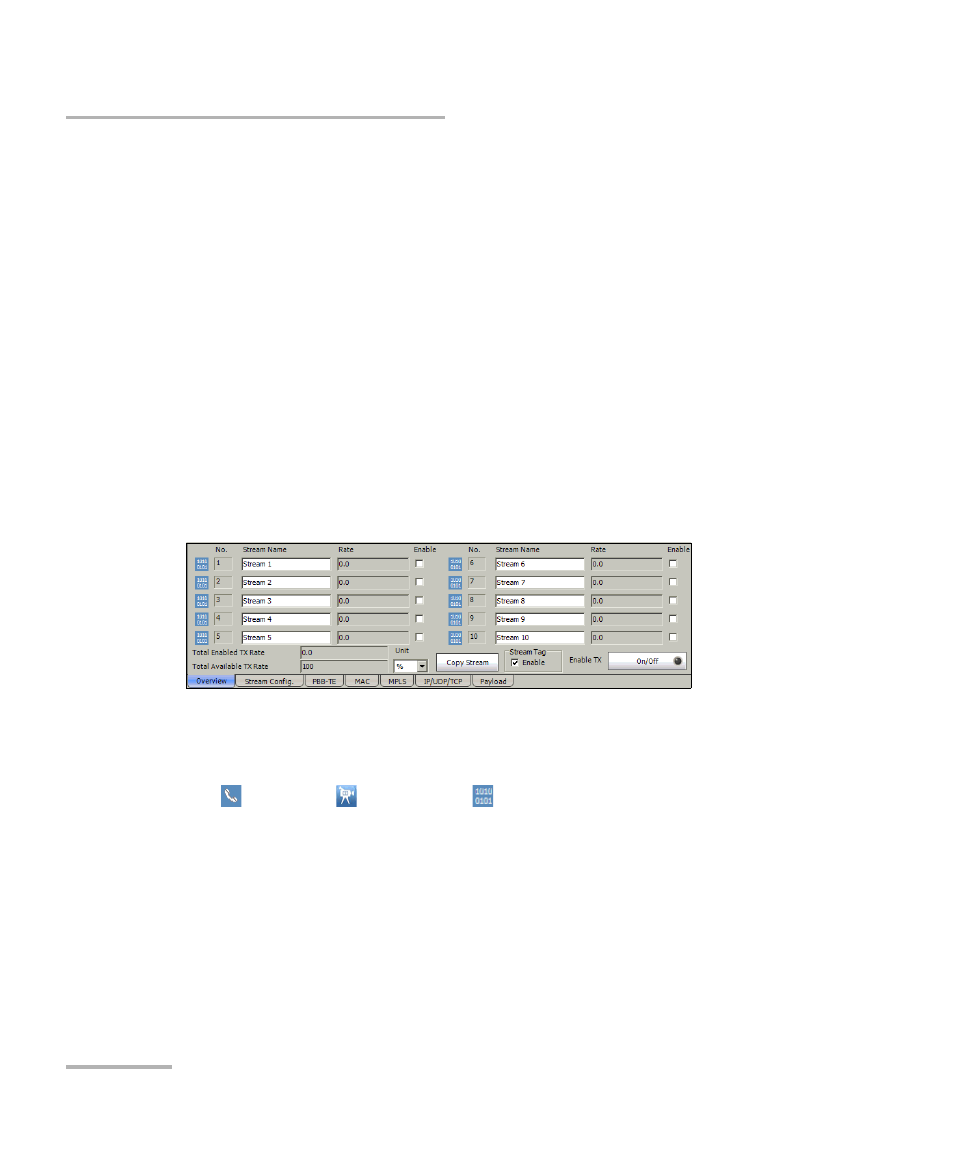

The Overview tab allows configuration and activation of up to 10 streams
for Frame Analyzer test, and only one for RFC 2544 and BERT Ethernet
tests.
Press TEST, Stream Gen, and Overview.
For Frame Analyzer test, see below.
For BERT and RFC 2544 tests on IQS-8510B and IQS-8510G, see page
205.
For BERT and RFC 2544 tests on IQS-8120NGE, IQS-8130NGE,
IQS-8525, and IQS-8535, see page 206.
For Frame Analyzer test
Note: The stream configuration is reset when the test is cleared.
The icon in front of the stream No indicates the selected stream profile;
for voice,
for video, or
for data.
No: Indicates the stream identification number.
Stream Name: Shows the stream name. Press the stream name field to
change the name of the stream. Up to 16 characters are allowed. The
default stream names are Stream 1 to Stream 10.
Rate: Indicates the stream rate. The rate is calculated according to the
configured traffic shaping (from Transmit Mode and TX Rate fields on
page 215).
