Creating and Starting a Test Case
Ethernet and Fibre Channel Application 103
Ethernet Frame Analyzer Test Case

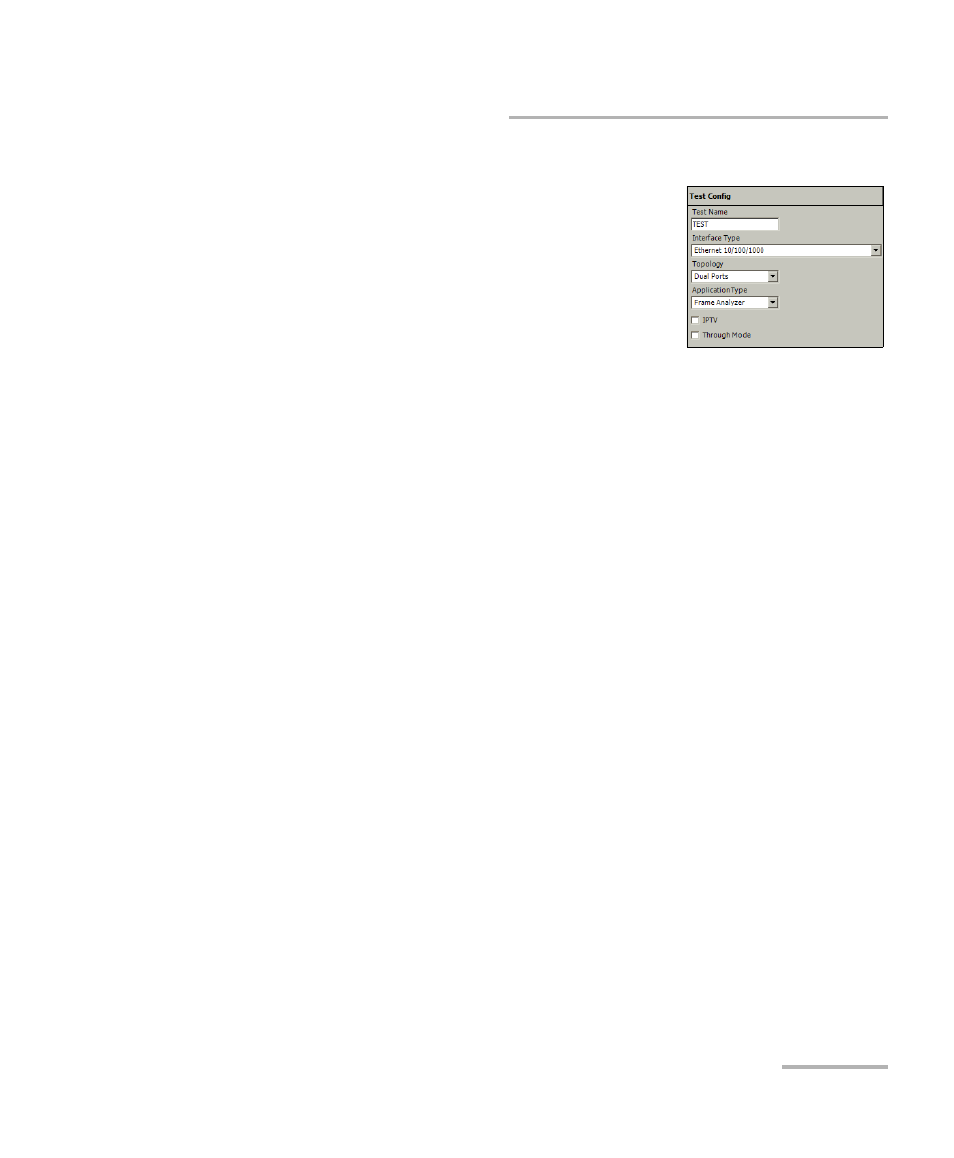

To create a Frame Analyzer test case:
1. Test configuration:
1a. Select Ethernet 10/100/1000 or
Ethernet 10G as the Interface Type.
Interface Type is not available with
IQS-8510G.
1b. For IQS-8510B: Select the Topology test
type: Single Port or Dual Ports.
1c. Select Frame Analyzer as the Application Type.
1d. Select the IPTV (Internet Protocol Television) check box to give
access to the IPTV testing capability. IPTV is a software option
available on IQS-8510B only and needs to be enabled to be
available (refer to Software Options on page 380). IPTV testing is
always performed on Port 1. PBB-TE and MPLS testing
capabilities are not available when the IPTV check box is selected
and vice versa. The IPTV check box is cleared by default.
1e. Select the Through Mode check box to enable Ethernet
bi-directional in-line traffic monitoring between two end points in
a non-intrusive manner using both IQS-8510B test ports. Stream,
alarm and error generation as well as Ping and Trace Route
capabilities are not supported. Through Mode is a software
option available on IQS-8510B only and needs to be enabled to be
available (refer to Software Options on page 380). Through Mode
testing is only available in Dual Ports topology. The Through
Mode check box is cleared by default.
1f. Press Next.
