Electrical rx, Alarm analysis – EXFO IQS-8500 Series for IQS-600 User Manual
Page 150
Port Tabs
136
FTB-8500 Series and FTB-8120NGE/8130NGE

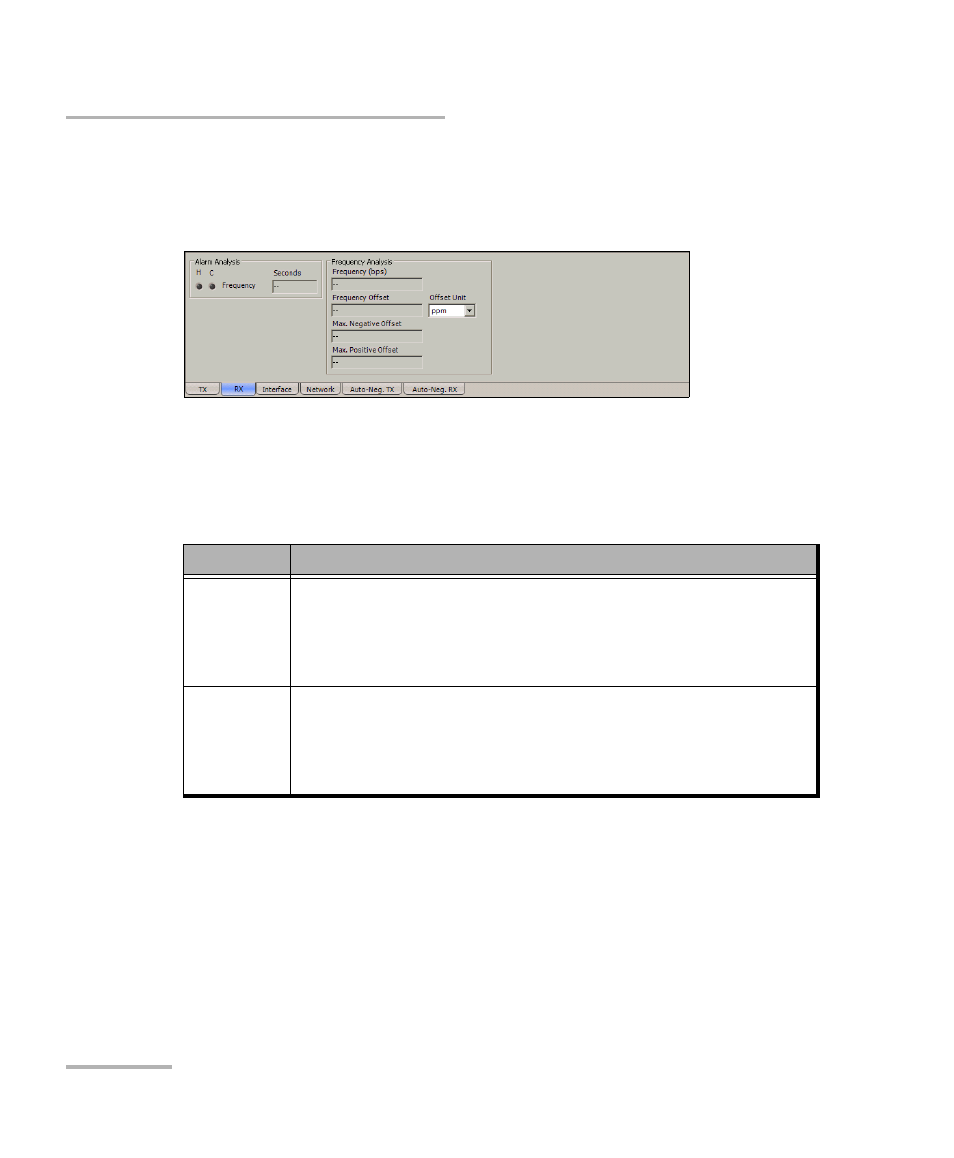

Electrical RX
Electrical RX
Press TEST, Port, and Electrical RX.
Alarm Analysis
Frequency: The frequency alarm indicates if the received signal rate meets
the standard rate specifications (green) or not (red).
Interface
Standard Rate Specification
100Base-T For IQS-8510B:
125000000 bps ±12500 bps (±100 ppm)
For IQS-8120NGE/IQS-8130NGE and IQS-8525/IQS-8535:
125000000 bps ±15000 bps (±120 ppm)
1000Base-T For IQS-8510B:
1250000000 bps ±125000 bps (±100 ppm)
For IQS-8120NGE/IQS-8130NGE and IQS-8525/IQS-8535:
1250000000 bps ±150000 bps (±120 ppm)
