Payload, Stream no, Pattern – EXFO IQS-8500 Series for IQS-600 User Manual
Page 242
Stream Generation Tabs
228
FTB-8500 Series and FTB-8120NGE/8130NGE
Payload
Payload
Note: For IQS-8510B and IQS-8510G, not available with BERT test. For
IQS-8120NGE/IQS-8130NGE and IQS-8525/IQS-8535, only available with
Frame Analyzer test. Not available when the Stream Tag (Frame Analyzer)
check box is selected; in this case a PRBS is used as the payload..

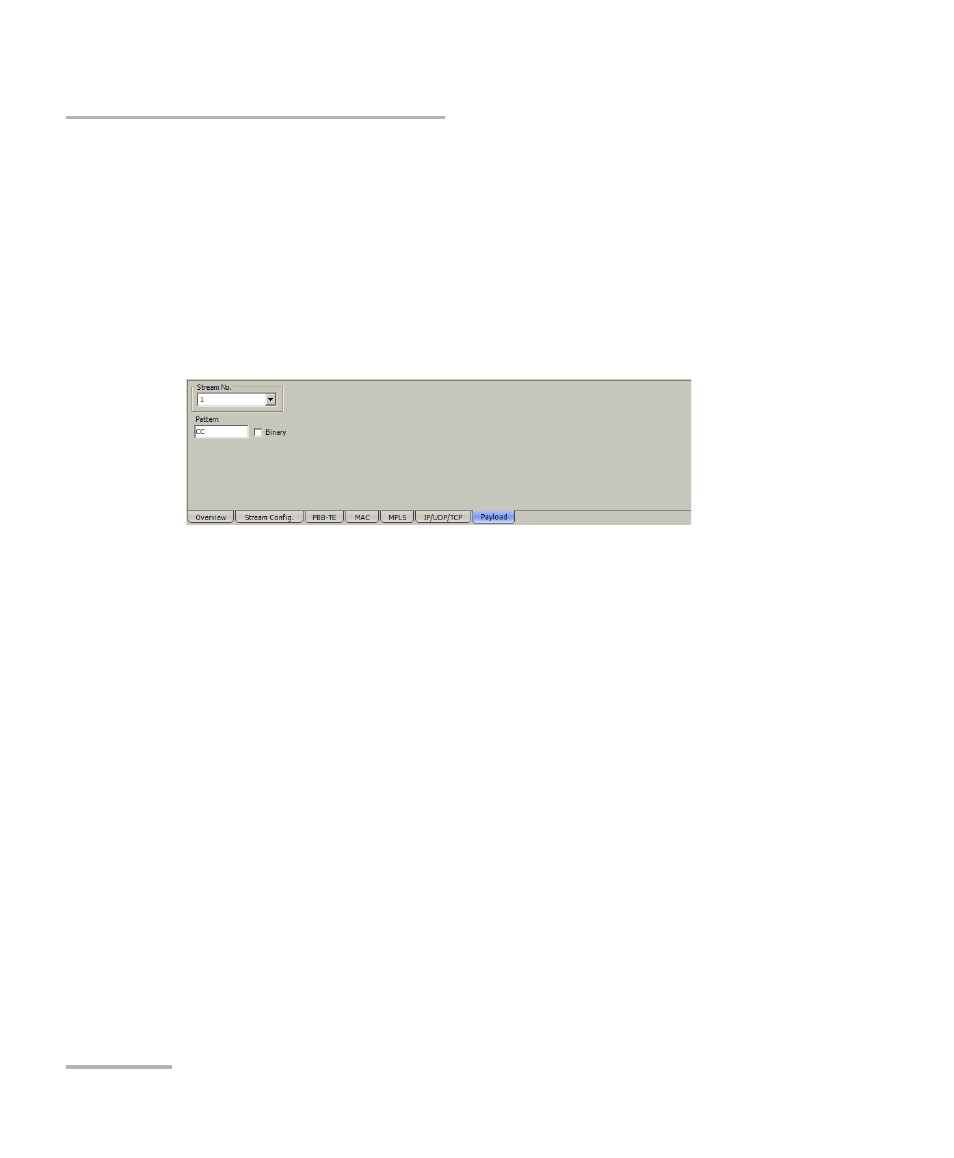

Press TEST, Stream Gen, and Payload.
Stream No.
For Frame Analyzer test, select the stream number from the list. Only
stream number 1 is available for RFC 2544 and BERT tests.
Pattern
Pattern: Allows the selection of the test pattern that will be repeated
inside the entire data payload. Choices are 00 to FF. The default setting
is CC.
Binary: The pattern will automatically be converted in binary or in
hexadecimal when enabling/disabling Binary.
