Auto Tests

Copper, VDSL2, ADSL2+ and IP Triple-Play Test Set

71

Running Video-DSL Rate Prediction Tests and Viewing Results

³

Target SNR is the desired signal-to-noise ratio ranging from 0 to 31 dB.
Default value is 6 dB.

³

Recalculate button allows you to change the setup and re-evaluate the
rates.

To re-set parameters to view different results:
1.
Press the up/down or left/right arrow keys to highlight the desired

parameter.

2. Press

to display the list or select the value.

3. Press the up/down arrow keys to highlight the desired value.

OR

4. Press the left arrow key to erase the existing value, and then use the

alphanumeric keypad to enter a value. To cancel the entry, press

.

5. Press

to accept the value.

6. Press the up/down arrow keys to highlight the Recalculate button.

7. Press

to recalculate rates for the new setup.

Multi-meter Tests

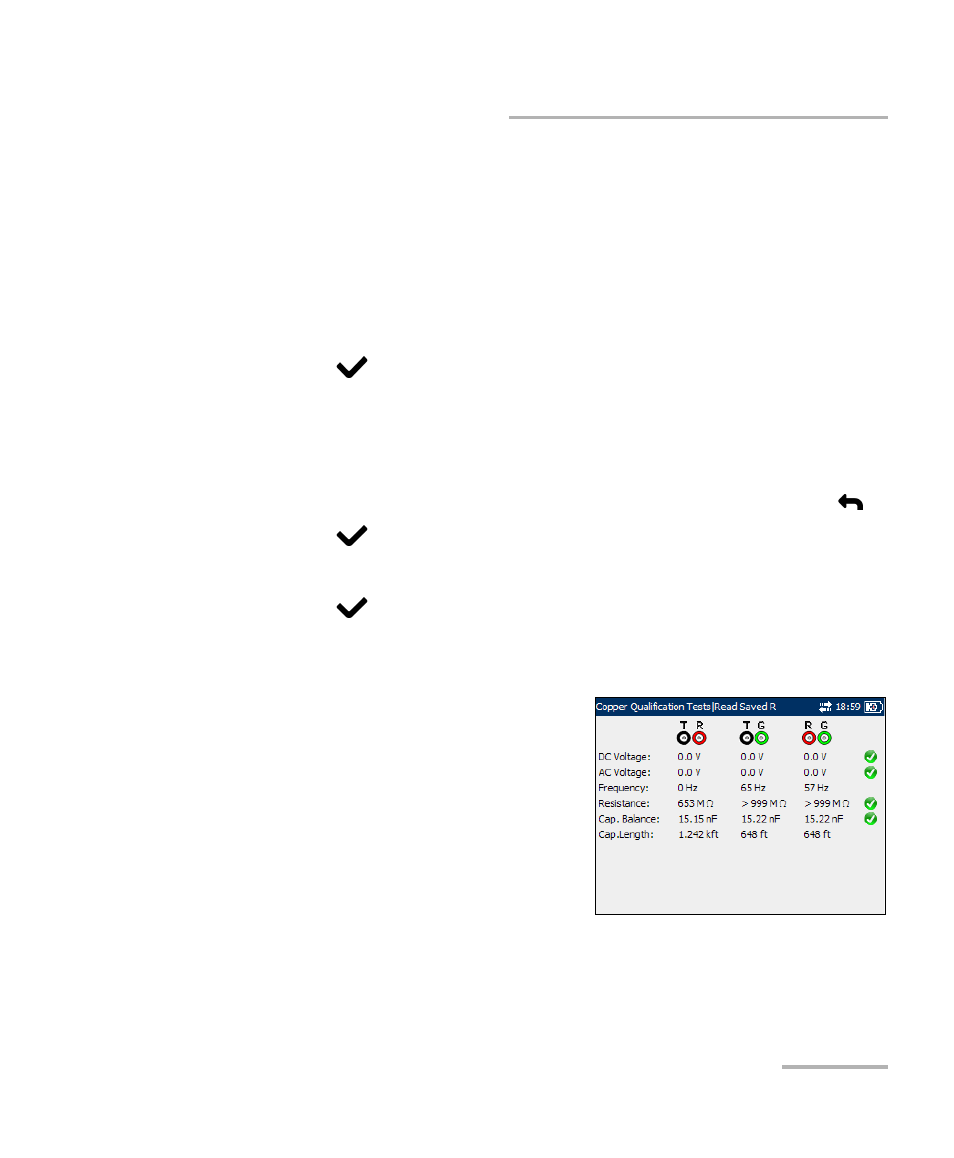

The multi-meter tests results pane
displays the measured values on tip,
ring, and ground, and the pass/fail
status of each digital multi-meter test.
