Copper, VDSL2, ADSL2+ and IP Triple-Play Test Set

105

7

Fault Location

Fault Location is used to locate faults in the loop. The AXS-200/635i uses
the following types of fault location tests:

³

TDR

³

RFL Single Pair (2 wire)

³

RFL Separate Good Pair (4 wire)

³

Loop Mapper

To access Fault Location tests:
1.
From the Home pane, highlight Fault Location and press

to list the

available tests.

OR

2. From the Home pane use the up/down arrow keys to highlight Fault

Isolation Tools and press

.

3. Highlight Fault Location and press

to list the available tests.

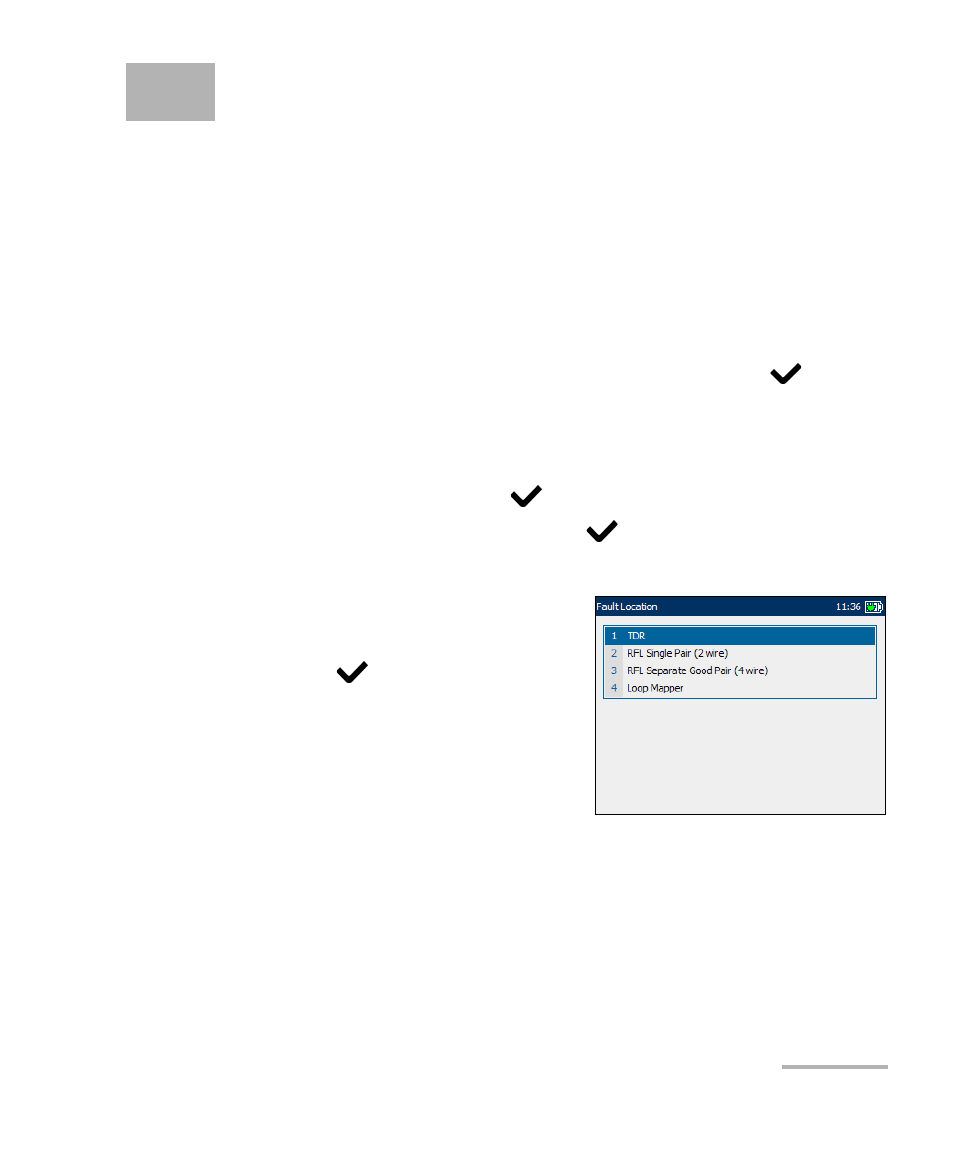

To run and view fault location test panes or tabs:
1.
From the Fault Location pane use

the up or down arrow keys to
highlight the desired test, then
press .

2. Press the F1, F2, or F3 key to view

available tabs. To view any
available additional tabs, use the
function arrow keys on either side
of the F1 and F3 keys.
