Auto Tests

Copper, VDSL2, ADSL2+ and IP Triple-Play Test Set

59

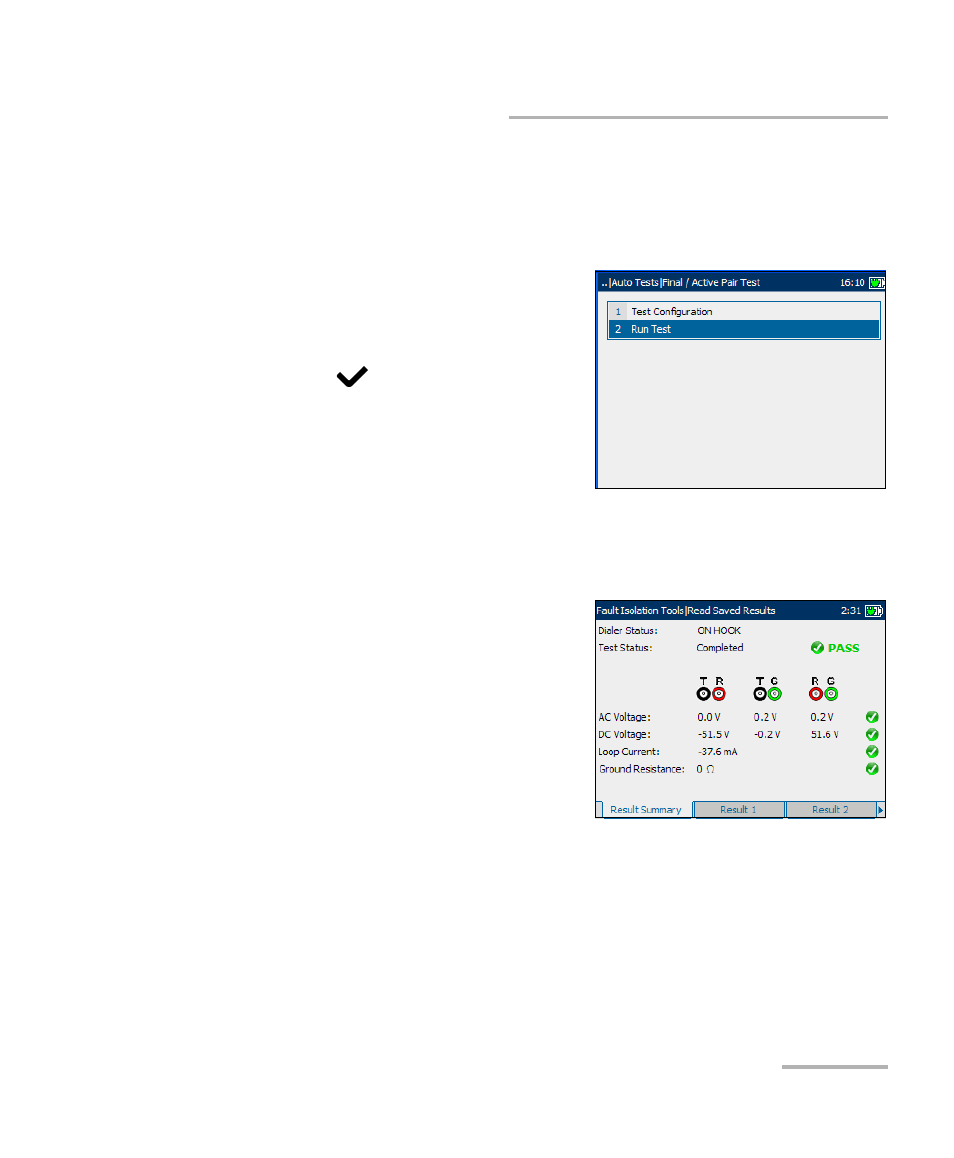

Running Final/Active Pair Test and Viewing Results

Running Final/Active Pair Test and Viewing

Results

Results details are located on the Final/Active Pair Test pane tabs.

To run the tests and view results:
1.
From the Final/Active Pair Test

pane use the up/down arrow keys
to highlight Run Test, and
press

.

2. Press the F1, F2, or F3 key to view

the various tabs. To view any
available additional tabs, use the
function arrow keys on either side
of the F1 and F3 keys.

Result Summary

The Result Summary tab displays a
summary of the measured voltage and
current values, and pass/fail status of
the Final/Active Pair tests.

³

Dialer Status displays the current
status of the Dialer such as
ON HOOK, OFF HOOK, DIAL
TONE DETECTED
, and DIALING.

³

Ground Resistance displays the
measurement result value in Ohm, comparing the customer protector
ground resistance to an active central office pair. If an incorrect leads
connection is detected, Check Leads is displayed.
