Auto Tests

68

AXS-200/635i

Running Video-DSL Rate Prediction Tests and Viewing Results

Running Video-DSL Rate Prediction Tests and

Viewing Results

Details of the video-data rate prediction results are located on the
Video-DSL Rate Prediction pane tabs.

To run the tests and view results:
1.

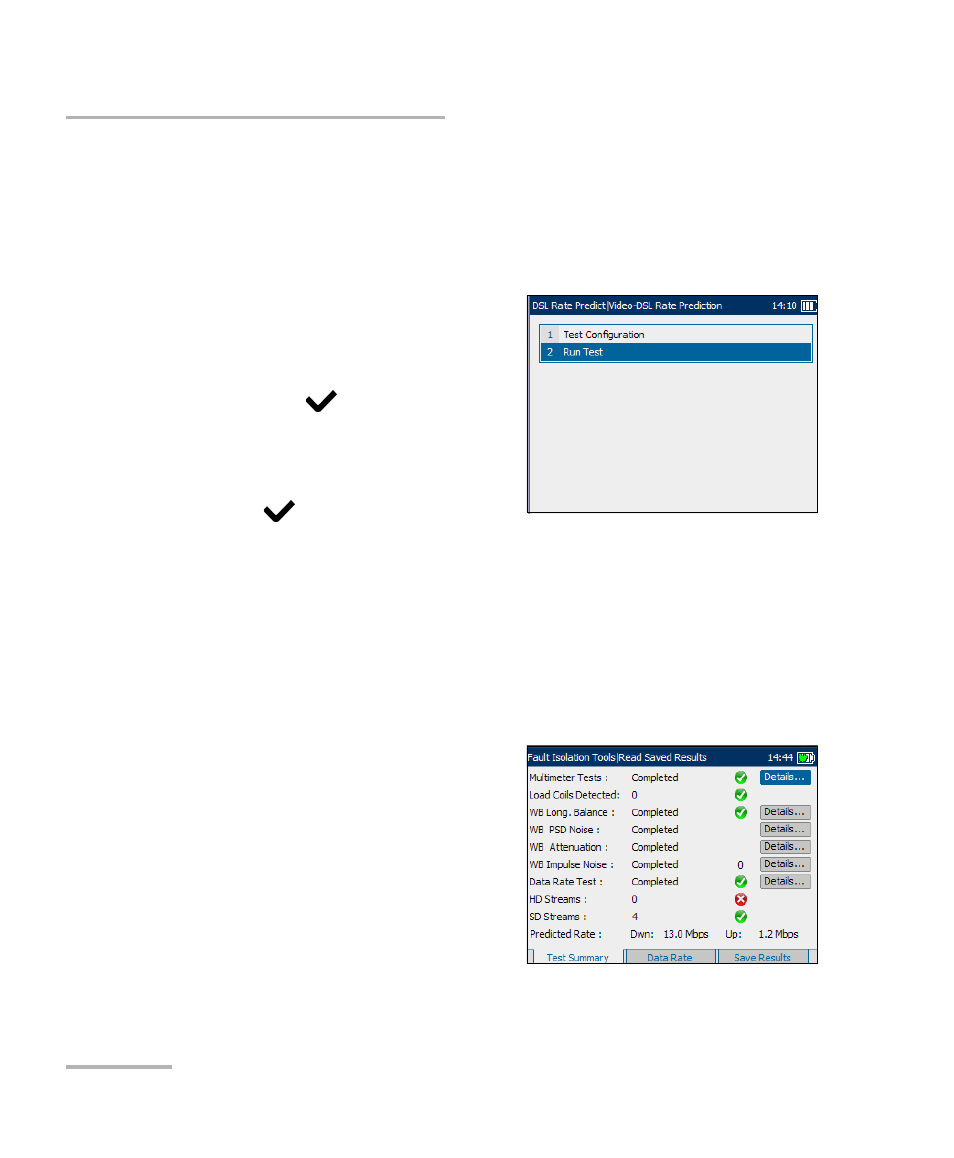

From the Video-DSL Rate

Prediction pane use the up/down
arrow keys to highlight Run Test,
and press

.

2. Once the tests are completed,

highlight the Details button from
the Test Summary pane and
press

to view the results.

3. Press the F1, F2, or F3 key to view the various tabs. To view any

available additional tabs, use the function arrow keys on either side of
the F1 and F3 keys.

Test Summary

The Test Summary tab allows you to view the pass/fail status and Details
of all tests configured for auto testing.

The available test results are the
following:

³

Multi-meter Tests or digital
multi-meter tests detect AC/DC
voltages, and measure frequency,
resistance and capacitance for the
copper wire connection.

³

Load Coils Detected is the
number load coals detected in
the line.
