Auto Tests

56

AXS-200/635i

Configuring Final/Active Pair Test

To set parameter values:
1.
Press the up/down arrow keys to highlight the desired parameter.

2. Press

to display the list or select the value.

3. Press the up/down arrow key to highlight the desired value.

OR

4. Press the left arrow key to erase the existing value, and then use the

alphanumeric keypad to enter a value. To cancel the entry, press

.

5. Press

to accept the value.

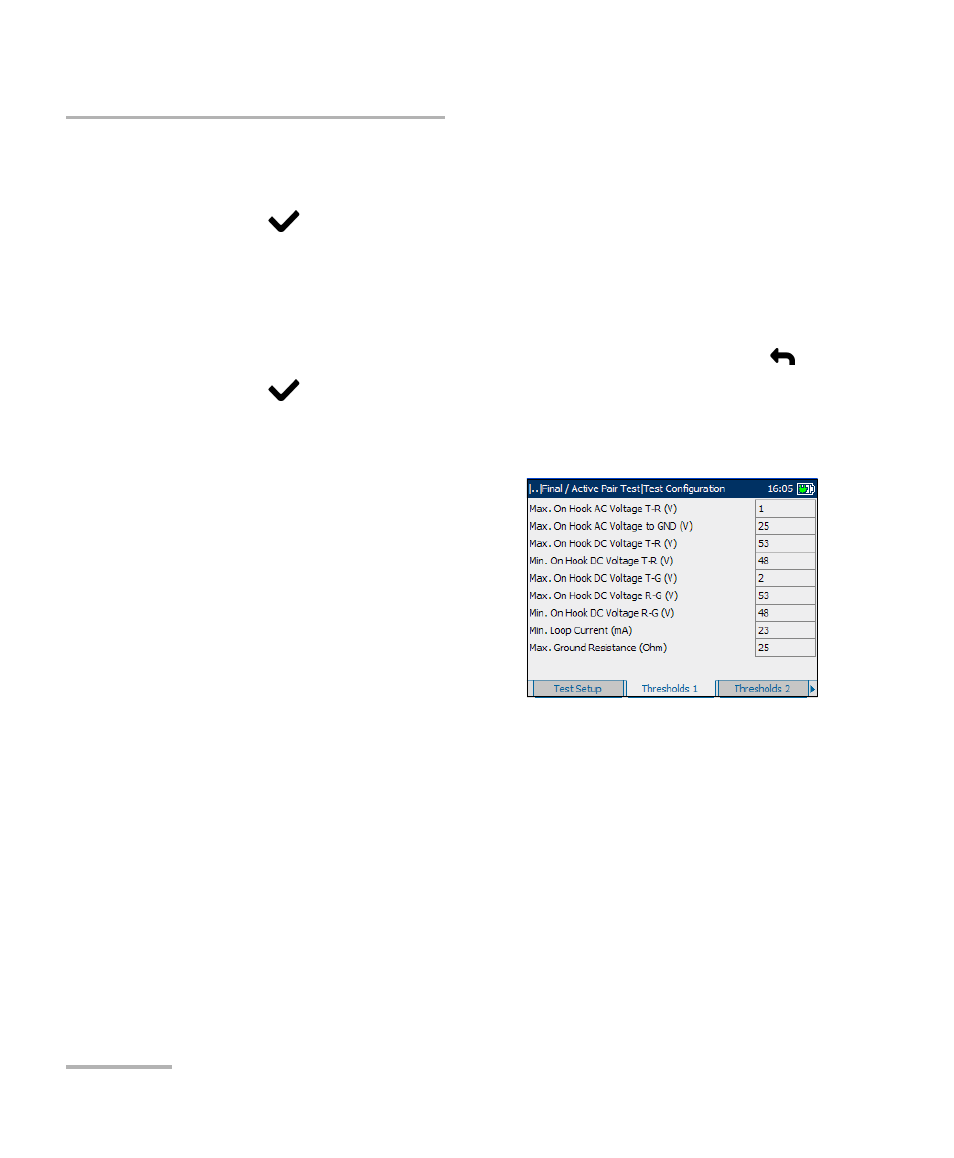

Thresholds 1

The Thresholds 1 tab displays the
threshold parameters for the
Final/Active Pair Test. They are part of
the CQ profile and cannot be edited on
this pane.

The parameters are described below:

³

Max. On Hook AC/DC Voltage are
the maximum AC/DC threshold
voltage values for the circuit.

³

Min. Loop Current (mA) is the minimum loop current for the circuit
in mA.

³

Max. Ground Resistance (Ohm) is the maximum ground resistance
in Ohm.

Note: The Ground Resistance function only works with central offices with the tip

connected to ground.
