 Neuron 5000 for a Router 5000
 FT 5000 for an FT Router 5000
• Clock Multiplier: 2 (Recommended)
Important: If the other router-half uses a Series 3100 chip, do not
specify a value higher clock multiplier value than 2. You can specify a
value of 4 if both sides are Series 5000 router chips. Do not specify a
value of 8.
• System image version: Ver19
• Memory – Extended non-volatile: None
• Extended on-chip RAM: 0x8000 – 0xE7FF
• All other memory options: (Leave as default values)

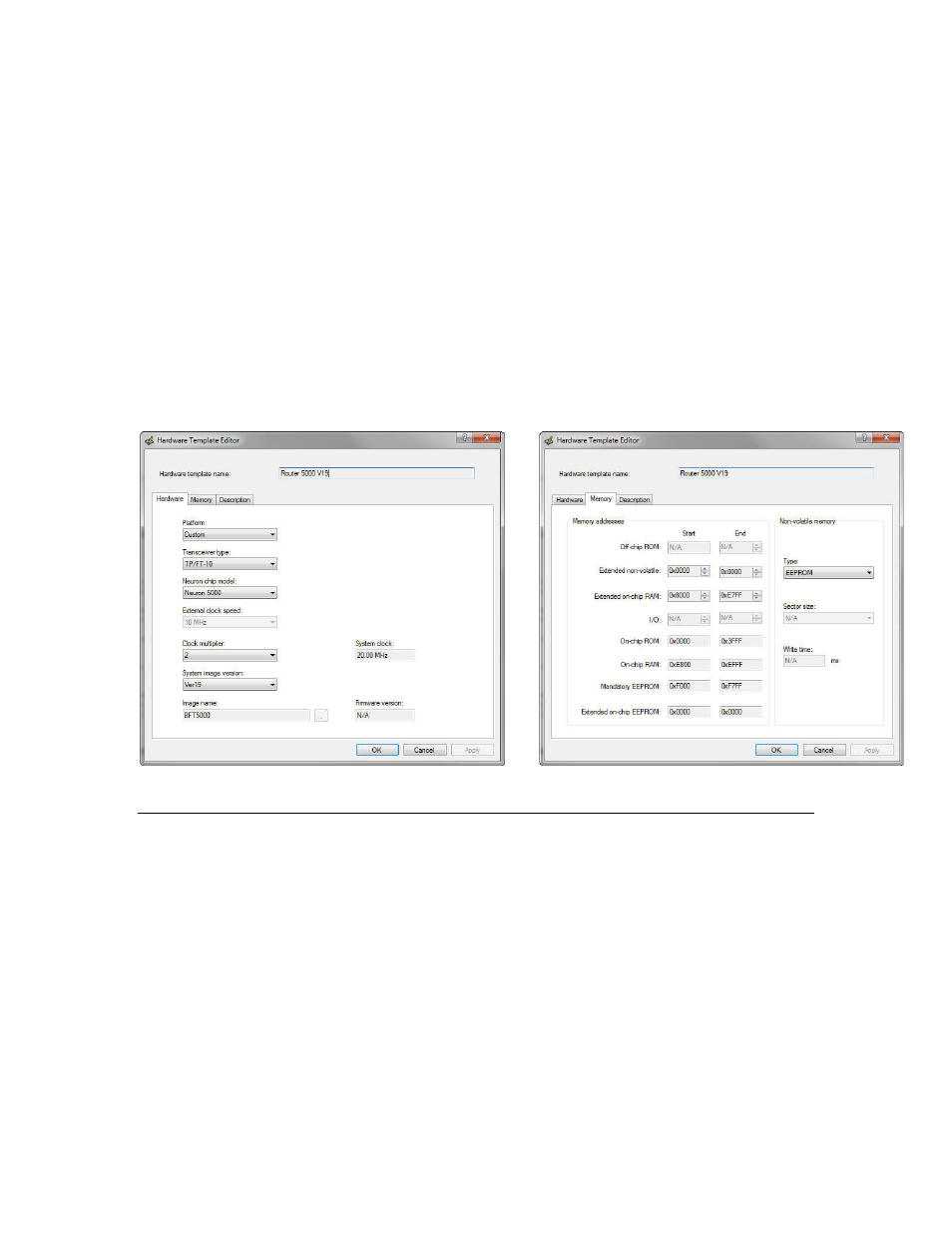

Figure 40. Example NodeBuilder Hardware Template for the Router 5000
NodeBuilder Device Template
The device template should include a standard Program ID, such as
“80:00:01:01:01:02:04:01”, where the channel type field varies according to the
transceiver type. Figure 41 shows an example device template for a Router 5000
device.
