Using Predefined Transceivers

The RTR-10 router includes built-in transceiver parameters for the transceivers

listed in Table 7. When using any of these transceivers, the communications

parameters are automatically programmed, as described in Chapter 2,

LONWORKS Router Electrical Interfaces.
The user's guide for each transceiver contains documentation on the interface

requirements. You also must set the transceiver ID input for each side of the

RTR-10..

Using Custom Transceivers

The RTR-10 router can be used with transceivers not listed in the table on page

25, but the communications parameters must be reprogrammed to match the

custom transceiver. If one side of the router is a predefined transceiver type, this

reprogramming can occur during manufacturing or during field installation. The

first four steps of the following procedure describe how the custom

communications parameters are programmed for one side. If both sides of the

custom router will be custom transceiver types, additional configuration steps

will be required, as described in steps 5 to 10.
1. Assuming that the predefined transceiver is Side A, attach a transceiver

matching one of the predefined types to Side A of the RTR-10 and select the

matching transceiver ID for Side A.

2. Select the custom transceiver type (ID 30, 0x1E) for Side B of the RTR-10

router.

3. Attach a network management tool, such as OpenLNS CT, with a compatible

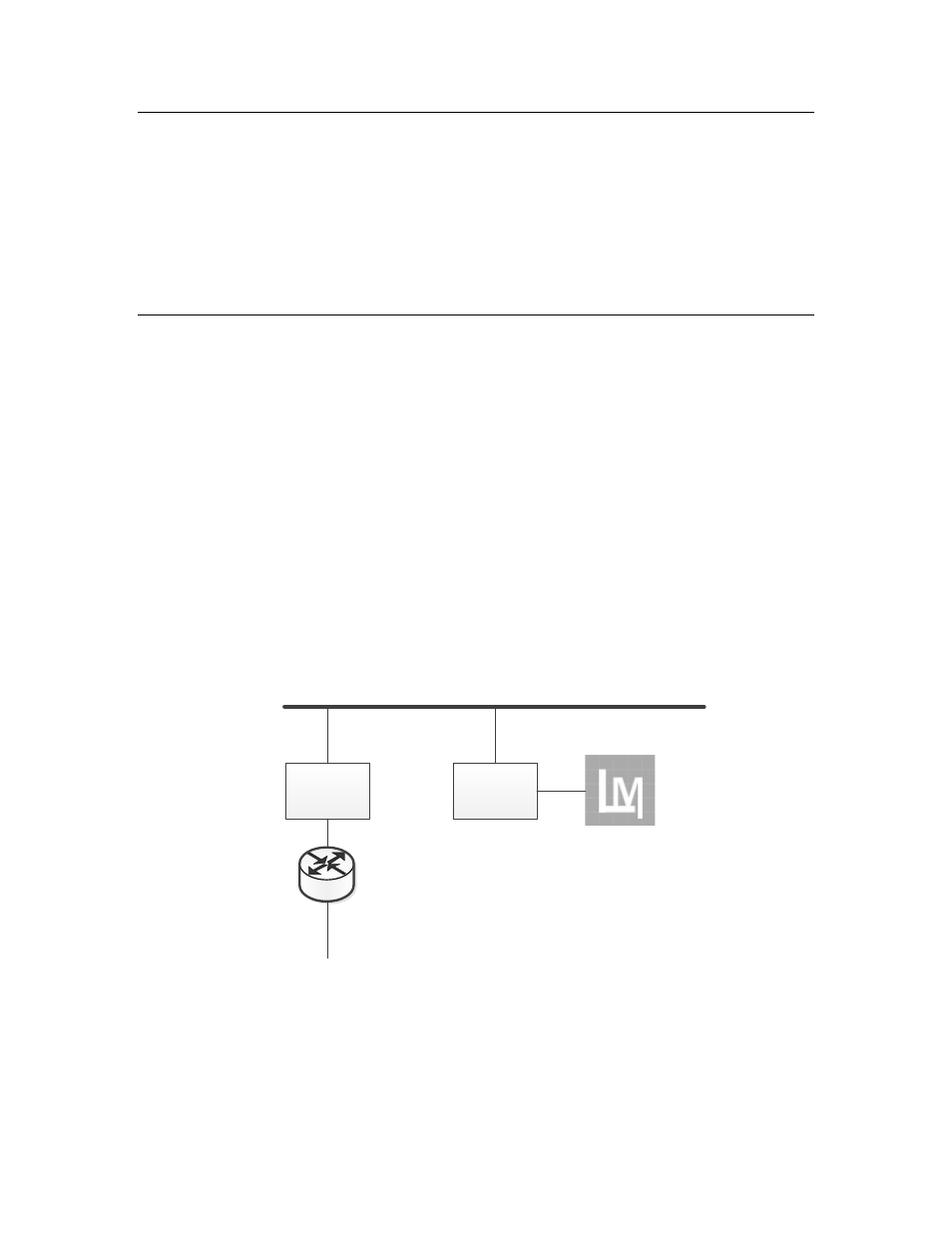

predefined transceiver to Channel A as shown in Figure 28.

Channel A

RTR-10

Router

Network

Management

Tool

Predefined

Transceiver

Predefined

Transceiver

Figure 28. Configuring Side B

4. Configure the communications parameters on Side B of the RTR-10 router

using the network management tool. Side A might be automatically

reconfigured at the same time, depending on the network management tool.

Installation procedures for the OpenLNS CT are described in Chapter 6,

Installing a LONWORKS Router.
