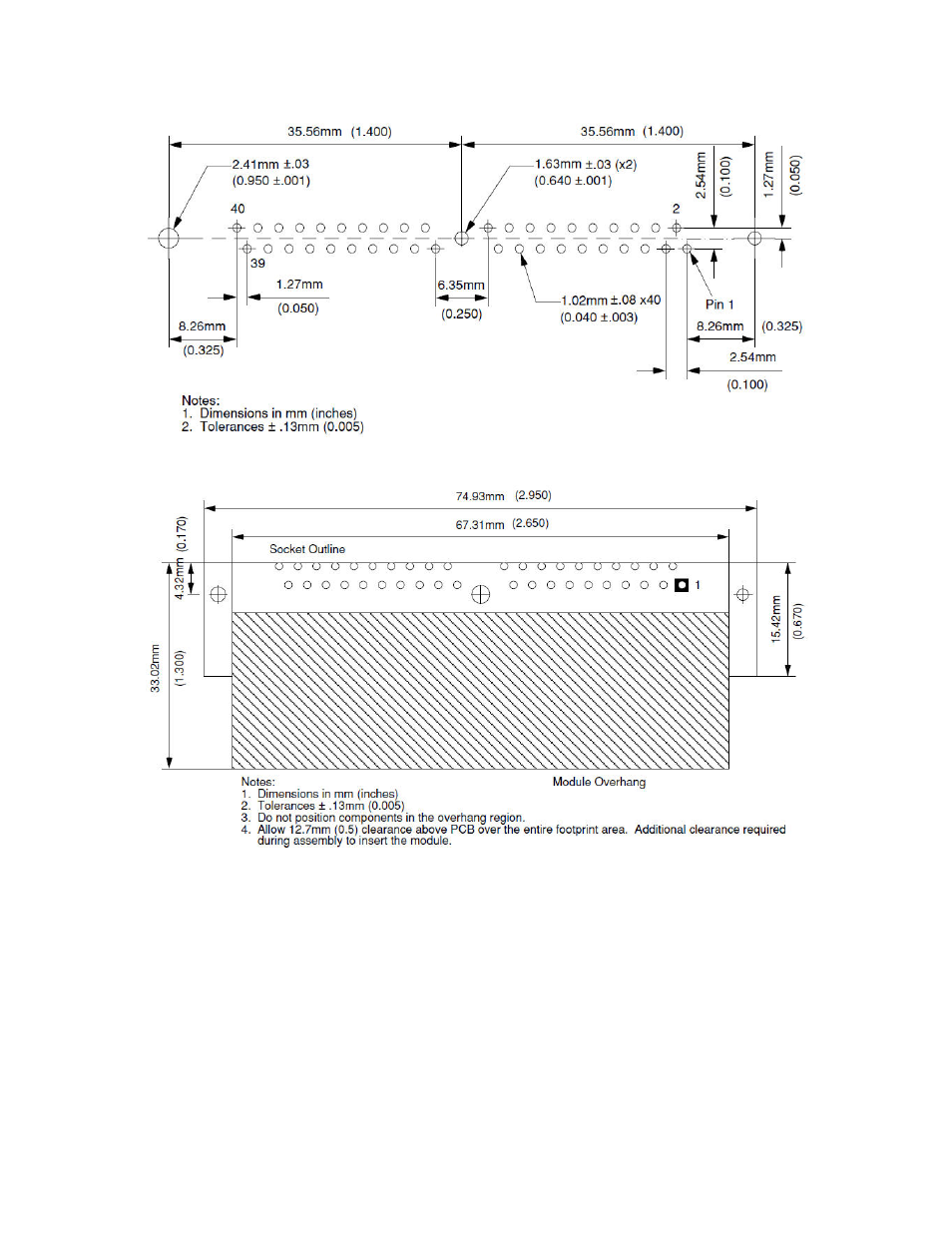

Figure 23. RTR-10 Recommended PCB Hole Pattern (Component Side, Vertical Mounting)
Figure 24. RTR-10 PCB Footprint (Component Side, Horizontal Mounting)
