Introduction

In general terms, a router is a device that forwards data packets between

communications networks. The router connects to the data lines from each

network, and reads address information in each data packet to determine the

packet’s destination.
A L

ON

W

ORKS

router connects two communications channels within a L

ON

W

ORKS

network, and routes LonTalk messages between them. Using a L

ON

W

ORKS

router supports the installation of small or large networks, with dozens to

thousands of nodes.

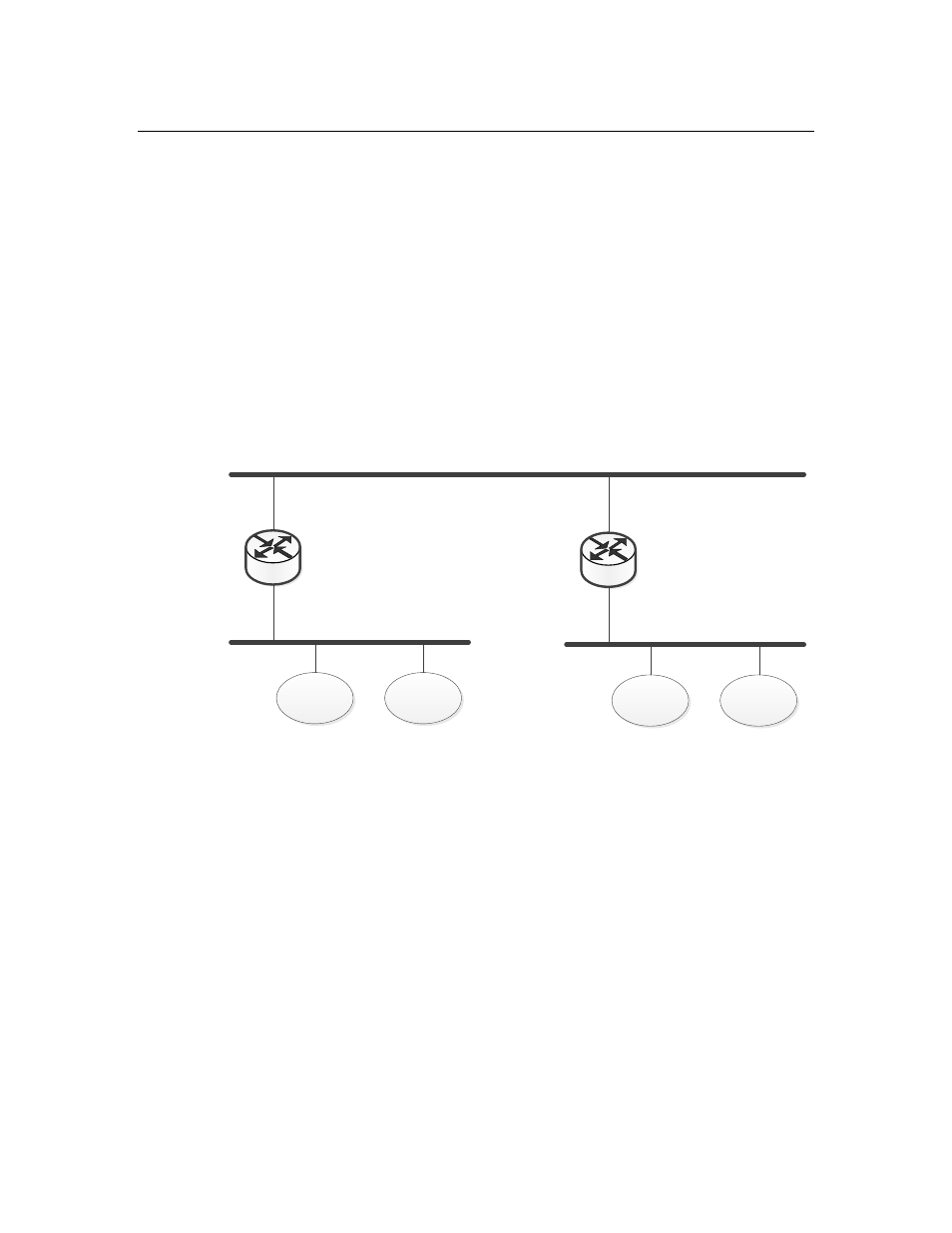

Figure 1 shows a typical router installation, with a free topology channel and a

78 kbps bus topology channel connected to a 1.25 Mbps backbone twisted pair

channel. Because the network includes the routers, applications on each of the

L

ON

W

ORKS

devices can communicate with each other transparently, as if they

were installed on a common channel.

L

ON

W

ORKS

Device 1

L

ON

W

ORKS

Device 2

L

ON

W

ORKS

Device 3

L

ON

W

ORKS

Device 4

TP/XF-1250 Backbone Channel

TP/FT-10 Channel

TP/XF-78 Channel

TP/XF-1250

to

TP/FT-10

Router

TP/XF-1250

to

TP/XF-78

Router

Figure 1. Sample Router Installation

A single router can connect two channels, or multiple routers (called redundant

routers) can connect the same pair of channels. Redundant routers provide fault

tolerance by providing more than one routing path from one channel to another.

They are also required when not all devices on a given channel are able to hear

one another (referred to as an “ear shot problem”), for example on a radio

frequency channel. For a router to function as a redundant router, the router

must be configured to be a Configured router (see Router Types).
L

ON

W

ORKS

routers are used to:

Extend the limits of a single channel. You can use a router to add a

channel to a L

ON

W

ORKS

network to support additional devices or to

extend the maximum channel length. You can add multiple routers,

depending on the capacity or distance needed.

Interface different communications media, or bit rates, in a L

ON

W

ORKS

network. For example, you might want to trade data rate for distance on

portions of the network, or to use a 1.25 Mbps backbone twisted pair

channel to connect several 78 kbps free topology and link power channels.

Alternatively, you might want to use power line for a portion of the

2

Introduction to LONWORKS Routers
