RTR-10 Mechanical Description
The RTR-10 Router Core Module consists of a 67 mm by 23 mm by 7 mm (2.65 in
by 0.9 in by 0.3 in) module with the core electronics and firmware required to
implement a router. The RTR-10 is attached to a motherboard, using a 40-
position 0.050-inch spacing SIMM socket, such as a Molex ® Incorporated 1.27mm
(.050") Pitch SIMM Socket:
• www.molex.com/customer.html?supplierPN=015821390
• www.molex.com/customer.html?supplierPN=015820793
However, these Molex SIMM sockets are obsoleted and are unavailable for
purchase from Molex. Echelon has a limited supply of these sockets (models
61101R and 61102R); contact Echelon Support for more information.
The following figures show recommended mechanical layouts for the RTR-10:
Figure 22 shows the vertical socket mechanical footprint, Figure 23 shows the
vertical socket pad layout, Figure 24 shows the right-angle socket mechanical
footprint, and Figure 25 shows the right-angle socket pad layout.

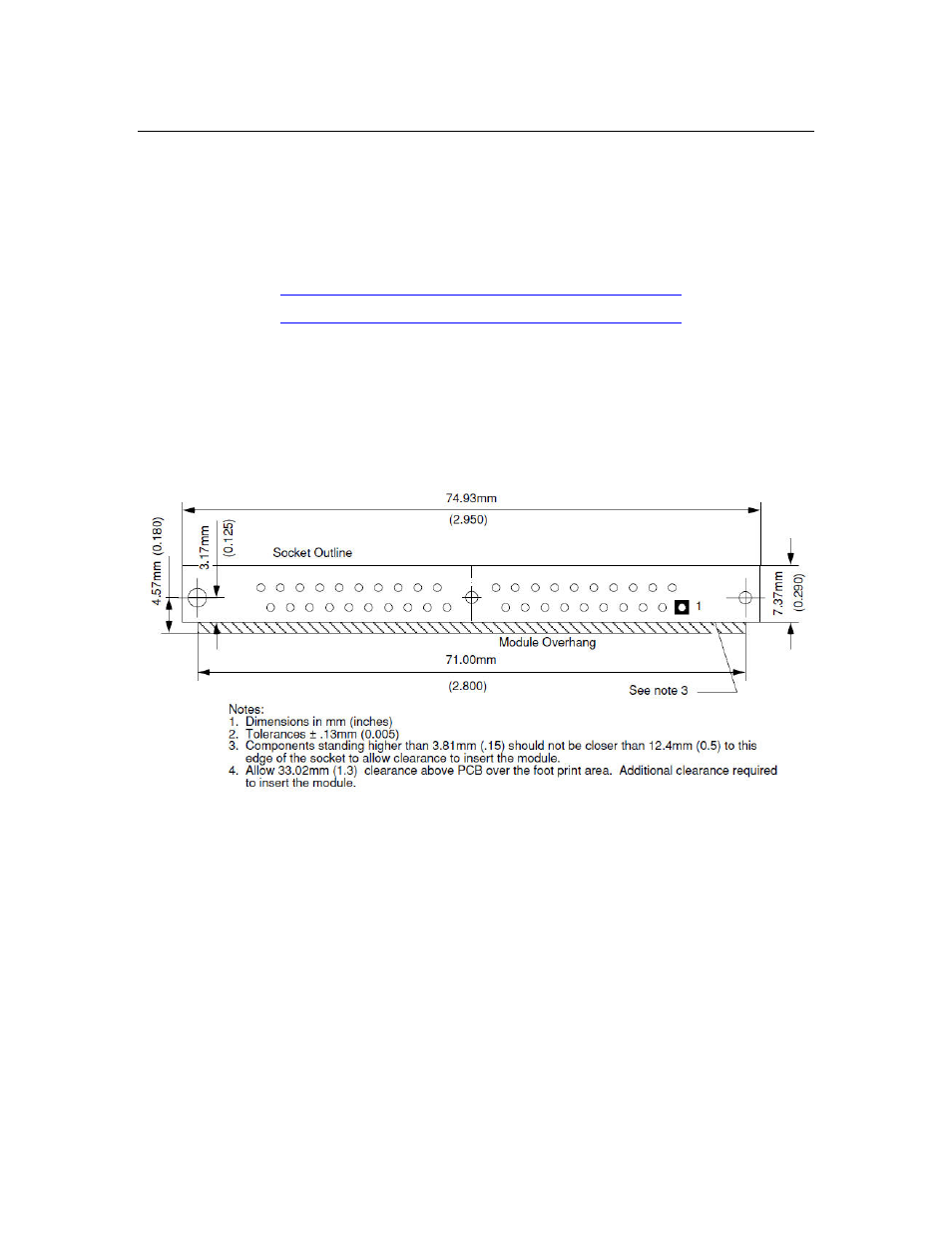

Figure 22. RTR-10 PCB Footprint (Component Side, Vertical Mounting)
