USER’S GUIDE
520 CyberSWITCH
V IEWING T HROUGHPUT I NFORMATION

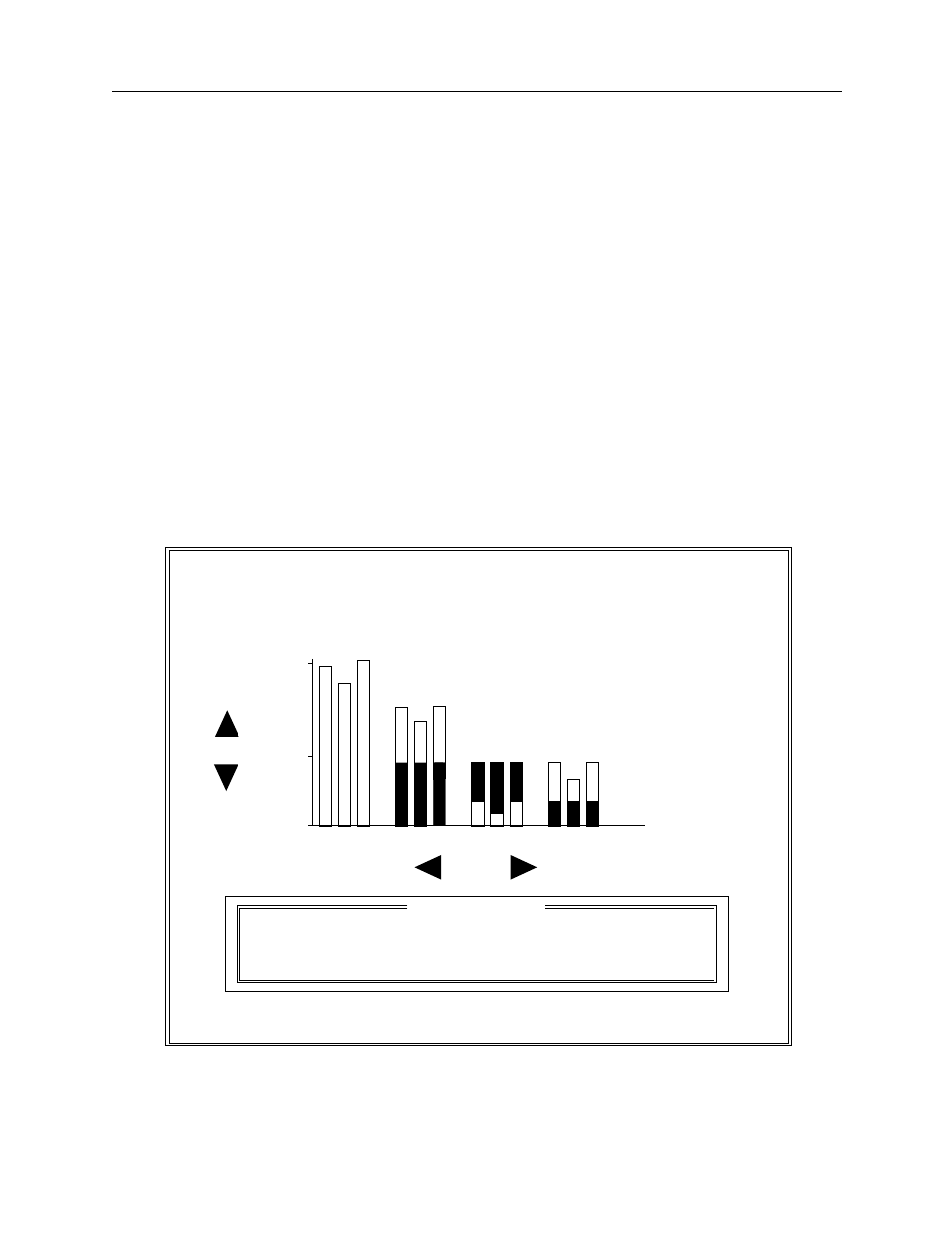

The Throughput Monitor screen displays the system throughput monitoring feature in action. To
enter this screen:
1. Issue the mc command to display the connection monitor screen.
2. Use the to move the cursor down to the specific site for which you would like to
view throughput information.
3. Press to display the throughput monitor screen for that site.
Throughput monitoring information can be very useful for fine-tuning your bandwidth
configuration parameters. Note that this feature is not available through a Telnet session. Refer to
the
Configuring Call Control chapter for a complete description of throughput parameters.
The actual bandwidth utilization, along with the current underload setting, is displayed for each
throughput sample. After 32 samples are displayed, the newest sample is displayed at position 32
and all other samples are shifted left one position.
100
30
0
8 16 24 32
Throughput Monitor
Wide Area Network Bandwidth Utilization to site sitename @ current bandwidth Kbps
#1 #2
= UNDERLOAD BANDWIDTH = ACTUAL BANDWIDTH UTILIZATION
Sample Rate (seconds): 03
Overload: Trigger 01 Window 02 Utilization (%) 10
Underload: Trigger 05 Window 10
Idle: Trigger 05 Window 05 Utilization (%) 10
Throughput Parameters
< Press F to Freeze data capture, Esc to return to Connection Monitor >
% of current
bandwidth
Samples
