Workgroup Remote Access Switch 373
S YSTEM V ERIFICATION
Verifying the AppleTalk Routing Feature
AppleTalk routing initialized successfully
3. For the AppleTalk port that has been configured, the following port initialization message
should be displayed among the system messages:
AppleTalk successfully initialized on with address
Note: is either LAN port 1, LAN port 2 or WAN.
is the AppleTalk address assigned to this port.
4. If you see these AppleTalk routing initialization messages, then the AppleTalk routing has
initialized properly.
If these messages are NOT displayed, refer to AppleTalk Routing Initialization in the Problem
Diagnosis chapter.
V ERIFYING A PPLE T ALK R OUTING IS O PERATIONAL
To verify that AppleTalk routing is properly operational, a remote Macintosh must be operational
and available to initiate WAN connections via a remote AppleTalk router device. Also, a local
Macintosh device must be connected to the local LAN port on the CyberSWITCH.

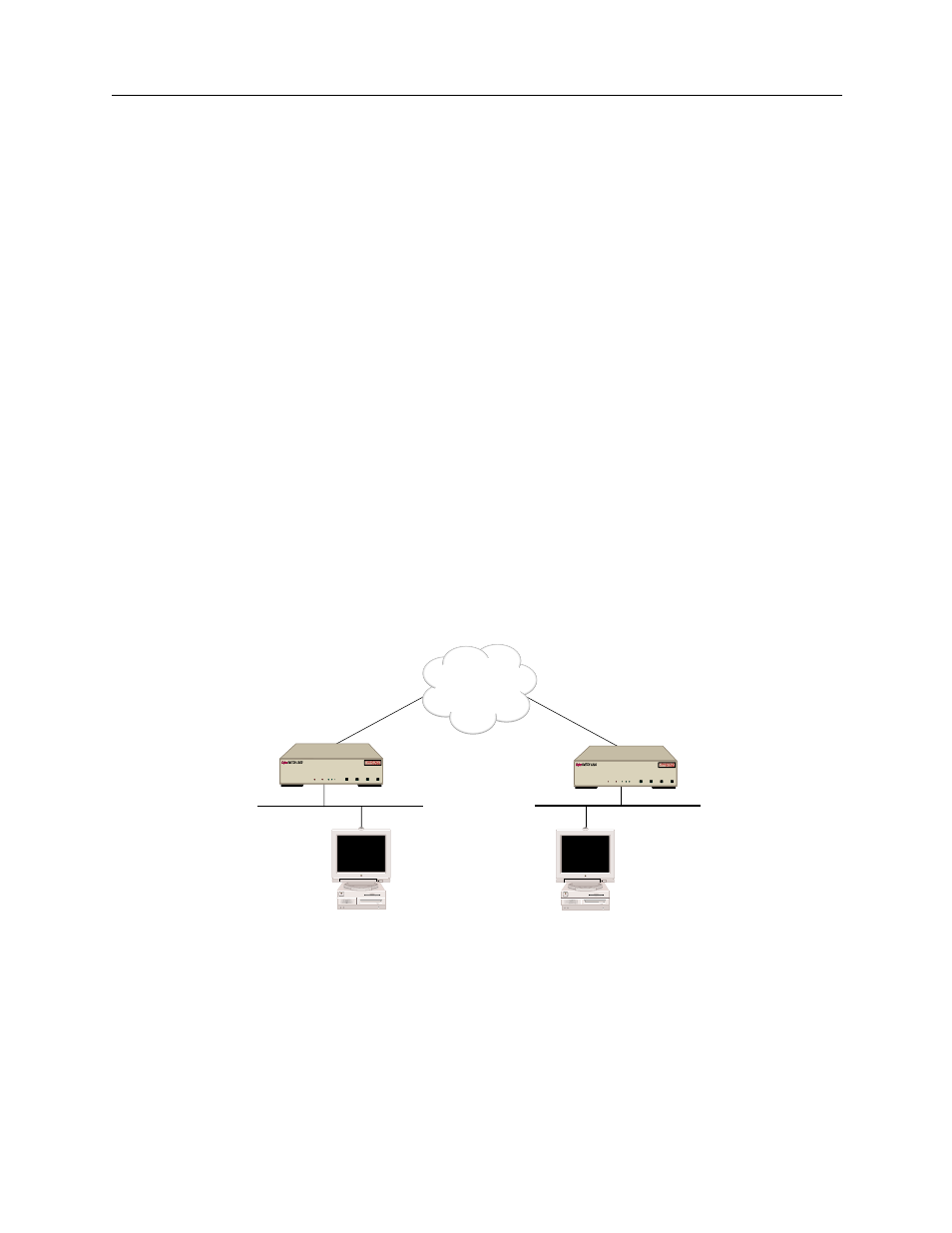

Below is an example of a configuration used to verify AppleTalk Routing operation. It uses
AppleTalk addresses, zones and resource names specific to the example. Substitute those of your
network when you perform the AppleTalk Routing feature verification steps.
ISDN
CSX1200
"Site1"
CSX1200
"Site2"
Net Range: 10-11
Zone: Left Zone
Net Range: 20-21
Zone: Right Zone
Local Mac Remote Mac
WORKGROUP REMOTE ACCESS SWITCH
LAN 10BASE-T RX TX SERVICE CH-2 D-CH CH-1 SYNC POWER LINE 1 CH-2 D-CH CH-1 SYNC
LINE 2 CH-2 D-CH CH-1 SYNC
LINE 3 CH-2 D-CH AGI
CH-1 SYNC
LINE 4
WORKGROUP REMOTE ACCESS SWITCH
LAN 10BASE-T RX TX SERVICE CH-2 D-CH CH-1 SYNC POWER LINE 1 CH-2 D-CH CH-1 SYNC
LINE 2 CH-2 D-CH CH-1 SYNC
LINE 3 CH-2 D-CH AGI
CH-1 SYNC
LINE 4
