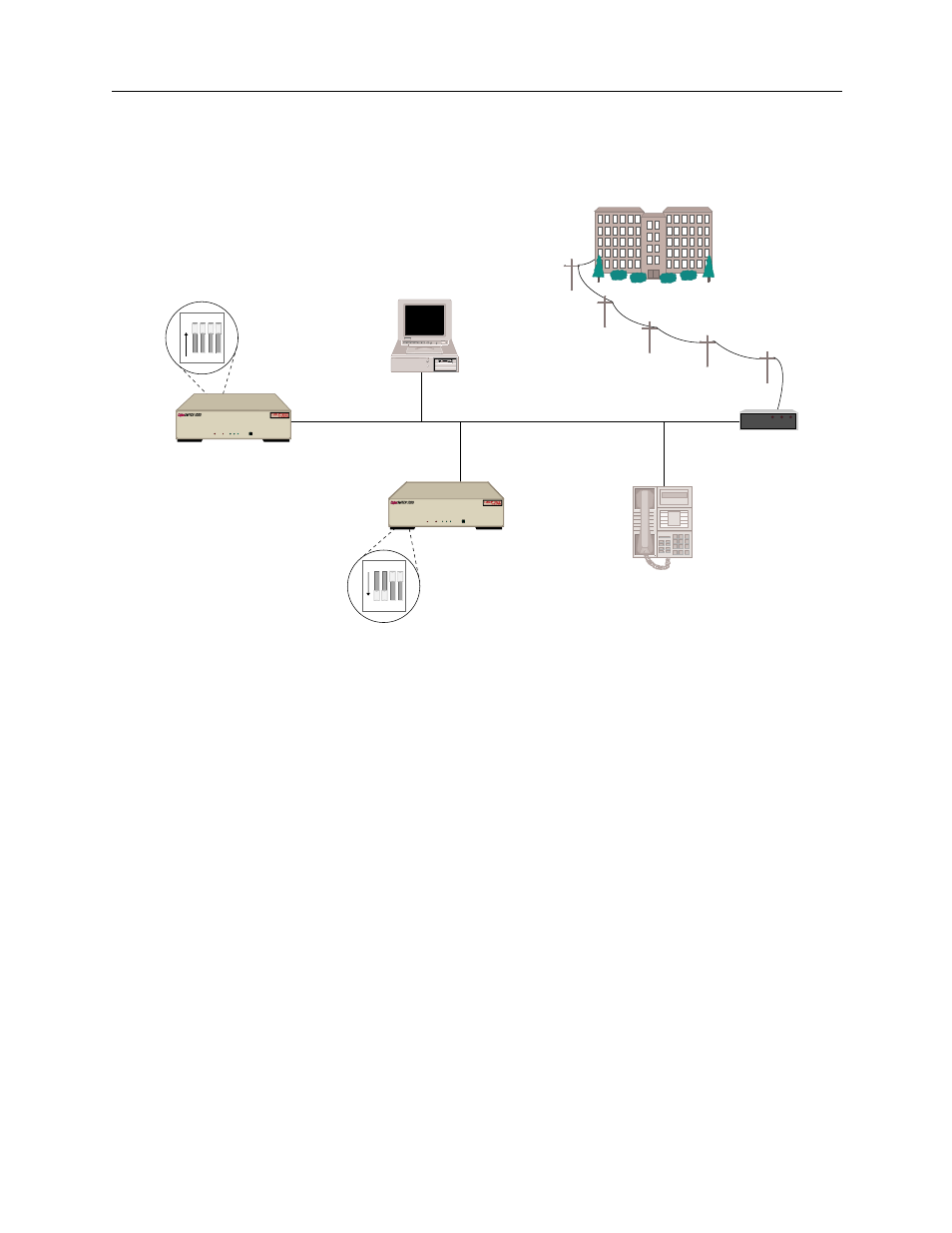

Refer to the following figure, which illustrates a BRI Point-Multipoint configuration.
S
YSTEM
C
HARACTERISTICS
Physical Characteristics:
Height:
76.2 mm (3 in)
Width:
304.8 mm (12 in)
Depth:
228.6 mm (9 in)
Weight:
approximately 3.2 kg (7 lb)
Environmental Characteristics:
Operating Temp:
0
°
to 40
°
C (32
°
to 104
°
F)
Operating Humidity:
5–95% non-condensing
Operating Altitude:
3000 m maximum (10,000 ft maximum)
Non-operating Shock:
50 G, 11 ms, 1/2 sinewave
Storage Temperature:
-40
°
to 85
°
C (-40
°
to 185
°
F)
Electrical Characteristics
AC Power Input:
Voltage:
100-125 VAC/200-240 VAC
Frequency:
50/60 Hz
Fuse:
1.0/0.5 amps, 250V
Power:
50 watts maximum
Note:
Main circuit card fuse labeled F1 is rated at 0.5A 63V. This fuse protects the 12V
AUI circuitry on the main board. This fuse is a factory serviceable item only.
OFF
1 2 3 4
ON
1 2 3 4
Telephone Company
Workstation
(Terminating resistor OFF)
Telephone
(Terminating resistor OFF)
(Terminating resistor OFF)
(Terminating resistor ON;
end of the line)
NT-1
(Terminating resistor ON;
end of the line)
WORKGROUP REMOTE ACCESS SWITCH
LAN
10BASE-T
RX
TX
SERVICE
CH-2
D-CH
CH-1
SYNC
POWER
LINE
1
AGI
WORKGROUP REMOTE ACCESS SWITCH
LAN
10BASE-T
RX
TX
SERVICE
CH-2
D-CH
CH-1
SYNC
POWER
LINE
1
AGI
