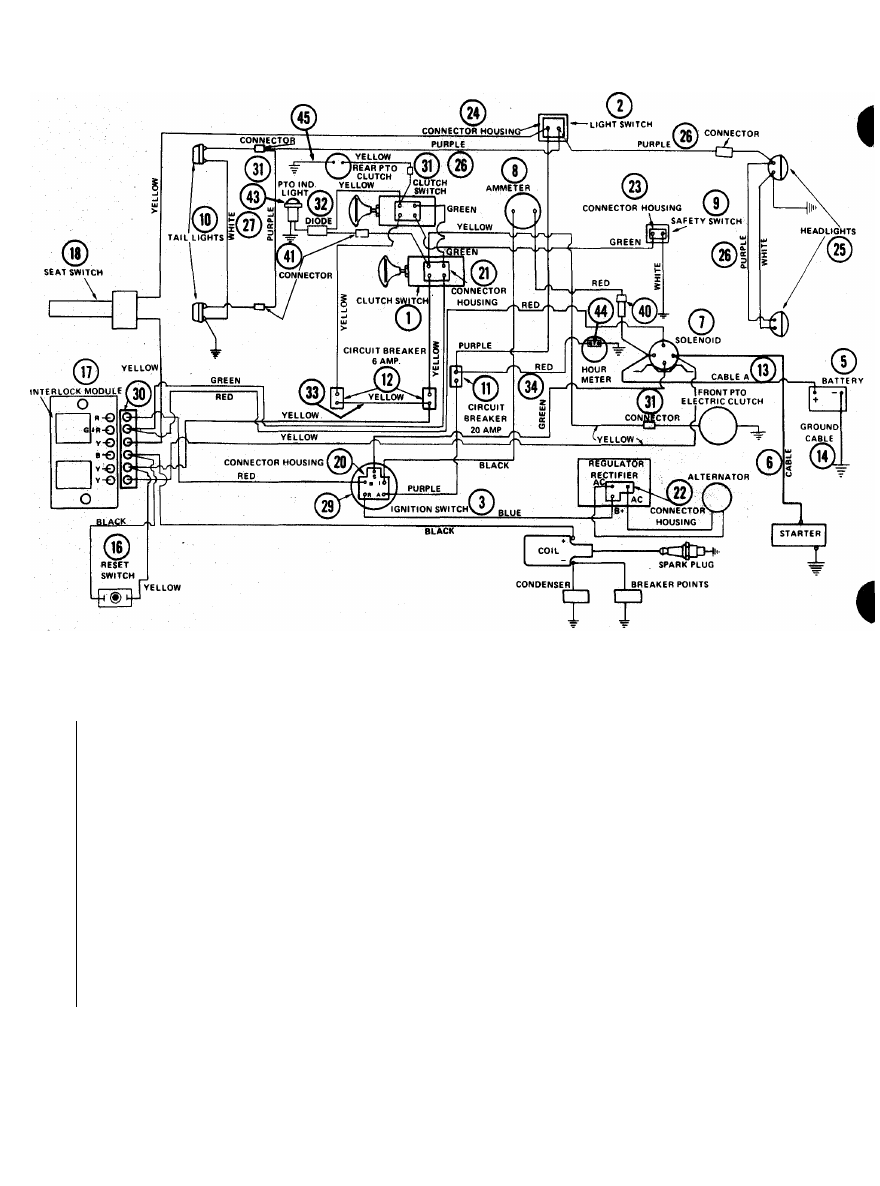

ELECTRICAL WIRING DIAGRAM
MODEL 931015
REF. PART
NO. NO.
DESCRIPTION
NO. REQ'D
REF. PART
NO. NO.
DESCRIPTION
NO. REO'D
1
031150
SWITCH, Clutch
2
031151
SWITCH, Lights
3
031152
SWITCH, Ignition
5
031085
BATTERY, 12 Volt
6
031111
CABLE ASS'Y, Solenoid to Starter
7
031720
SOLENOID STARTER SWITCH
8
031117
AMMETER
9
031107
SWITCH, Safety
10
631006
TAIL LIGHT
11
031102
CIRCUIT BREAKER, 20 Amp
12
031108
CIRCUIT BREAKER, 6 Amp
13
031110
CABLE, Battery to Solenoid
14
031103
CABLE, Battery to Ground
16
025172
SWITCH, Reset
17
031976
INTERLOCK MODULE
18
031716
SEAT SWITCH
20
023478
CONNECTOR HOUSING, 5 Wire
21
023535
CONNECTOR HOUSING, 4 Wire
22
031106
CONNECTOR HOUSING, 3 Wire
23
029170
CONNECTOR HOUSING, 2 Wire
24
031105
CONNECTOR
25
031149
HEAD LIGHT
26
030002
WIRE HARNESS, Headlight & Clutch
27
030001
WIRE HARNESS,Tail Light
29
030003
DASH HARNESS
30
030004
INTERLOCK MODULE HARNESS
31
031101
WIRE CONNECTOR
32
031636
WIRE ASSEMBLY, RaarPTO
33
031996
WIRE
34
031964
WIRE HARNESS, Hour Meter
40
STD, 30a SAE FUSE
41
031997
GROUND WIRE, Black
43
031983
PTO LIGHT
030016
STD,12PSB LAMP
44
031962
HOUR METER CONNECTOR
45
002303
GROUND WIRE
