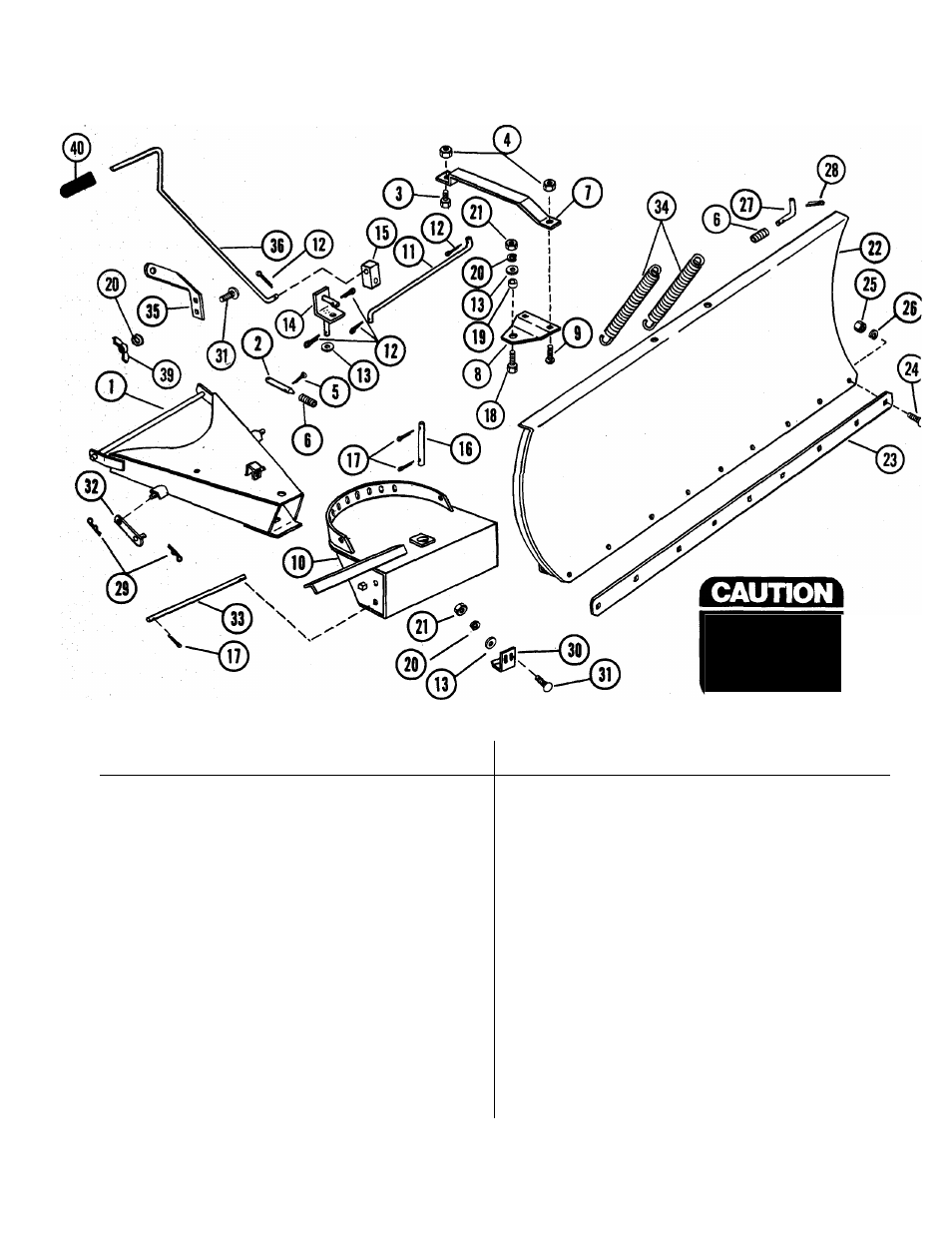

54” BLADE MODEL 831004
• Uniock spring trip, except
for heavyt slow speed
digging and grading
• On tractors with hydraulic
lift operate in float position,
except for slow-speed
digging arxl grading
78294
REF.
N0.
PART
N0.
DESCRIPTION
NO. RED’D
REF.
N0.
PART
NO.
DESCRIPTION
NO. RED’D
1
031250
Frame
1
20
063021
Lockwasher, 3/8
5
2
031254
Latch Pin
1
21
065018
Nut, Hex 3/8
5
3
059069
Cap Screw, Hex Head, 5/16" x 1-1/4"
Lg. 1
22
031248
Blade
1
4
065042
Nut, 5/16-18
2
23
031249
Wear Plate
1
5
067004
Pin, Cotter 1/8"
X
1" Lg.
1
24
062015
Carriage Bolt, 5/16 x 1 Lg.
9
6
083132
Spring, Compression
2
25
065015
Nut, Hex 5/16
9
7
031267
Strap
1
26
063003
Lockwasher, 5/16
9
8
031252
Pivot Plate
1
27
031277
Jack Pin
1
9
062034
Carriage Bolt, 5/16 x 3/4"
1
28
067004
Pin, Cotter
1
10
031251
Support
1
29
067022
Hairpin
4
11
031253
Rod
1
30
031271
Skid Shoe
2
12
067024
Pin, Cotter 1/8
X
3/4" Lg.
4
31
062029
Carriage Bolt 3/8 x 1 Lg.
6
13
064008
Washer, 3/8"
7
32
031273
Arm
2
14
031269
Angle
1
33
031272
Rod
1
15
031268
Block Joint
1
34
083133
Extension Spring
2
16
031276
Pin
1
35
031274
Support
1
17
067026
Pin, Cotter, 3/16
X
1 Head.
3
36
031275
Rod
1
18
059004
Cap Screw, Hex Head, 3/8 x 1 Lg.
1
39
065023
Wing Nut
2
19
029140
Spacer
1
40
075099
Grip
1
