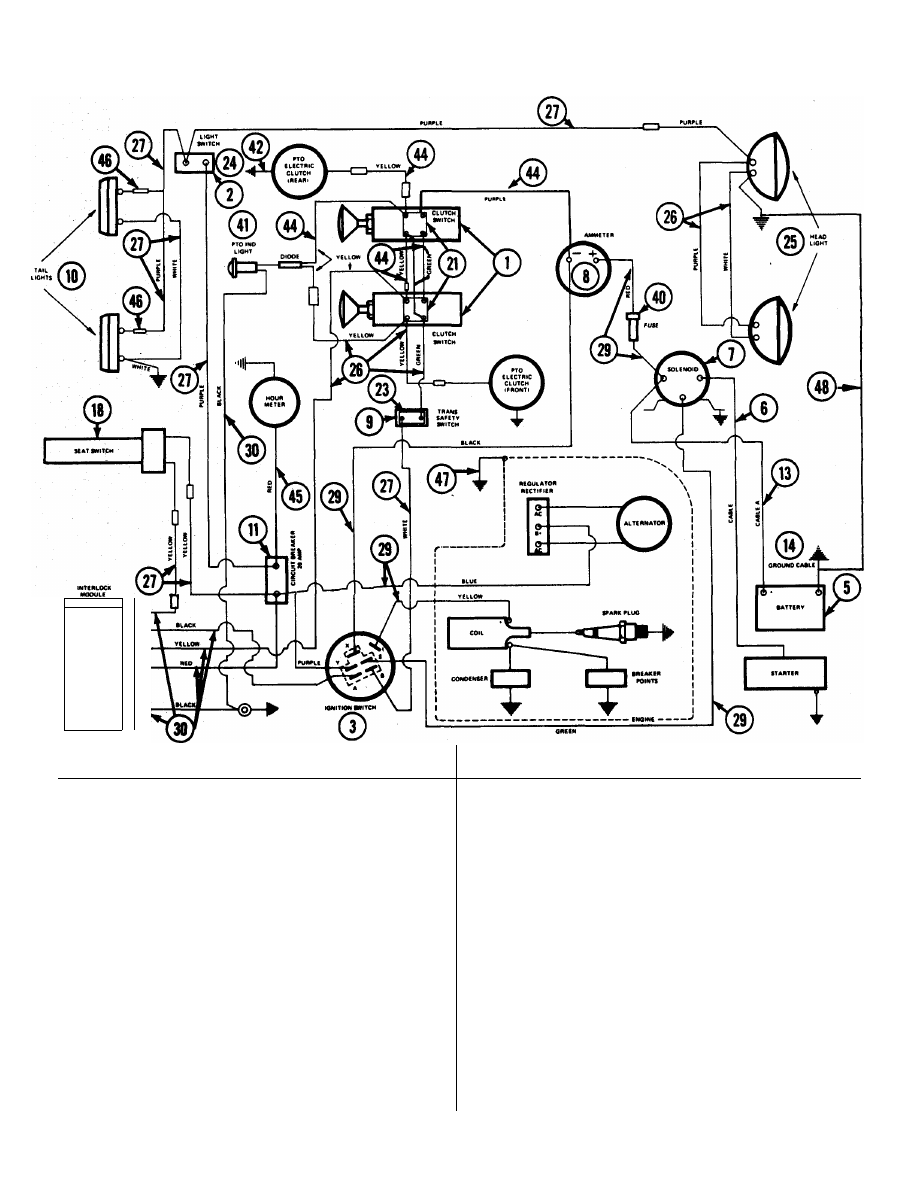

DUAL CLUTCH ELECTRICAL WIRING DIAGRAM MODELS 931019, 931024 & 931026
—cTT
O
O
O
0 O
O O
o
REF.
N0. PART
N0.
DESCRVnON NO. REO’D
REF.
NO. PART
N0.
DESCRIPTION N0.REirD
1 031150 Switch, Clutch 2 26 030168 Wire Harness, Headlight & Clutch 1
2 031151 Switch, Lights 1 27 531132 Wire Harness, Tail Light 1
3 631212 Switch, Ignition 1 29 030169 Dash Harness 1
5 031085 Battery, 12 Volt 1 30 030170 Interlock Module Harness 1
6 030137 Cable Ass'y, Solenoid to Starter 40 Std. 30 a SAE Fuse 1
7 030387 Solenoid Starter Switch 1 41 031983 PTO Indicator Light (Consists of) 1
8 031117 Ammeter 1 030042 Lens
9 031107 Switch, Safety 1 030043 Lamp Socket
10 631006 Tail Light 2 030279 Speed Nut
11 031102 Circuit Breaker, 20 Amp 1 42 023030 Ground Wire 1
13 031110 Cable, Battery to Solenoid 1 44 030171 PTO Harness 1
14 031103 Cable, Battery to Ground 1 45 031964 Wire Harness Hour Meter 1
17 030172 Interlock Module 1 46 030050 Clip 2
18 031716 Seat Switch 1 47 031111 Cable, Engine to Ground 1
20 023478 Connector Housing, 5 Wire 1 48 030374 Ground Wire 1
21 023595 Connector Housing, 4 Wire 2 HARDWARE NOT ILLUSTRATED:
23 029170 Connector Housing, 2 Wire 1 063003 Lockwasher, 5/16-24 (Cables to solenoid) 2
24 031105 Connector 1 065100 Nut, Hex, 5/16-24 (Cables to solenoid) 2
25 031149 Headlight 2 063011 Lockwasher, 3/16 (Wiring to solenoid) 1
065026 Nut, Hex, 10-32 (Wiring to solenoid) 1
