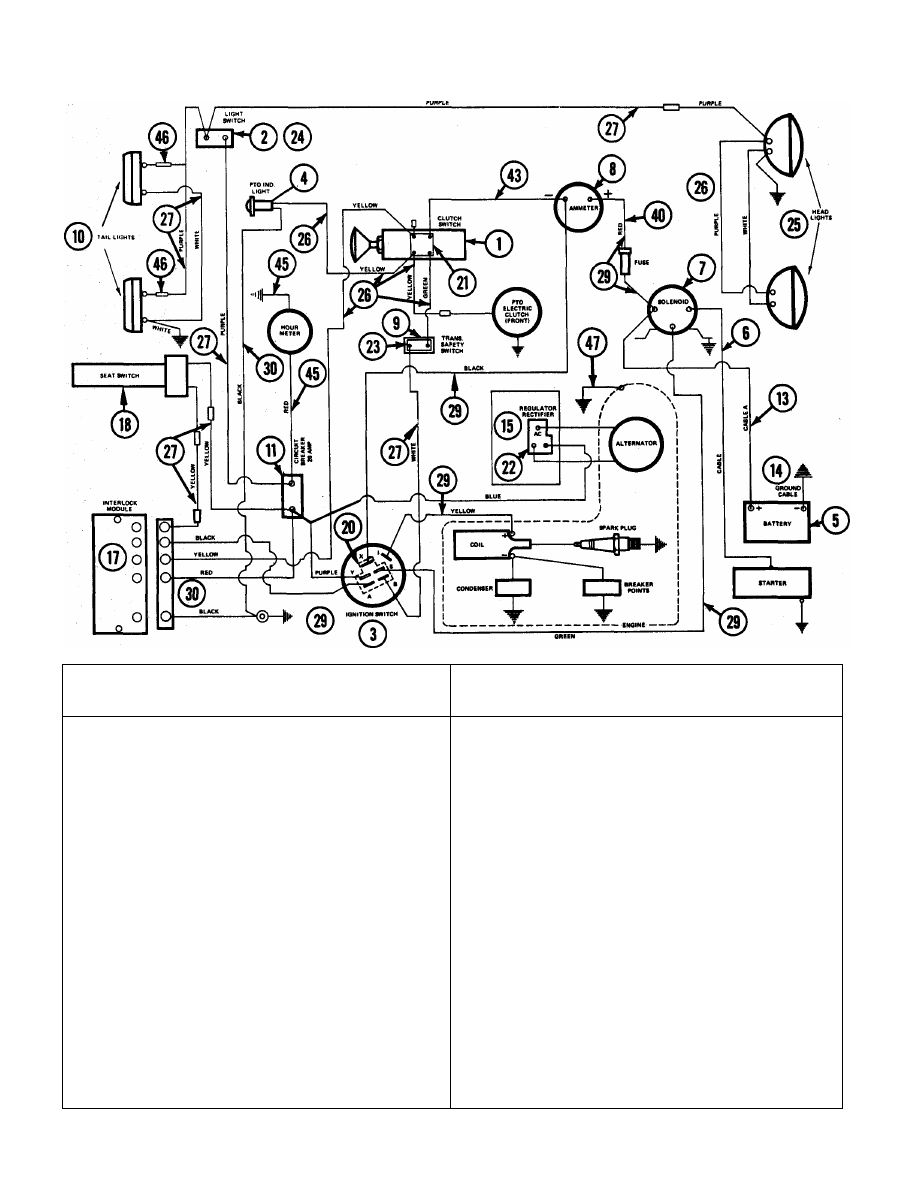

ELECTRICAL WIRING DIAGRAM
MODELS 931020, 931021,931022,931023
&
931025
REF.
NO.
PART
NO.
DESCRIPTION
NO. REQ'D
REF.
NO.
PART
NO.
DESCRIPTION
NO. REQ'D
1
031150
Switch, Clutch
1
20
023478
Connector Housing, 5 Wire
1
2
031151
Switch, Lights
1
21
023595
Connector Housing, 4 Wire
1
3
631212
Switch, Ignition
1
22
031106
Connector Housing, 3 Wire
1
4
031983
PTO Indicator Light (Consists of)
1
23
031895
Connector Housing, 2 Wire
030043
Bulb
1
24
031105
Connector
1
030042
Lens
1
25
031149
Head Light
2
030044
Socket
1
26
030168
Wire Harness, Headlight
1
030279
Speed Nut
1
27
531132
Wire Harness, Taillight
1
5
031085
Battery, 12 Volt
1
29
030169
Dash Harness, 7K" Long (black) 20 Amp
1
6
031111
Cable Ass'y, Solenoid to Starter
1
30
030170
Interlock Module Harness
1
7
030387
Solenoid Starter Switch
1
40
Std 30 Amp Fuse
1
8
031117
Ammeter
1
43
030183
Interlock Wire
1
9
031107
Switch, Safety
1
45
031964
Wire Harness
1
10
631006
Tail Light
2
46
030050
Clip
2
11
031102
Circuit Breaker, 20 Amp
1
47
031111
Cable, Engine to Ground
1
13
031110
Cable Ass'y, Battery to Solenoid
1
14
031103
Cable Ass'y, Battery to Ground
1
HARDWARE NOT ILLUSTRATED:
15
Regulator Rectifier
1
063003
Lockwasher, 5/16-24 (Cables to solenoid)
2
Kohler 237335
1
065100
Nut, Hex, 5/16-24 (Cables to solenoid)
2
17
030172
Interlock Module
1
063011
Lockwasher, 3/16 (Wiring to solenoid)
1
18
031716
Seat Switch
1
065026
Nut, Hex, 10-32 (Wiring to solenoid)
1
