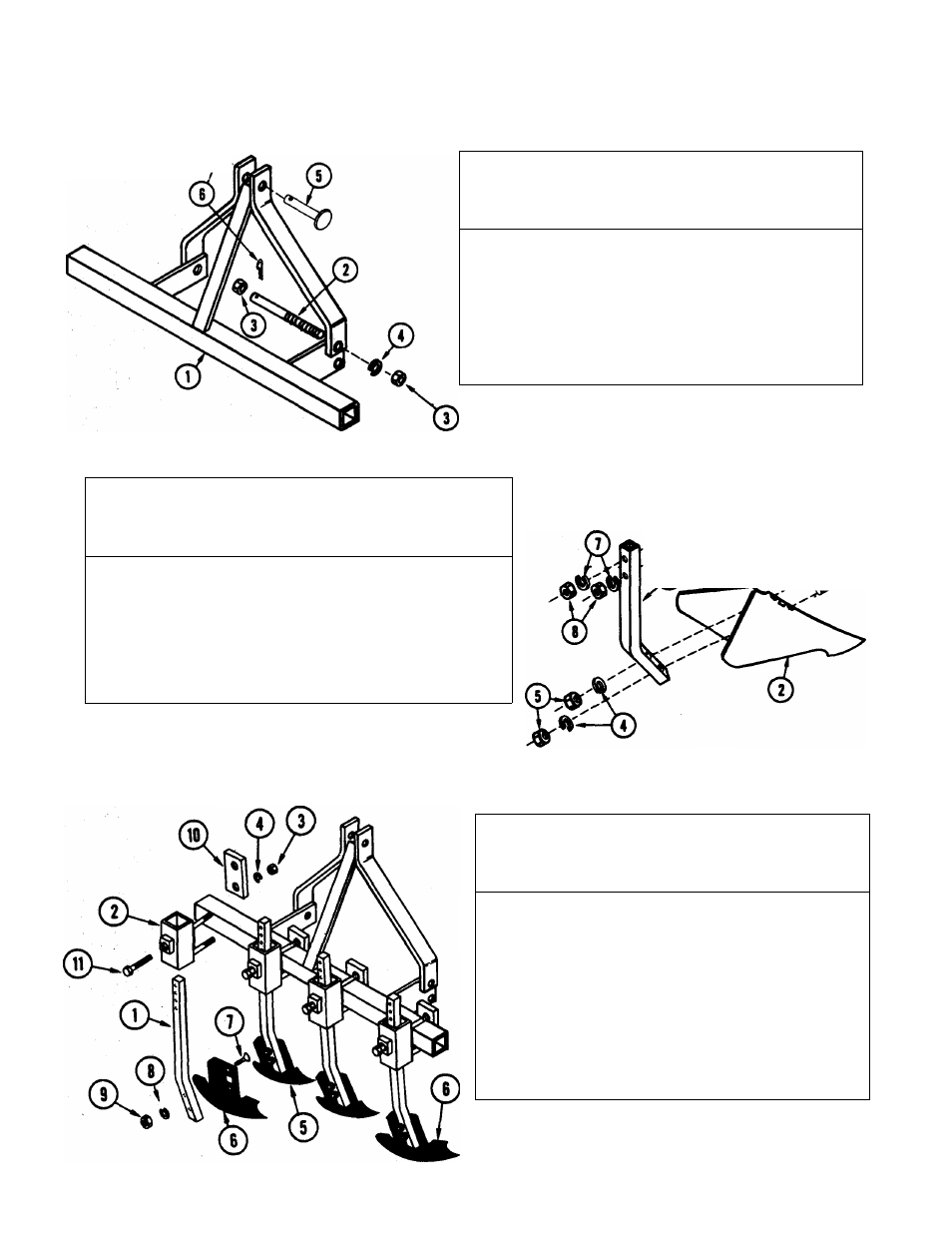

FIVE-IN-ONE ATTACHMENT MODEL 831016
"A" FRAME ASSEMBLY
I
SERIAL NO. 000101 & UP
REF.
NO.
PART STOCK
NO. CODE
DESCRIPTION
NO. REQ'D
1
030100
TOOL BAR
1
2
030105
LIFT PINS, 5 / 8 X 4
2
3
065003
HEX NUTS, 5/8 UNF
4
4
063007
LOCKWASHER, 5/8
2
5
030143
CLEVIS PIN
1
6
067022
HAIR PIN COTTER
3
REF.
NO.
PART
NO.
STOCK
description
CODE
NO. REQ'D
1
030116
BUSTER SHANK
1
2
030117
BUSTER SWEEP
1
3
062055
CARRIAGE BOLT, 7/16 • 14 X 21i
2
4
063005
LOCKWASHER, 7/16
2
5
065035
HEX NUT, 7/16-14
2
6
030110
"U" BOLT, 3/8 X 2-3/8 X 4-1/8
1
7
063004
LOCKWASHER, 3/8
2
8
065018
HEX NUT,3/8-16
2
MIDDLE BUSTER ASSEMBLY
j>
ffl____________
CULTIVATOR ASSEMBLY
REF.
NO.
PART
NO.
DESCRIPTION
NO. REQ'D
1
030113
SHANK
4
2
030111
ADJUSTMENT BRACKET
•4
3
065021
HEX NUT, K -13
8
4
063006
LOCKWASHER, K
.8
5
030114
CULTIVATOR SWEEP,4"
2
6
030115
CULTIVATOR SWEEP, 6"
2
7
070003
SWEEP B0LTS,3/8X1-»UNC
8
8
063004
LOCKWASHER, 3/8
8
9
065035
HEX NUT,3/8UNC
8
10
030112
PLATE
4
11
060021
SET SCREW, K - 1 3 X 1 1 4
2
