CT^riens
531164 CARBURETOR HEATER
PACKAGE
A Carburetor Heater Package, part number 531164,
has been designed and released by Kohler and
Ariens Engineering, to eliminate carburetor icing
which can occur under certain temperature/snow
conditions on the following models:
MODEL NO. SERIAL NO.
931019
931026 000101-006200
000101-001400
DESCRIPTION
GT17 Garden Tractor
GT19 Garden Tractor
NOTE: FOR MODEL 931019 (ENGINE SERIAL NUMBERS
BELOW 9544628) ADDITIONAL PARTS AVAIUBLE FROM
A KOHLER ENGINE SERVICE CENTER MUST BE INSTALLED
AS FOLLOWS:
1. GASKET — KOHLER PART NO. 277069
2. ELBOW — KOHLER PART NO. 52-054-15
3. BREATHER TUBE — KOHLER PART NO. 52-326-05
4. Screws—4— X-67-65 i12)
REFER TO THE KOHLER ENGINE INFORMATION
AVAILABLE AT THE SERVICE CENTER FOR PROPER IN­
STALLATION.

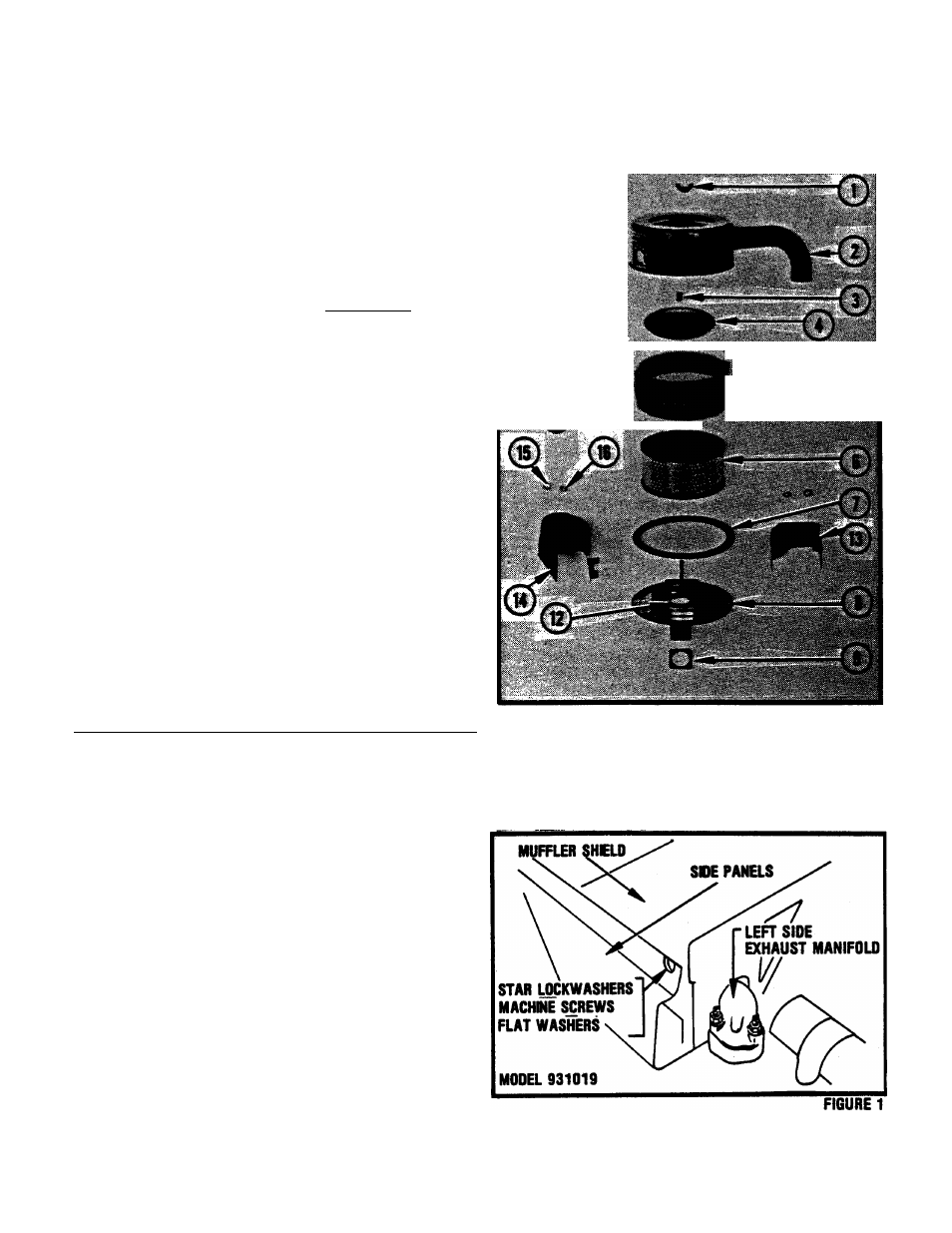

PARTS INCLUDED IN THIS ASSEMBLY ARE:
DESCRIPTION QUANTITY
KOHLER
PART NO.
ARIENS
PART NO.
1. Wing Nut 1 X-276-7
*
2. Air Cleaner Cover 1 52-254-11
*
3. Element Cover Seal 1 231032
*
4. Element Cover 1 52-082-04
*
5. Pre-Cleaner 1 45-083-01
*
6. Air Filter Element 1 45-083-02
*
7. Air Cleaner Cover Seal 1 237423
*
8. Air Cleaner Base 1 52-201-06
*
9. Base Gasket 1 277093
*
10. Blower Housing Plug 1 52-139-06
*
11. Decal (Figure 19) 1 52-113-14
*
13. Left Exhaust Shield 1 030528
14. Right Exhaust Shield 1 030529
15. Washer 2 064057
16. Nut, 5/16-18 2 065042
n---------------- ®
la. For 17 HP Model 931019 — Remove the machine screws,
star lockwashers and fiat washers securing the rear of the
muffler shield to the side panels at the front of the tractor.
DO NOT REMOVE THE MUFFLER SHIELD FROM THE HOOD
HINGE ASSEMBLY. See Figure 1.
*Parts indicated are available from Kohler engine sen/ice centers
and distributors only.
ARIENS COMPANY
655 WEST RYAN STREET
BRILLION, WISCONSIN
PART NO. 79714 54110-1098 U.S.A. 164 PRINTED IN U.S.A.
