Ariens 931 - Manual (Page 60)

REAR DECK, SEAT, DASH SUPPORT, RUNNING BOARD
MODELS 931019, 22, 23, 25 & 26
REF.
N0. PART
N0. DESCRIPTION NO. REO'D
REF.
NO. PART
NO.
DESCRIPTION NO. REO’D
1 030045 Rear Oeck 1 40 064123 Washer, Flat, 5/16" 4
2 030186 Seat Mount 2 41 063003 Lockwasher, 5/16" 10
3 030090 Seat Spring 2 42 065015 Nut, Hex, 5/16" 10
4 030091 Seat Support 2 43 030127 Rear Channel 1
5 064145 Washer, .380/.390" ID x .750/.875" x 4 44 030128 Front Channel 1
.090;.125" 45 062009 Bolt, Carriage, 5/16-18 x 1/2" 8
6 069102 Cable, 24" 1 46 065078 Nut, Flanged Whiziock, 5/16-18 8
•7 031798 Bottom Cover 1 47 065044 Whiziock Nut, 1/2-20 2
8 030092 Spacer 2 48 061012 Machine Screw, 10-24 x 1/2" 2
9 065039 Locknut, 3/8-16 2 50 063021 Lockwasher, 3/8" 4
10 075090 Seat Knob 2 51 067014 Cotter Pin, 1/8" X 1-1/4" 2
11 059004 Cap Screw, 3/8-16 x 1" 4 52 030309 Spring - Deck Latch 1
12 030093 Tray 1 53 030308 Lever - Deck Latch 1
13 030089 Seat 1 54 070027 Flange Whiziock Screw, 5/16-18 x 3/4" 5
14 002043 "S" Hook 1 56 064002 Washer, Flat, 5/16" 22
15 031517 Channel 2 57 061039 Screw, Machine, Truss H, 1/4" x 3/4" 1
16 031055 Support 1 58 063002 Lockwasher, 1 /4" 2
17 631185 Console Deck W/Decals 1 59 075076 Plastic Grommet 4
531070 CONSOLE-MODEL931020 1 60 064 23 Washer, 11/32" ID x 11/16" OD x 16 GA 2
531071 CONSOLE-MODEL931021 1 61 070015 Flange, Whiziock Screw (931022,25) 4
18 062034 Bolt, Carriage 5/16-18 x 3/4" 2 62 031709 Hose 1
19 631248 Floor Plate (Includes parts 51, 52, 53) 1 63 075044 Grommet 1
531119 FLOOR PLATE-MODEL931020 1 64 062015 Carriage Bolt, 5/16-18 x 1" 1
531120 FLOOR PLATE - MODEL 931021 1 65 065099 Nut, 1/4-20 1
20 030125 Running Board, L.H. 1 66 031961 Bracket 1
21 031019 Spacer 4 67 031965 Rod (931019. 931026) 1
22 075066 Grommet 4 68 065056 Locknut 4
23 031028 Hinge 1 69 074052 Screw, Self Tapping 2
24 531123 Dash Support 1 70 030124 Battery Stand 1
531133 DASH SUPPORT 1 71 064127 Washer 4
25 065032 Nut, Hex, 1/4" X 20" 3 72 062012 Carriage Bolt, 1/4-20 x 3/4" 2
26 074001 Screw, Self Tapping, No. 10 x 3/8" 4 73 030307 Catch 1
27 031086 Battery Tie Down 1 74 030295 Screen (931019. 931026) 1
28 070015 Flanged Whiziock Screw, 5/16-18 x 1/2" 4 76 030203 Deck Mounting Strap 1
29 059069 Cap Screw, HH, 5/16 - 1-1/4" 4 77 030211 Battery Bracket 1
30 065042 Locknut, Hex, 5/16" ■ 4 78 074039 Tapping Screw 1
31 062011 Bolt, Carriage, 5/16" x 3/4" 4 79 070009 Whiziock Screw (931019. 931026) 2
32 069094 "J" Clamp 2 80 065040 Nut 2
33 030126 Running Board, R.H. 1 81 031784 Brace 1
34 030134 Rod, Battery Tie Down 2 82 010289 Eye Bolt 1
35 065070 Locknut, Crown, 1/4-20 2
36 031999 Battery Tray 1
37 075065 Grommet 1 * Parts Not Required on Models 931019 8i 931026
38 059150 Cap Screw, HH, 1/4-20 x 1-1/2" 1
39 061042 Screw, Machine, Truss H, 5/16" x 3/4" 4

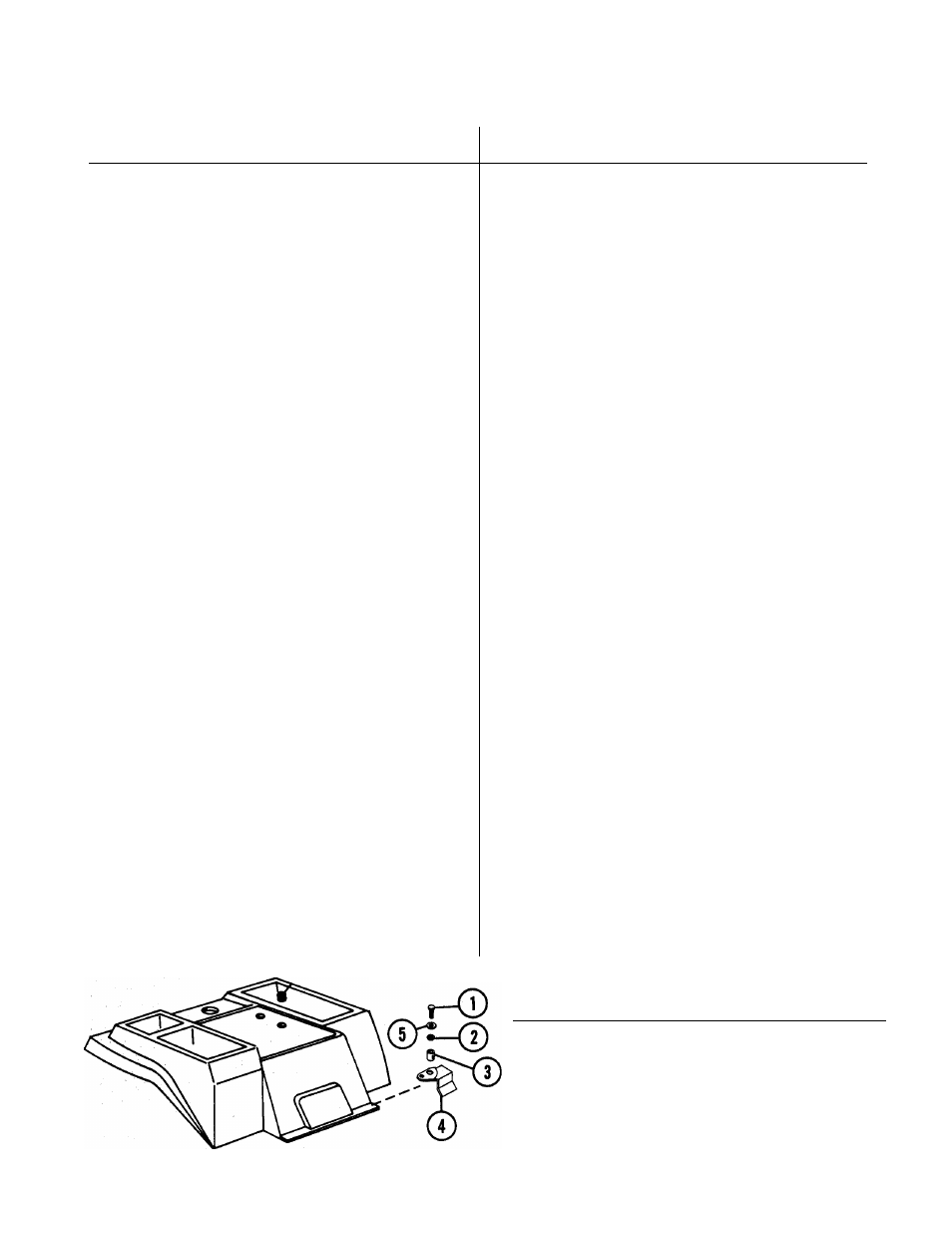

DECK LATCH FOR 1979-80 MODELS
REF.
NO. PART
NO.
DESCRIPTION NO. REO’D
1 070022 FUNGE WHIZLOCK SCREW 2
2 064007 WASHER, Flat, 1/4 std. 2
3 006071 SPACER BUSHING 2
4 030095 UTCH, R.H. (Not LH.) 1
030094 LATCH, L.H. 1
5 003254 WAVE WASHER 4
