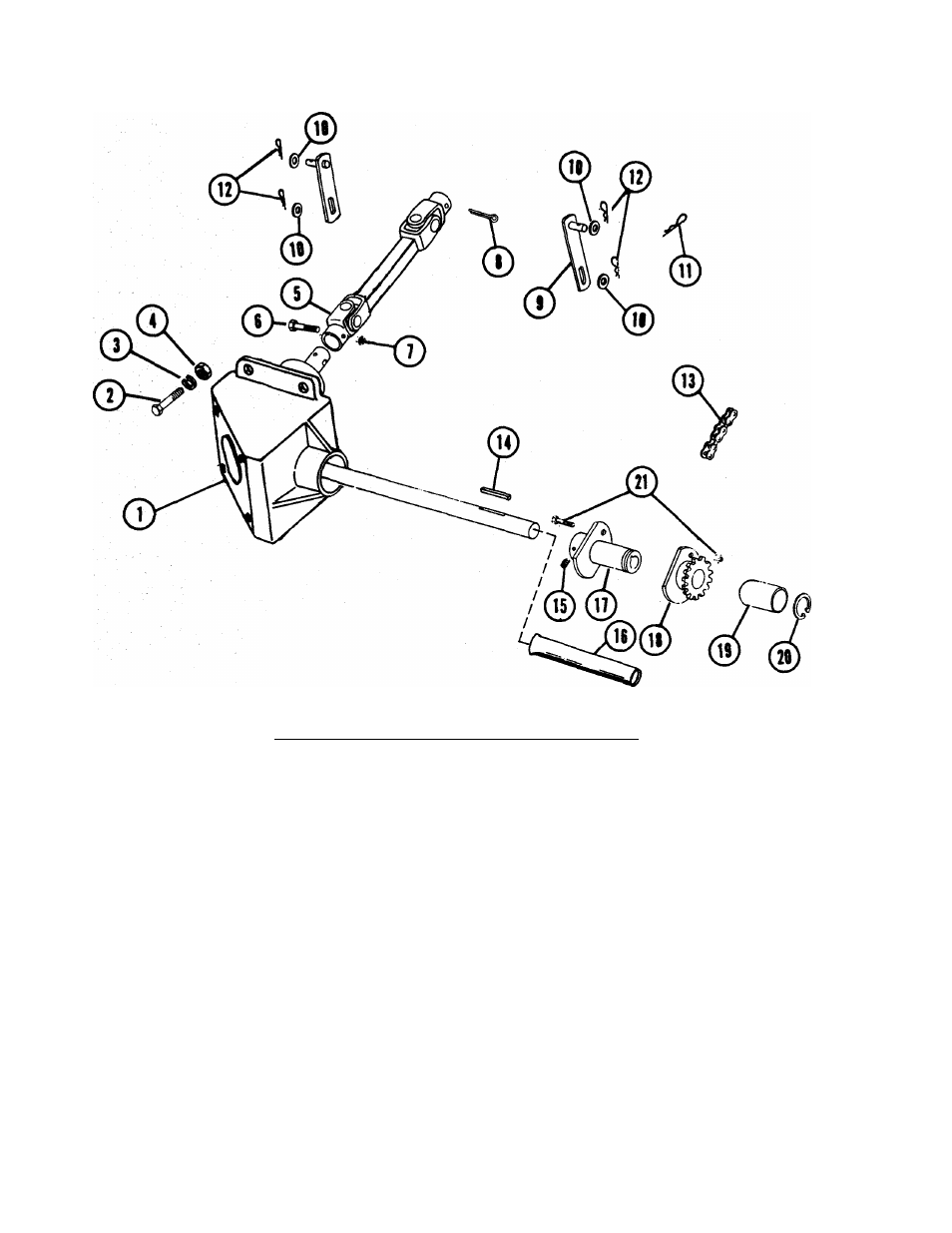

MODEL 831003 48 ST DRIVE ASSEMBLY, SHEAR HUB AND ATTACHING GROUP
REF
NO.
PART
NO.
DESCRIPTION 1
1
631050
GEAR BOX ASS'Y (See page 7)
2
059133
CAP SCREW, 3/8-16
X
1-1/4" H.H. Gr. 5
3
063021
LOCKWASHER, 3/8"
4
065018
NUT, Hex, 3/8-16
5
631048
UNIVERSAL SHAFT ASS’Y
6
059162
CAP SCREW, 1/4-20 x 2", H.H. Gr. 5
7
065070
LOCKNUT, 1/4"-20
8
067030
PIN, Cotter, 3/16x3-1/4
9
031372
LIFT STRAP
10
064003
WASHER, Flat, 1/2"
11
067022
HAIRPIN COTTER, .148
X
2-3/4
12
067029
HAIRPIN COTTER
13
029250
CHAIN
14
066003
KEY, Woodruff No. 9
15
060004
SETSCREW, 5/16-18x3/8
16
031371
SHIELD
17
031374
SHEAR HUB
18
031373
SPROCKET
19
055197
SLEEVE BUSHING
20
057064
SNAP RING
21
531025
SHEAR BOLT AND NUT
QTY.
104
