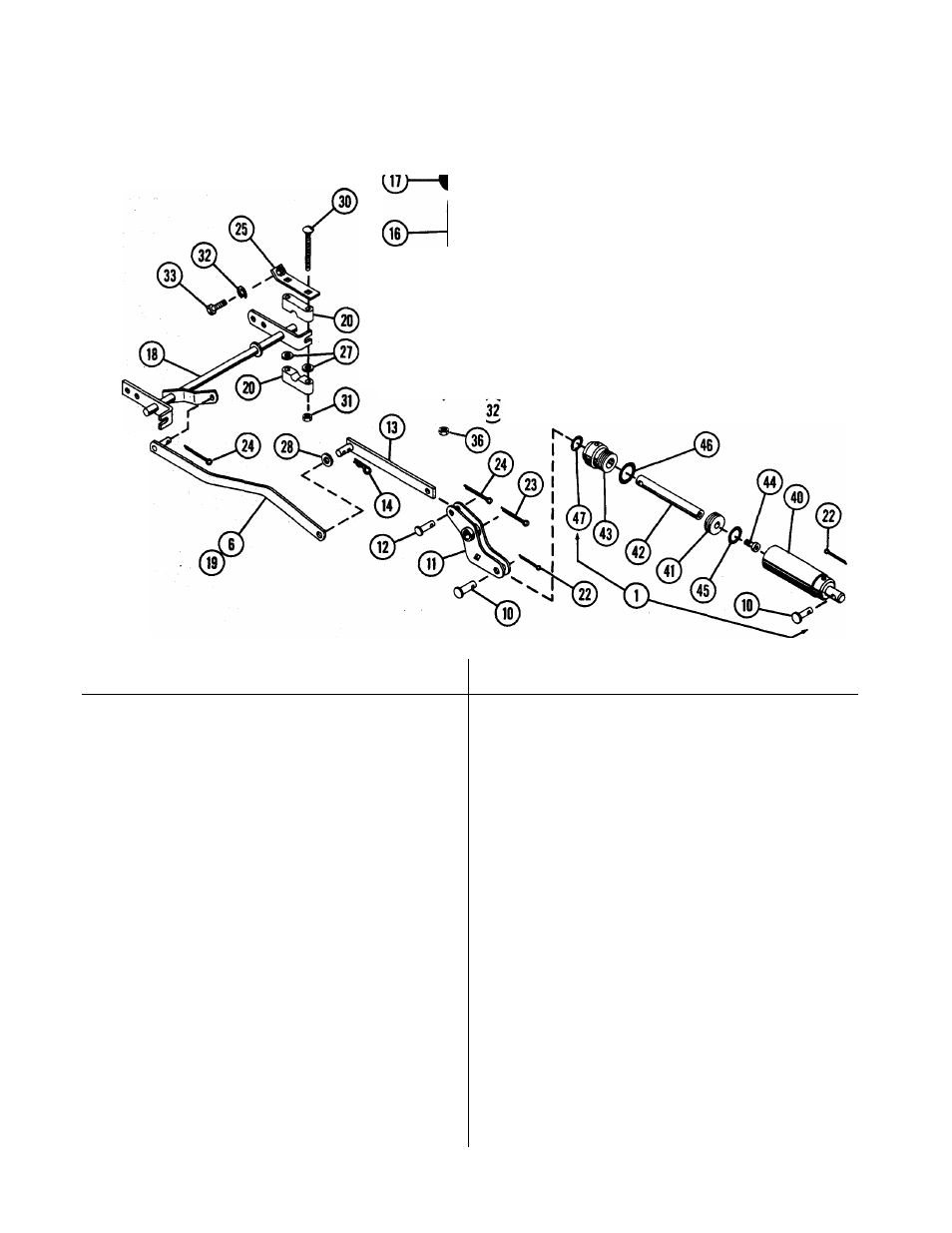

HYDRAULIC LIFT AND FRONT ROCK SHAFT
MODELS 931019, 22, 23, 24, 25 & 26
Ml @
T—
REF.
NO. PART
N0.
DESCmPTION NO. REQ’D
REF.
NO. PART
NO.
DESCRIPTION NO. REQ’D
1 531067 Cylinder Ass'y 1 25 031014 Brace 1
*2 031170 Valve (Early Style) 1 26 030403 Bracket 1
2 030310 Valve (Later Style) 1 27 064115 Shim, 005 Thick 4
3 030087 Hose, 17-5/8" Long. Valve to Reservoir 1 28 064009 Washer, Flat, 3/4" 1
4 030086 Hose, 26-1/4" Long, Valve to Cylinder 2 29 058053 Groove Pin, 1/4" x 3/4" 1
5 030195 Hose, 17-5/8" Long, Valve to Pump 1 30 062005 Bolt, Carriage, 3/8" x 2-1/4" 4
6 030122 Connector, Link (931019, 931026) 1 31 065039 Locknut, Hex, 3/8" 4
7 031068 Adaptor, 1/4" to 9/16", 45® 1 32 063003 Lockwasher, 5/16" 3
8 059050 Cap Screw, HH, 1/4" x 1-1/2" 2 33 059134 Cap Screw, HH, 5/16" x 1-1/4" Gr. 5 1
9 064127 Washer, Flat, 1/4" 2 34 062048 Carriage Bolt, 5/16-18 x 1-1/4" 2
10 031051 Pin, Clevis 2 35 064002 Washer, Flat 5/16" 2
11 031063 Bell Crank 1 36 065015 Nut, Hex, 5/16" 2
12 068061 Pin 1 38 031495 Connector 1
13 031500 Link 1 39 031684 Adaptor 1
14 067029 Hairpin Cotter 1 40 030292 Cylinder Body 1
15 063002 Lockwasher, 1/4" 2 41 030289 Piston 1
16 031189 Control Rod 1 42 030290 Piston Rod 1
17 075052 Knob 1 43 030291 Rod Cap 1
18 531005 Front Rockshaft 1 44 059115 Cap Screw 1
19 031015 Connector Link (931022, 23, 24, 25) 1 45 056102 "0" Ring 1
20 029011 Bearing Block 4 46 056101 "0" Ring 1
21 065032 Nut, Hex, 1/4" 2 47 056100 "0" Ring 1
22 067004 Pin, Cotter, 1/8" X 1" 2 48 030394 Strap 1
23 067006 Pin, Cotter, 3/16" X 1-1/4" 1 *531041 Section Repair Kit Available
24 067026 Pin, Cotter, 3/16" X 1" 2 *531057 Spool Repair Kit Available
