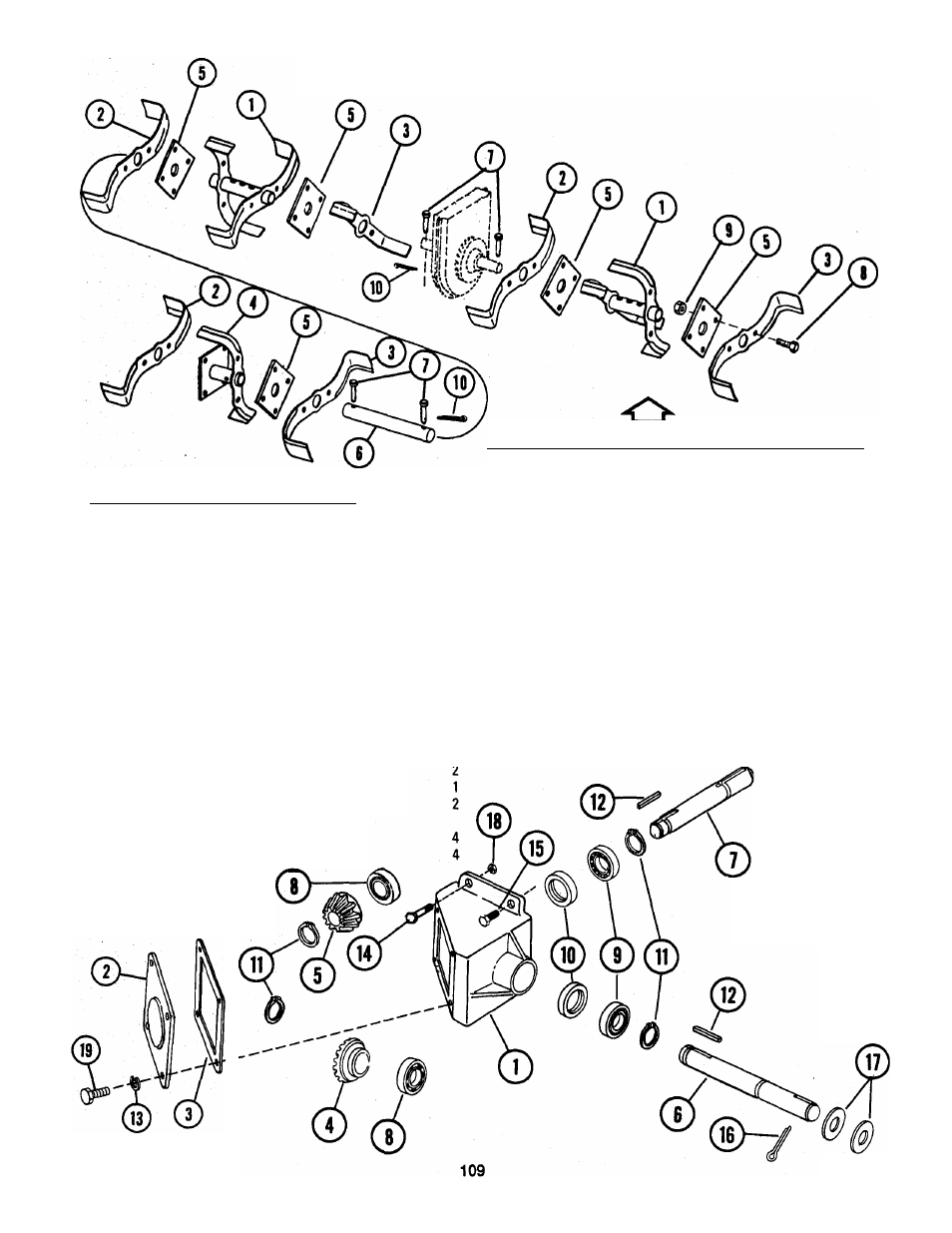

34” TILLER MODELS 831005 & 831006
TINE SHAFT
REF.
NO.
PART
NO.
DESCRIPTION
631054
Gearbox Assembly
1
031461
Housing
2
031462
Lid
3
031463
Gasket
4
031464
Output Gear
5
031465
Input Gear
6
031466
Output Shaft
7
031467
Input Shaft
8
054118
Bearing, Bail
9
054119
Bearing, Ball
10
056080
Seal, Oil
11
057012
Ring, Retaining
12
066031
Key, Ht.
13
063002
Lockwasher, 114" Std.
14
059027
Cap Screw, 3/8-16 x 1-3/4"
15
059133
Cap Screw, 3/8-16 x 1-1/4"
16
067014
Pin, Cotter, 1/4"
X
1-1/4"
17
064108
Washer, Flat, 49/64" ID.
x
1
X
0.062"
18
065039
Locknut, 3/8-16
19
059028
Cap Screw, 1/4-20 x 1/2"
N0. REQ’D
1.125 OD.
REF.
NO.
PART
NO.
DESCRtPTION
NO. REO'O
1
031448
Tine, inner
2
2
031450
Tine, L.H.
3
3
031451
Tine, R.H.
3
4
031452
Tine Extension
1
5
031453
Plate
5
6
031454
Shaft Extension
1
7
031458
Pin, Tine Tube Connector
6
8
059026
Cap Screw, Hex Head, 7/16" x 1"
22
9
065019
Locknut, 7/16"
22
10
067004
Pin, Cotter, 1/8"
X
1"
6
USE ARIENS MULTI-PURPOSE
GREASE, PART NO. 000150
GEAR BOX
(631054)
