Ariens 931 - Manual (Page 153)

ELECTRIC REAR PTO KIT MODEL 731029
FOR GARDEN TRACTOR MODELS 931022, 23, 24
si
Ú\............ & i
...'------

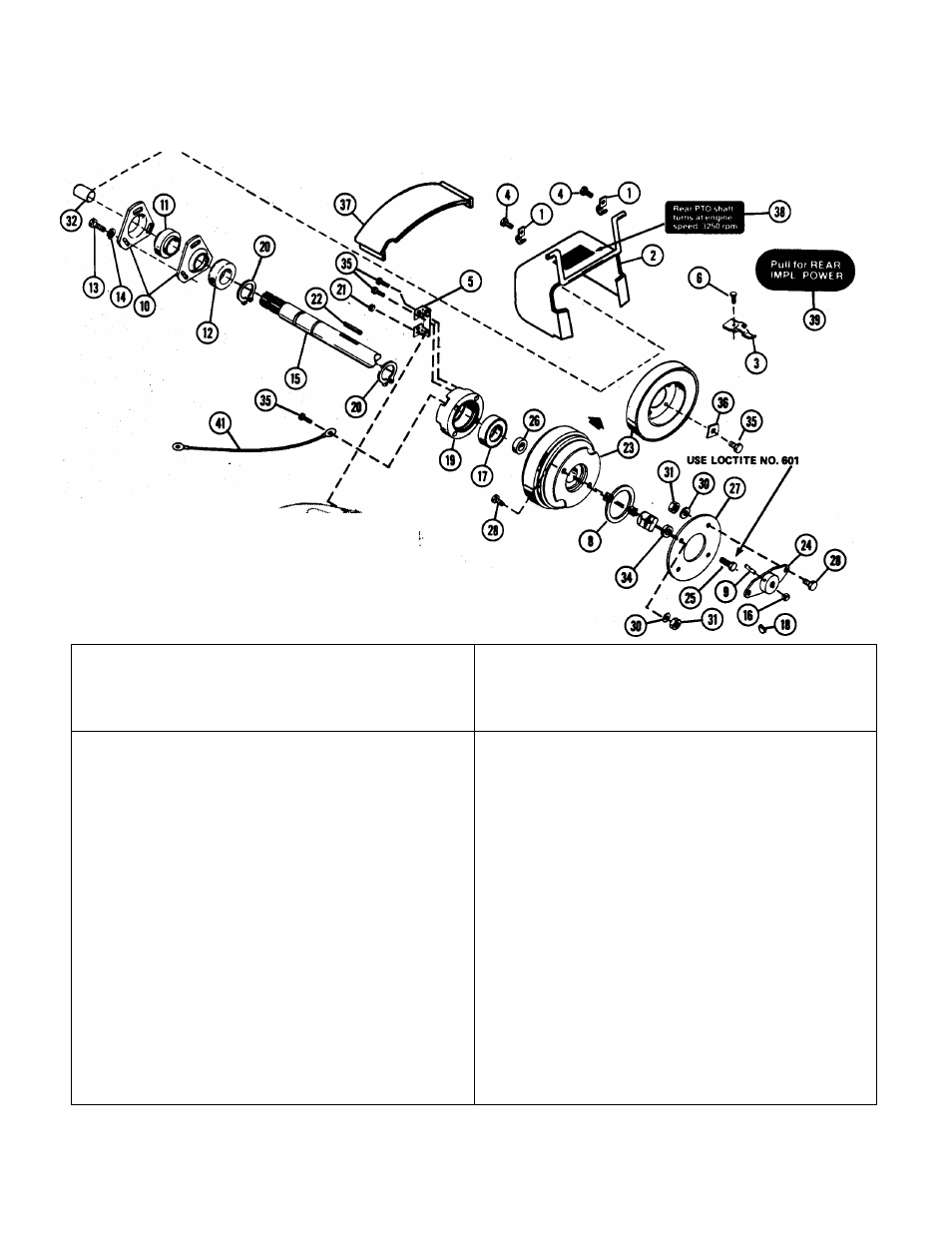

FIGURE 1
REF.
NO. PART
NO.
DESCRIPTION
NO. REO'D
REF.
NO.
PART
NO.
DESCRIPTION
NO. REO'D
1 030164 CLIP 2 22 066022 KEY 1
2 030163 SHIELD 1
23 031990 CLUTCH ASSEMBLY 1
3 031305 SNAP FASTENER 2
24 031988 HUB 1
4 074052 TAPTITE 2
25 070063 CAP SCREW, 3/8-16 X IX" Button Hd. 1
5 631209 LINK ASS'Y 1
26 030160 SPACER 1
6 074054 TAPTITE 2
27 031993 COUPLING 1
8 030158 PILOT PLATE 1 28 059022 CAPSCREW 4
9 030139 STUD 1 30 064123 WASHER 4
10 031020 FLANGETTE 2
31 065042 LOCKNUT 4
11 054110 BEARING, Ball 1 32 075060 CAP 1
12 031315 COLLAR 1
34 030157 RETAINER 1
13 059022 CAPSCREW 3
35 074061 TAPTITE 7
14 063003 LOCKWASHER 3 36 030159 TAB 4
15 031991 SHAFT, Rear PTO 1 37 030161 GUARD (931019&931024) 1
16 065122 LOCKNUT, Grade C 1
38 078600 REAR PTO OECAL 1
17 054052 BEARING, Ball 1 39 078548 REAR IMPLEMENT DECAL
1
18 066003 KEY 1 41 023030 GROUND WIRE 1
19 031989 BEARING HUB 1 42 031150 CLUTCH SWITCH • 1
20 057073 SNAP RING, External 2
43 075068 KNOB • 1
21 065043 LOCKNUT 1 44 030171 CLUTCH HARNESS * 1
*NOT SHOWN ABOVE
