Ariens 931 - Manual (Page 155)

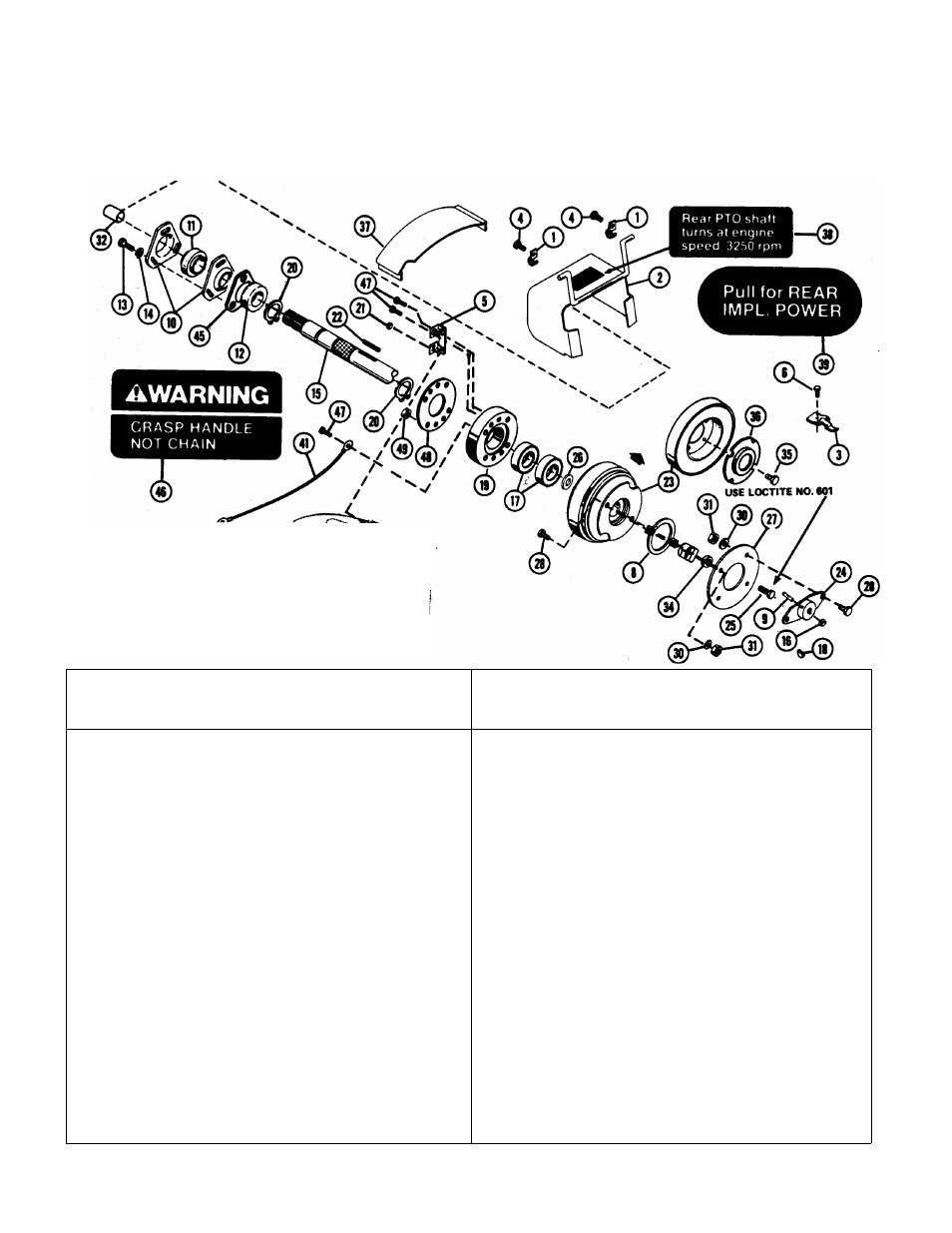

ELECTRIC REAR PTO MODEL NO. 731046
FOR ARIENS GARDEN TRACTOR MODELS 931022,
931023 & 931025
......................................... ;;:"f
REF.
NO
PART
NO
OESCRIPTION
NO. REQ'O
REF.
NO.
PART
NO.
OESCRIPTON
NO. REQ'O
‘l 030164 Clip 2 25 070063 Cap Screw, 3/8-16 x 1%" Button Hd. 1
2 030163 Shield 1 26 064199 Washer Special 1
3 031305 Snap Fastener 2 27 031993 Coupling 1
4 074052 Teptite 2 28 059022 Cap Screw 4
5 631261 Link Assembly 1 30 064123 Washer 4
6 074054 Teptite 2 31 065042 Locknut 4
8 030158 Pilot Plate 1 32 075060 Cap 1
9 030139 Stud 1 34 030157 Retainer 1
10 031020 Flangette 2 35 061060 Machine Screw, 10-24 x 1% 4
11 054110 Bearing, Ball 1 36 030366 Bearing Flange 1
12 031315 Collar 1 37 030161 Guard (931019 & 931024 ) 1
13 059003 Cap Screw 3 38 078600 Rear PTO Decal 1
14 063003 Lockwasher 3 39 078548 Rear Implement Decal 1
15 030367 Shaft, Rear PTO 1 41 023030 Ground Wire 1
16 065122 Locknut, Grade C 1 42 031150 Clutch Switch* 1
17 054052 Bearing, Ball 2 43 075068 Knob* 1
18 066003 Key 1 44 030171 Clutch Harness* 1
19 030364 Bearing Hub 1 45 030264 Spacer Flange A/R
20 057073 Snap Ring, External 2 46 078494 Warning Decal 1
21 065043 Locknut 1 47 074027 Taptite 3
22 066022 Key 1 48 030365 Ring 1
23 031990 Clutch Assembly 1 49 065041 Locknut 4
24 031988 Hub 1 *N0T SHOWN ABOVE
