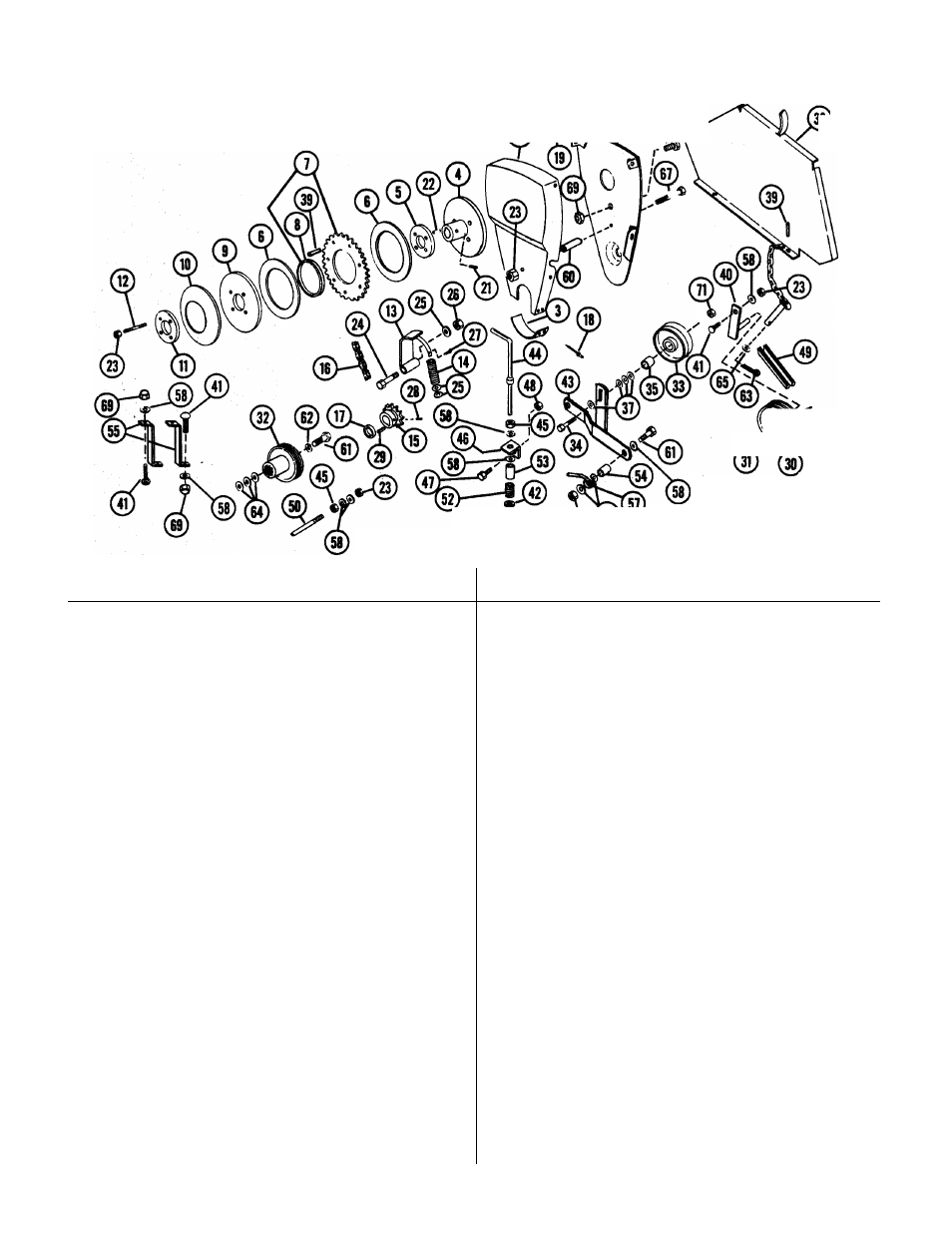

34” TILLER MODELS 831005 & 831006
DRIVE SPROCKET, IDLER, ^
THROW OUT CLUTCH, GUARD m
@ &
8EF.
NO. PART
N0. DESCRIPTION NO. REO’D
REF.
NO. PART
NO.
DESCRIPTION N0.REQ’D
1 031417 Outer Chain Guard 1 34 059144 Cap Screw, HH, 1/2" x 2-1/2" Gr. 5 1
2 031414 Inner Chain Guard 1 35 031395 Spacer 1
3 031423 Plastic Shield 1 37 064003 Washer, 1/2" 4
4 031427 Hub Assembly 1 38 031418 Guard 1
5 031428 S|>acer Ring 1 39 058057 Roll Pin, 5/16" X 3/4" 3
6 031432 Clutch Friction Oise 2 40 031400 Belt Guide 1
7 631058 Sprocket 1 41 062028 Carriage Bolt, 3/8 x 1 3
8 055092 Bushing 1 42 064145 Washer, 3/8 3
9 031429 Outer Disc 1 43 031386 Idler Arm 1
10 031430 Beliieville Washer 1 44 031697 Lever 1
11 031431 Spring Deflector Ring 1 45 065016 Nut, Hex 3/8 4
12 031433 Stud 4 46 031396 Angle, Lever Mount 1
13 031420 Chain Tightner Paddle 1 47 059082 Cap Screw, HH, 1/4" x 3/4" 1
14 083143 Spring 1 48 065070 Locknut, Hex, 1/4" 1
15 031402 Sprocket, 10T 1 49 072105 "V" Belt (Matched Set of 2) 1
16 031404 Drive Chain 1 50 031401 Rod, Belt Guide 1
17 031403 Sprocket Spacer 1 52 083139 Lever Spring 1
18 068039 Rivet 2 53 031397 Lever Spacer 1
19 059168 Cap Screw, HH, 5/16 x 1/2" Gr. 5 2 54 031387 Bushing, Idler Arm 1
20 063003 Lockwasher, 5/16 2 55 031394 Bracket, Idler 2
21 060004 Setscrew, Hex Socket 5/16 x 1/4" 1 57 031393 Belt Finger 2
22 066018 Key, Square 1/4" x 1-3/4" 1 58 064008 Washer 3/8 8
23 065098 Locknut, Hex 3/8 8 59 064002 Washer 5/16 2
24 059169 Cap Screw, HH 5/16 x 2-1/4" Gr. 5 1 60 031419 Spacer 1
25 064123 Washer, 5/16 4 61 059030 Cap Screw, 3/8-16 x 2-1/4" Gr. 2 2
26 065042 Locknut, Hex 5/16 1 62 063004 Lockwasher, 3/8 1
27 067024 Pin, Cotter, 1/8" X 3/4" 1 63 067012 Cotter Pin 1
28 060032 Setscrew, Hex Socket 5/16" x 1/2" 4 64 030029 Spacer AR
29 066013 Key, Square 3/16 x 1 1 65 064064 Washer, 3.4 I.D. x 1-3/8 0.0. x 1/8" 1
30 031392 Sheave 1 67 059160 Cap Screw, 3/8-16 x 2-3/4" Gr. 5 1
31 066023 Key, Square 3/16" x 1-3/4" 1 68 061048 Machine Screw, 5/16-18 x 1 F.H. 1
32 531110 Pulley, PTO 1 69 065095 Crown Locknut, 5/16-18 3
33 073065 Idler 1 71 065046 Locknut 1
