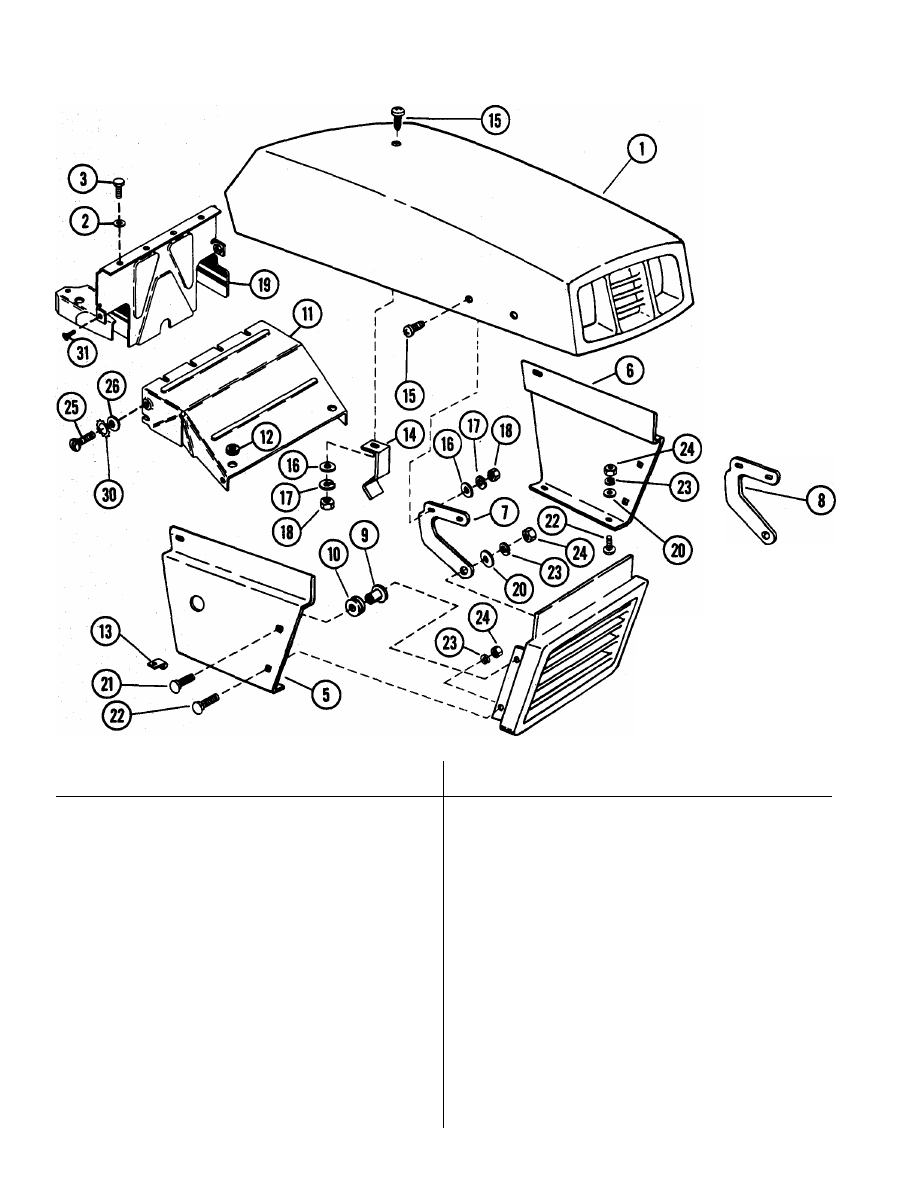

HOOD, GRILLE, AND HEAT SHIELD
MODELS 931019, 20, 21, 22, 23, 24, 25 & 26
"<1)
REF.
NO. PART
N0. DESCRIPTION N0. RED’D
REF.
NO. PART
NO.
DESCRIPTIDN ND. RED’D
1 031174 Hood, NOTE: Decals, Nameplates, and 14 031093 Latch 1
Hood Stops Must Be Ordered as Required 1 15 061039 Screw, Machine, Truss H, 1/4 x 3/4" 5
2 064065 Washer .268" ID. x 9/16" OD. 4 16 064127 Washer, Flat, 1/4" 5
3 059080 Cap Screw, 1/4-20 x 5/8" 4 17 063002 Lockwasher, 1/4" 5
4 031046 Grille 1 18 065032 Nut, Hex, 1/4" 5
5 030129 Side, Right Hand (931019, 931026) 1 19 030317 Exhaust Manifold Shield (931026) 1
031139 Side, Right Hand 1 20 064008 Washer, Flat, 3/8" 6
6 031138 Side, Left Hand 1 21 062032 Bolt, Carriage 3/8" x 2" 2
7 031185 Hinge, Right Hand 1 22 062013 Bolt, Carriage 3/8" x 1" 6
8 031186 Hinge, Left Hand 1 23 063021 Lockwasher, 3/8" 8
9 031145 Spacer, 3/4" 2 24 065018 Nut, Hex, 3/8" 8
10 075064 Grommet 2 25 061042 Screw, Machine, Truss 5/16" x 3/4" 2
11 031091 Muffler Shield (931020, 21,22,23, 25) 1 26 064123 Washer, Flat, 5/16" 2
030121 Muffler Shield (931019) 1 30 063018 Star Lockwasher 2
030318 Muffler Shield (931026) 1 31 070045 Screw, 1/4-20 (931026) 2
031986 Muffler Shield (931024) 1
12 075066 Grommet 1
13 069094 "J" Clamp 2.
