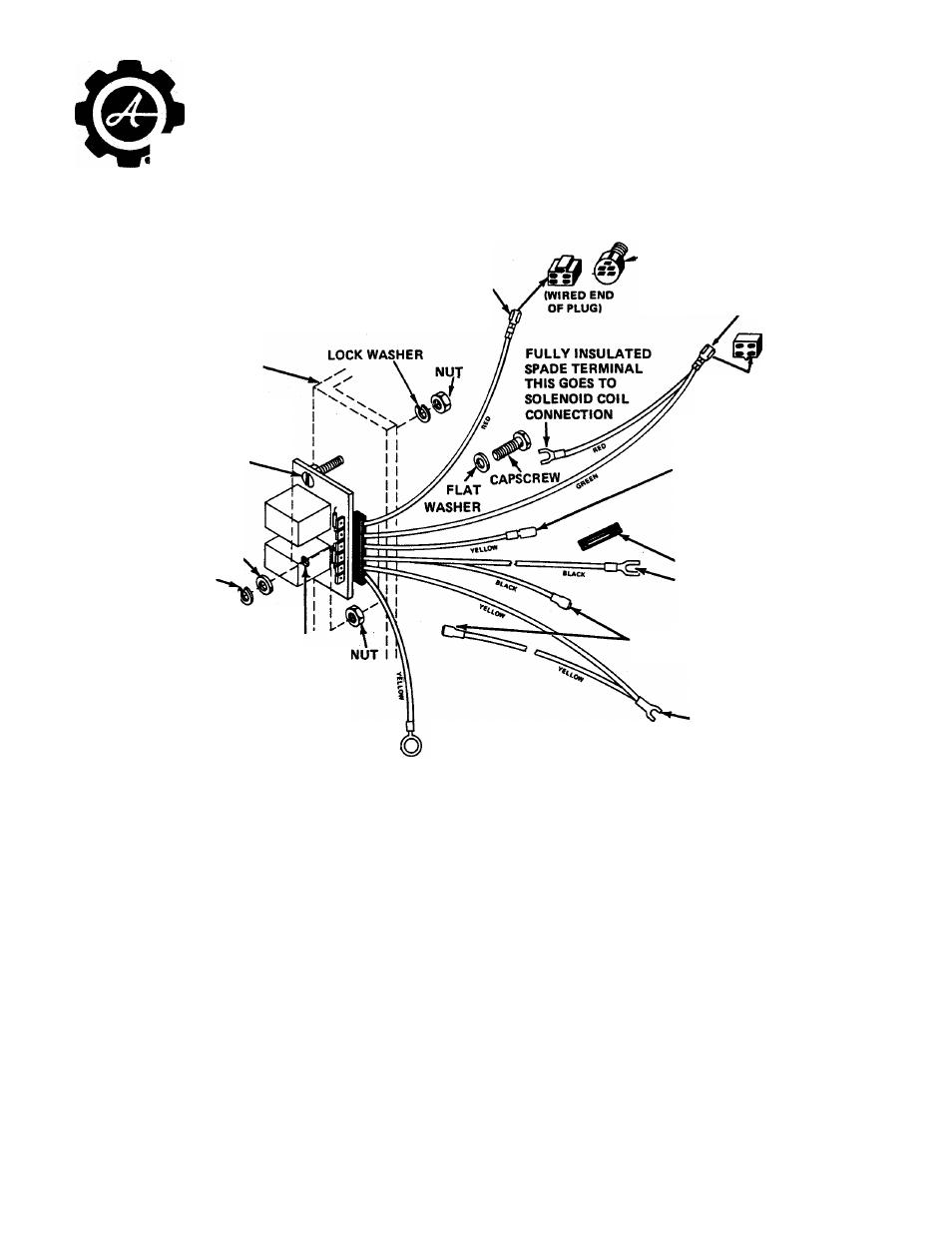

INTERLOCK MODULE
PART NO. 531099
IGN.
SWITCH
31152
WIRE No. 1 - GOES TO CONNECTOR
BLOCK ON IGNITION SWITCH
(REMOVE PRESENT WIRE)
TRACTOR STEERING
POST COLUMN
MOUNTS TO RELAY DIODE
MOUNTING HOLE WITH BOLT
AND NUT (AS SPACER) PLUS
LOCKWASHER AND SECOND
NUT (RELAY DIODE MOUNTING
HARDWARE).
THIS CONNECTOR REPLACES
THE CONNECTOR IN THE
PTO SWITCH PLUG
FEMALE CONNECTOR
31150
'CLUTCH
SWITCH
FLAT WASHER
LOCK WASHER
NUT—
MOUNTS TO STARTER
SOLENOID MOUNTING HOLE
WITH BOLT 59132
3/8 RING TERMINAL
INSULATED--------
(WIRED END OF PLUG)
THE WIRE FROM THE SEAT
SWITCH (FROM THE REAR, IN
THE WIRE HARNESS) WHICH
PREVIOUSLY WAS CONNECTED
TO No. 2 RELAY NOW CONNECTS
TO THIS TERMINAL. USE 31895
INSULATION SLEEVE TO COVER
CONNECTION
31895 INSULATION SLEEVE
THIS WIRE CONNECTS
TO THE INPUT OF THE
IGNITION COIL
CONNECT TO STARTER
SIDE OF SOLENOID
CONNECT TO ONE TERMINAL
OF THE RESET SWITCH
TO PTO CLUTCH
CIRCUIT BREAKER
31108
156
