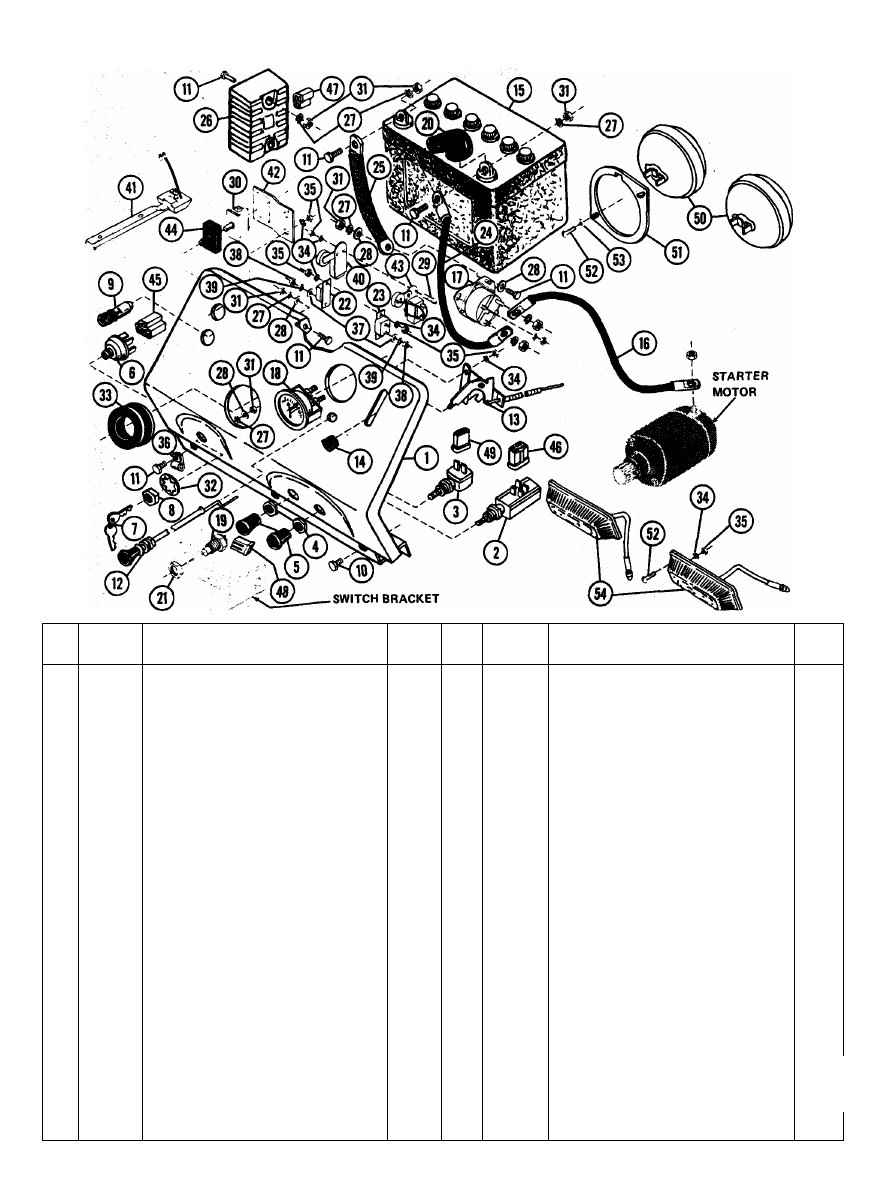

DASH, CONTROLS AND ELECTRICAL
MODELS 931008-12
i
REF
N0.
PART
NO. DESCRIPTION
NO.
REQ'D
REF
NO.
PART
NO. DESCRIPTION
NO.
REQ'D
1 531058 DASH W/Decal 1 28 064127 WASHER, Flat 1/4" 4
2 031150 SWITCH, Clutch 1 29 061012 MACHINE SCREW, No. 10-24 x 1/2 2
3 031151 SWITCH, Lights 1 30 025172 SWITCH 1
4 065104 NUT, Jam, 1/2" 2 31 065032 NUT, Hex, 1/4” 8
5 075068 KNOB, Switch 2 32 063029 LOCKWASHER, Internal Tooth, 9/16” 1
6 031152 SWITCH, Ignition 1 33 075061 GROMMET 1
7 013157 KEY SET 1 34 063011 LOCKWASHER, External Tooth, No. 10 14
8 065106 NUT, Special, 9/16" 1 35 065055 NUT, Hex, No. 10-24 14
g 031179 PTO Indicater 8i Wire Ass'y 1 36 031070 CLIP 2
10 074043 SCREW, Self-Tapping, No. 10 x 1/2 4 37 064141 WASHER 4
11 059001 CAPSCREW, HH, 1/4 X 3/4 8 38 065026 NUT 4
12 069103 CHOKE CONTROL ASS'Y 1 39 063011 LOCKWASHERS 4
13 069104 THROTTLE CONTROL 1 40 031708 RELAY - Diode 1
14 O75019 KNOB, Throttle Control 1 41 031716 SEAT SWITCH 1
15 031085 BATTERY, 12 Volt 1 42 031833 BRACKET-Switch 1
16 031111 CABLE ASS'Y, Solenoid to Starter 1 43 031839 RELAY - Clutch Control 1
17 031720 SOLENOID STARTER SWITCH 1 44 075045 RUBBER BOOT 1
18 031117 AMMETER 1 45 023478 CONNECTOR HOUSING, 5 Wire 1
19 029131 SWITCH, Safety 1 46 023595 CONNECTOR HOUSING, 4 Wire 1
20 075057 INSULATOR 1 47 031106 CONNECTOR HOUSING, 3 Wire 1
21 065096 NUT, Special, 5/8” 1 48 029170 CONNECTOR HOUSING, 2 Wire 1
22 031102 CIRCUIT BREAKER, 20 Amp 1 49 031105 CONNECTOR 1
23 031108 CIRCUIT BREAKER, 6 Amp 1 50 031149 HEAD LIGHT 2
24 031110 CABLE ASS'Y, Battery to Solenoid 1 51 031159 RETAINER RING 2
25 031103 CABLE ASS'Y, Battery to Ground 1 52 061040 SCREW, Machine, Truss H. No. 10-1/2" 8
26 031109 REGULATOR RECTIFIER 1 53 064001 WASHER 8
2 7 063002 LOCKWASHER, 1/4" 8 54 631006 TAIL LIGHT 2
BULB-for item 54GE 1895 (not ill.) 2
031375 LENS • Red for item 54 (not ill.) 2
