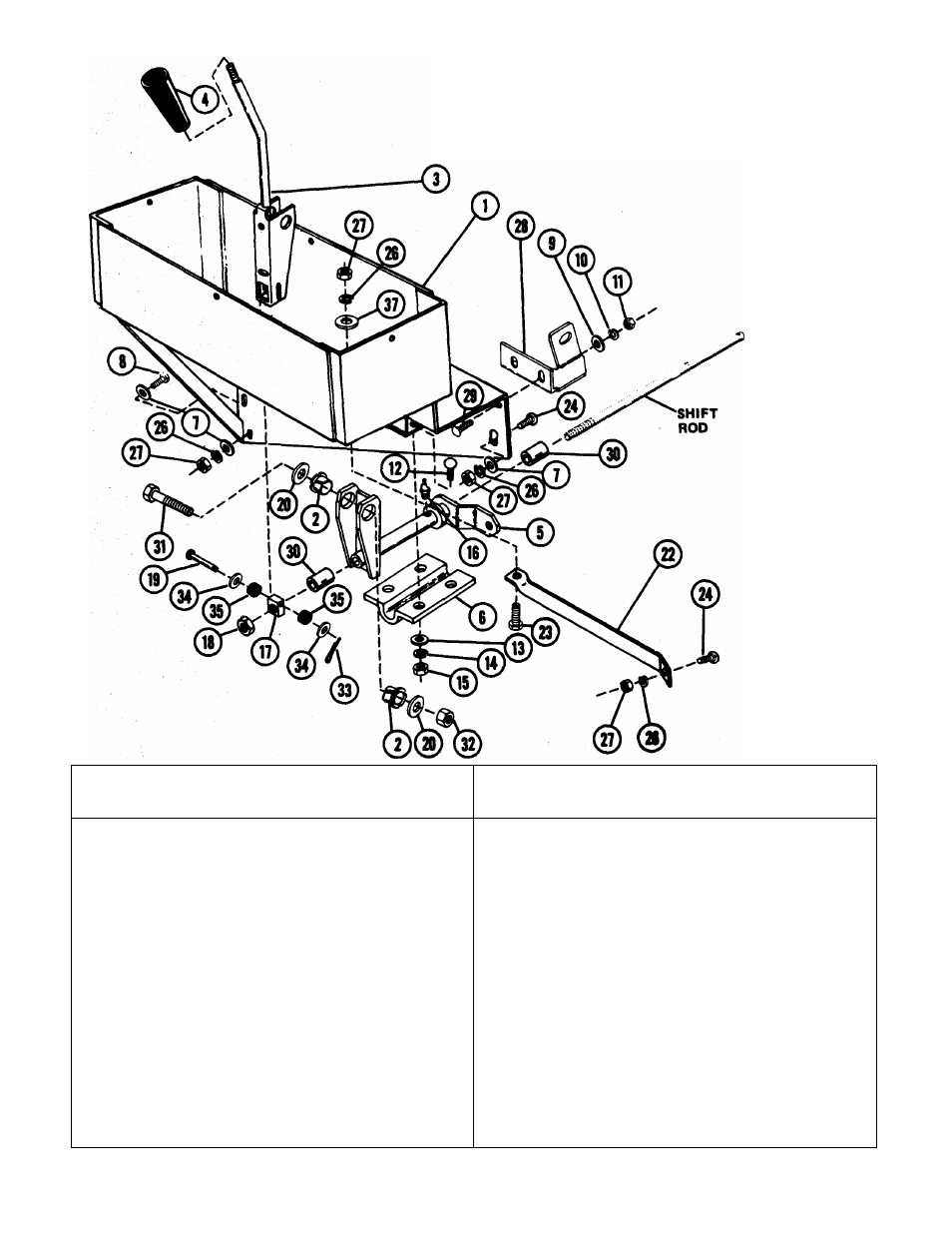

GEAR SHIFT LINKAGE & CONSOLE
ARBRE DE RELEVAGE CENTRAL
MODELS 931013, 931014, 931020 & 931021
REF.
NO.
PART
NO.
DESCRIPTION
NO. REQ'D
REF.
NO.
PART
NO.
DESCRIPTION
NO. REQ'D
1
031736
CONTROL BOX
1
19
031960
SHAFT PIN
1
2
055101
BUSHING FLANGE
2
20
064121
WASHER
2
3
031955
SHIFT HANDLE
1
22
031024
BRACE
1
4
075049
HANDLE
1
23
059023
CAP SCREW, 3/8-16x3/4
1
5
631121
SHIFT LEVER
1
24
062013
BOLT, Carriaga. 3/8-16x1
3
6
031737
SHIFT SUPPORT
1
25
064008
WASHER, 3/8
2
7
064008
WASHER
4
26
063021
LOCKWASHER
5
8
059004
CAPSCREW, 3/8-16 X 1"
1
27
065018
NUT
5
9
064002
WASHER, 5/16
2
28
031765
SWITCH BRACKET
1
10
063003
LOCKWASHER
2
29
062011
BOLT, Carriage, 5/16-18x3/4
2
11
065015
NUT
2
30
055100
SLEEVE BUSHING
2
12
062017
BOLT, Carriage 1/4-20 x 5/8
4
31
059185
CAPSCREW
1
13
064007
WASHER 1/4 Standard
4
32
065019
LOCKNUT
1
14
063002
LOCKWASHER 1/4
4
33
067001
COTTER PIN
1
IS
065032
NUT 1/4-20
4
34
064037
WASHER
2
16
022093
ZERK FITTING
1
35
075044
GROMMET
2
17
031967
ADJUSTING BLOCK
1
37
064043
WASHER
1
18
065046
LOCKNUT
1
