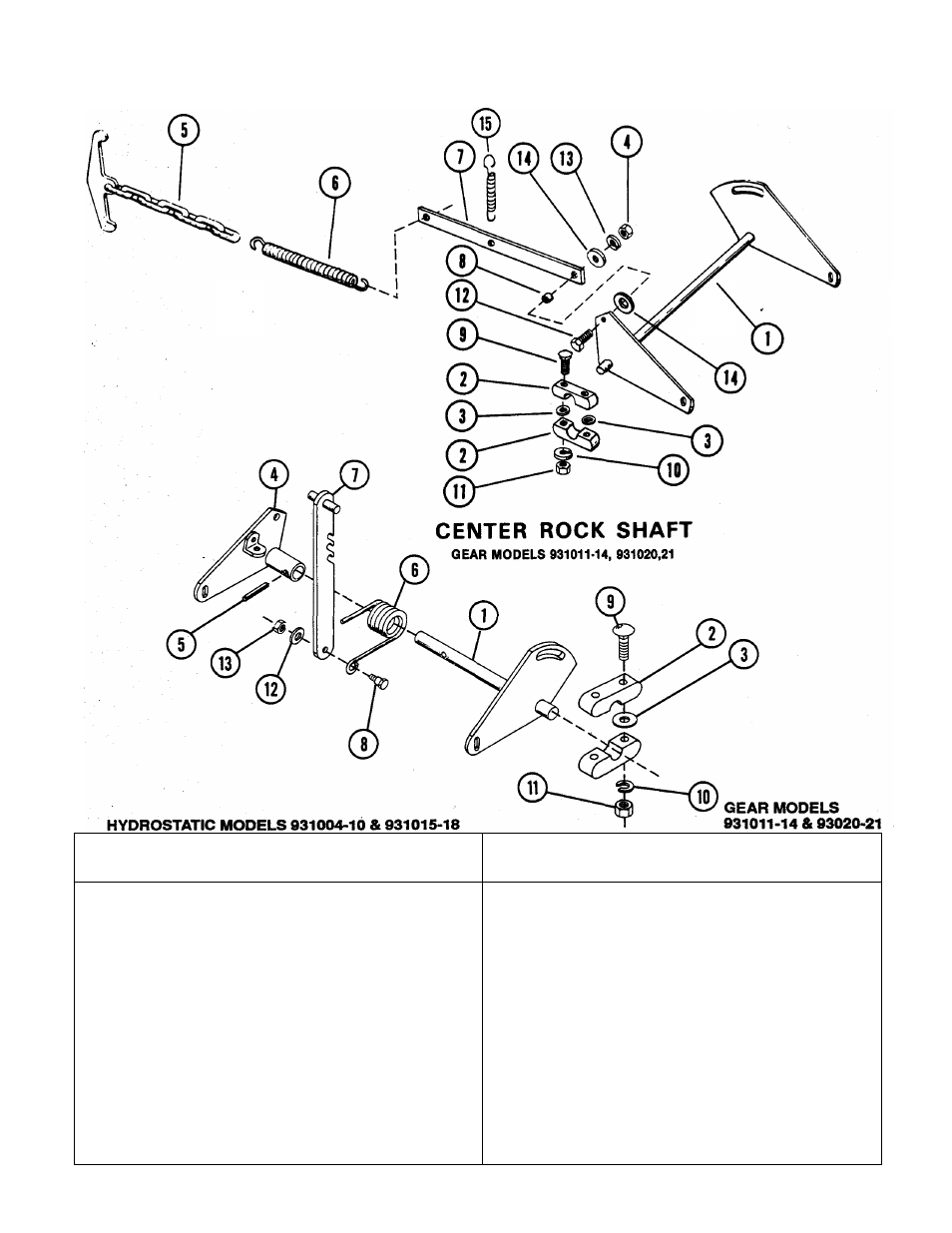

CENTER ROCK SHAFT
HYDROSTATIC MODELS 931004-10 & 15-18
REF
N0.
PART
N0.
DESCRIPTION
NO.
REQ'D
REF
NO.
PART
NO.
DESCRIPTION
NO.
REQ'D.
T
031050
CENTER ROCK SHAFT
1
1
031790
CENTER ROCK SHAFT
1
2
029011
BEARING BLOCK
4
2
029011
BEARING BLOCK
4
3
064115
SHIM, .005 Thick
4
3
064115
SHIM, .005 Thick
4
4
065032
NUT, Hex, 1/4"
1
4
031811
R.H. ROCKSHAFT LEVER
1
5
031017
CHAIN, 11 Links
1
5
058063
PIN GROOVE, 1/4x2
1
6
083107
SPRING
1
6
083167
SPRING, Torsion
1
7
031181
LINK, 9-1/2" Long
1
7
031809
SPRING HANDLE
1
8
031021
SPACER
1
8
011120
BDLT, Shoulder
1
9
062005
BOLT, Carriage, 3/8 x 2-1/4
4
9
062005
BOLT, Carriage, 3/8 x 2-1/4
4
10
063021
LOCKWASHER,3/8
4
10
063021
LOCKWASHER, 3/8
4
11
065018
NUT, Hex, 3/8
4
11
065018
NUT, Hex, 3/8
4
12
059132
CAPSCREW, HH, 1/4x1"
1
12
064003
WASHER
1
13
063002
LOCKWASHER, 1/4"
1
13
065039
LOCKNUT
1
14
064127
WASHER, Flat, 1/4"
2
15
083149
SPRING
1
