Ariens 931 - Manual (Page 43)

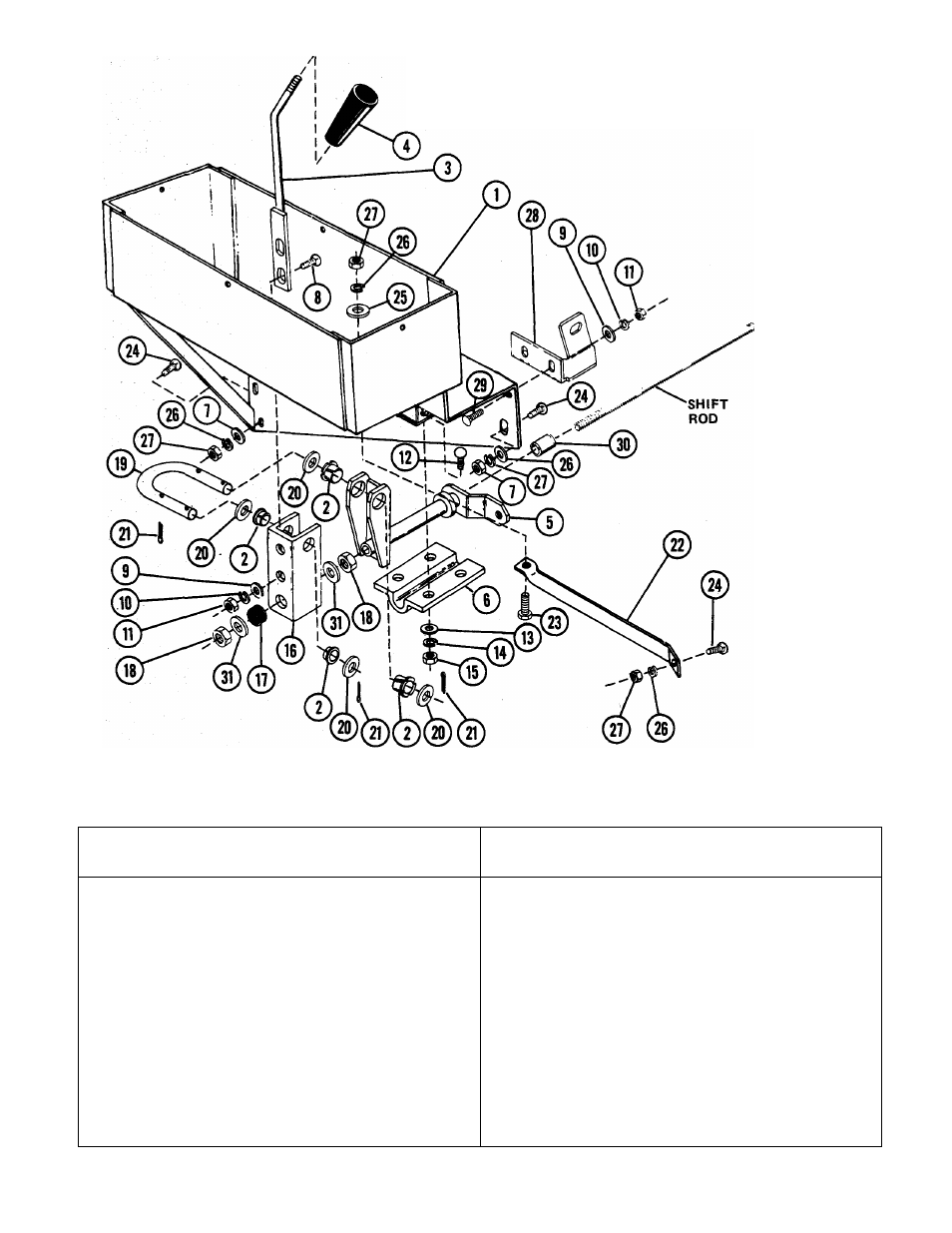

GEAR SHIFT LINKAGE & CONSOLE PARTS
GEAR MODELS 931011&931012
GEAR SHIFT LINKAGE & CONSOLE PARTS LIST
GEAR MODELS 931011&931012
REF
NO. PART
NO.
DESCRIPTION
NO
REQ’D
REF
NO. PART
NO.
DESCRIPTION
NO
REQ'D
1 031736 CONTROL BOX 1 16 031739 CHANNEL 1
2 055101 BUSHING FLANGE 4 17 075064 GROMMET 1
3 031750 SHIFT HANDLE 1 18 065046 LOCKNUT 2
4 075049 HANDLE 1 19 031740 ROD-U 1
5 631121 SHIFT LEVER 1 20 064121 WASHER 4
6 031737 SHIFT SUPPORT 1 21 067004 COTTER PIN 4
7 064008 WASHER 3 22 031024 BRACE 1
8 062031 BOLT, Carriage, 5/16-18 x 1 2 23 059023 CAP SCREW, 3/8-16x3/4 1
9 064002 WASHER, 5/16 4 24 062013 BOLT, Carriage, 3/8-16 x 1 3
10 063003 LOCKWASHER 4 25 064008 WASHER, 3/8 1
11 065015 NUT 4 26 063021 LOCKWASHER 5
12 062017 BOLT, Carriage 1/4-20 x 5/8 4 27 065018 NUT 5
13 064007 WASHER 1/4 Standard 4 28 031765 SWITCH BRACKET 1
14 063002 LOCKWASHER 1/4 4 29 062011 BO LT, Carriage, 5/16-18x3/4 2
15 065032 NUT 1/4-20 4 30 055100 SLEEVE BUSHING 2
064038 WASHER, Special 2
