HYDRAULIC LIFT AND FRONT ROCK SHAFT
GEAR MODELS 931012, 931013 & 931021
REF.
NO. PART
NO.
DESCRIPTION
NO. REQ'D
1 531067 CYLINDER ASS'Y (includes adapters) 1
*2 031170 VALVE 1
3 031779 HOSE, 20" Long, Pump to Valve 1
4 031692 HOSE, 2714" Long, Valve to Cylinder 1
5 031778 HOSE, 19" Long, Valve to Reservoir 1
6 031058 HOSE, 2414" Long, Valve to Cylinder 1
7 031780 AOAPTER, 1/4 to 9/16,45° 1
8 059050 CAPSCREW, HH, 1/4x11/2 2
9 064127 WASHER, Flat, 1/4” 2
10 031051 PIN, Clevis 2
11 031063 BELL CRANK 1
12 068061 PIN 1
13 031500 LINK 1
14 067029 HAIRPIN COTTER 1
15 063002 LOCKWASHER, 1/4" 3
16 031189 CONTROL ROD 1
17 075052 KNOB 1
18 531005 FRONT ROCKSHAFT 1
19 031015 CONNECTOR LINK 1
20 029011 BEARING BLOCK 4
21 065032 NUT, Hex, 1/4" 6
22 067004 -PIN, Cotter, 1/8x1 2
23 067006 PIN, Cotter, 3/16 X 1-1/4 1
24 067026 PIN, Cotter, 3/16 X 1" 2
25 031014 BRACE 1
26 031076 BRACKET 1
27 064115 SHIM, .005 Thick 4
28 064009 WASHER, Flat, 3/4 1
29 058053 GROOVE PIN, 1/4 X 3/4 1
30 062005 BOLT, Carriage, 3/8 x 2-1/4 4
31 065039 LOCKNUT, Hex, 3/8 4
32 063003 LOCKWASHER, 5/16" 6
33 059134 CAPSCREW, HH, 5/16 X 1-1/4 GR.5 1
34 059022 CAPSCREW, HH, 5/16x3/4 3
35 064002 WASHER, Flat, 5/16 7
36 065015 NUT, Hex, 5/16 2
37 069094 J-CLAMP 1
38 031495 ADAPTOR, 9/16 1
39 031634 ADAPTOR 1
REF.
NO.
PART
NO.
DtbUKlr riUIM
NO. REQ'D
40 031785 OIL RESERVOIR 1
41 031787 CIRCULATION COVER 1
42 030009 FILLER COVER (931013,21) 1
031786 FILLER COVER (931012)
43 031789 GASKET RESERVOIR 2
**44 031727 PUMP HYDRAULIC 1
45 031794 PUMP MOUNTING BRACKET 1
46 031781 HOSE, 14" Pump to Reservoir 1
47 031783 BRACKET 1
48 031782 BRACKET, Mounting 1
49 062011 BOLT, Carriage 5/16-18 X 3/4" 2
50 059004 CAP SCREW, 3/8-16 X 1 4
51 064078 WASHER 4
52 063021 LOCKWASHER 4
53 065018 NUT, 3/8-16 4
54 074027 TAPTITE 12
55 074059 TAPTITE 2
56 062012 BOLT, Carriage 1/4-20 x 3/4" 1
57 064007 WASHER 1
58 001138 PIPE PLUG (931013, 931021) 1
031807 PIPE PLUG W/ BREATHER (931012) 1
59 066032 KEY 1
60 060008 SETSCREW 2
61 031795 SHEAVE 1
62 031797 ADAPTOR 1
63 031788 ADAPTOR 3/8 to 9/16 1
64 072088 BELT (931021) 1
65 004226 PIPE PLUG (931013) 1
66 030013 COVER (931013) 1
67 030011 FITTING (931013) 1
68 030012 OIL EXPANSION CUP (931013) 1
69 030014 FIBER WASHER (931013) 1
70 065075 NUT (931013) 2
71 063019 LOCKWASHER (931013) 1
72 030008 HOSE, 16” Long (931013) 1
73 030010 CONNECTOR (931013) 1
*531041 Section Repair Kit Available
*531057 Spool Repair Kit Available
**531075 Pump Repair Kit Available for most
maintenance repairs.

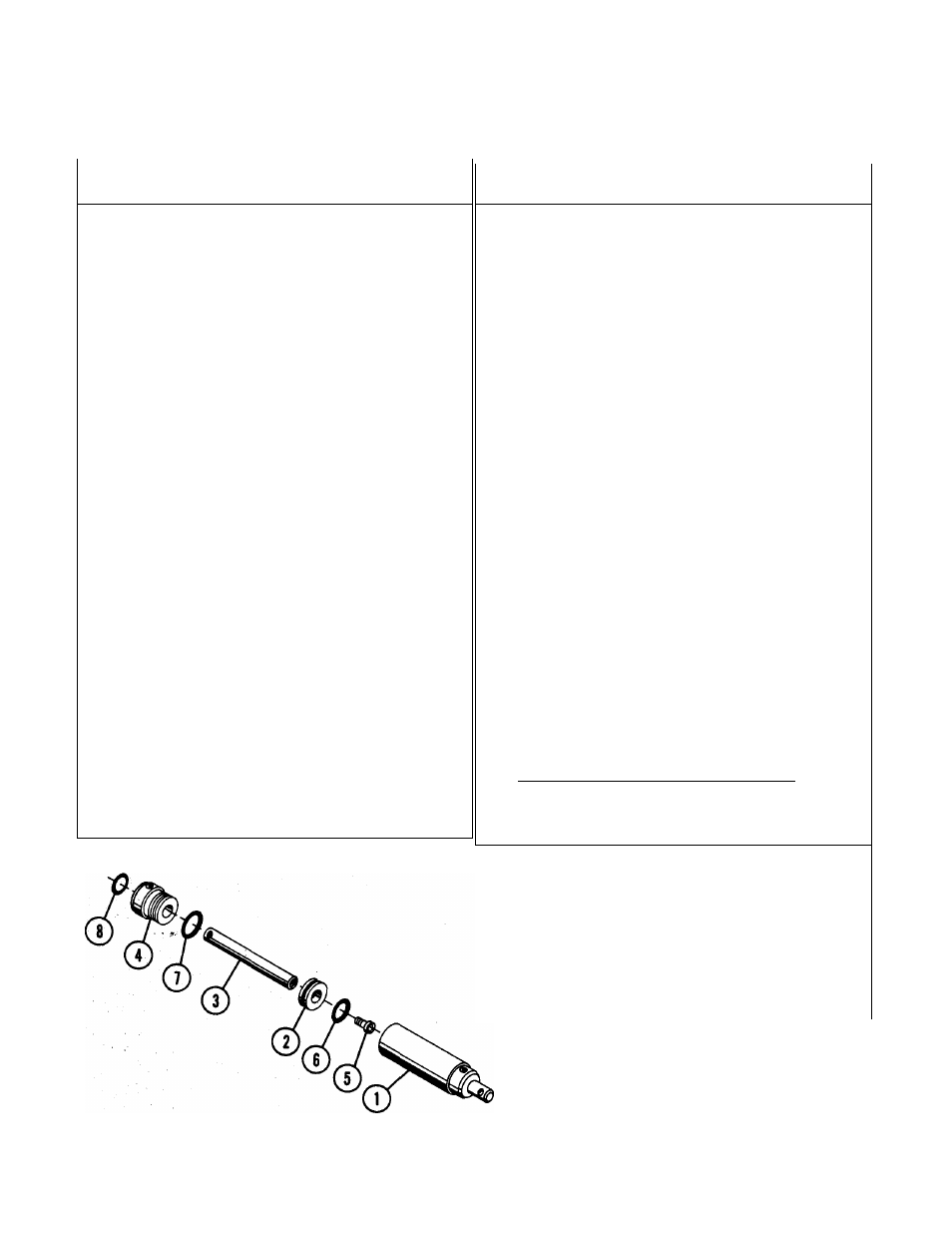

1 031918 S CYLINDER BODY 1
2 031917 S PISTON 1
3 031916 S PISTON ROD 1
4 031915 S PISTON ROD GUIDE 1
5 059115 M CAP SCREW 1
6 056102 F "0" RING 1
7 056101 F "0" RING 1
8 056100 F "0" RING 1
