Ariens 931 - Manual (Page 161)

(T^rlens
FRONT PTO, ELECTRIC CLUTCH -
BRAKE KIT MODEL NO. 531141
FOR 931000 SERIES 1-1/8" BORE CLUTCH
HYDROSTATIC GARDEN TRACTORS,
MODELS 931019, 22, 23, 24, 25
TERMINAL AND CONNECTOR
CONNECT TO IMPLEMENT
POWER CONTROL SWITCH
CHECK AIR GAP BETWEEN
THESE TWO SURFACES
FIELD
ASSEMBLY
CHECK AIR GAP
THROUGH THESE
SLOTS*
SPRING
ROTOR
ASSEMBLY
EXISTING
CAP SCREW
*ADD SHIMS AS REQUIRED FOR
FREE AIR GAP; PRIOR TO SETTING
BRAKE, SET GAP TO .125/.060
**SEE TABLE 1 FOR
PROPER SPACER USE
ARMATURE
ASSEMBLY
BRAKE DRUM
ASSEMBLY

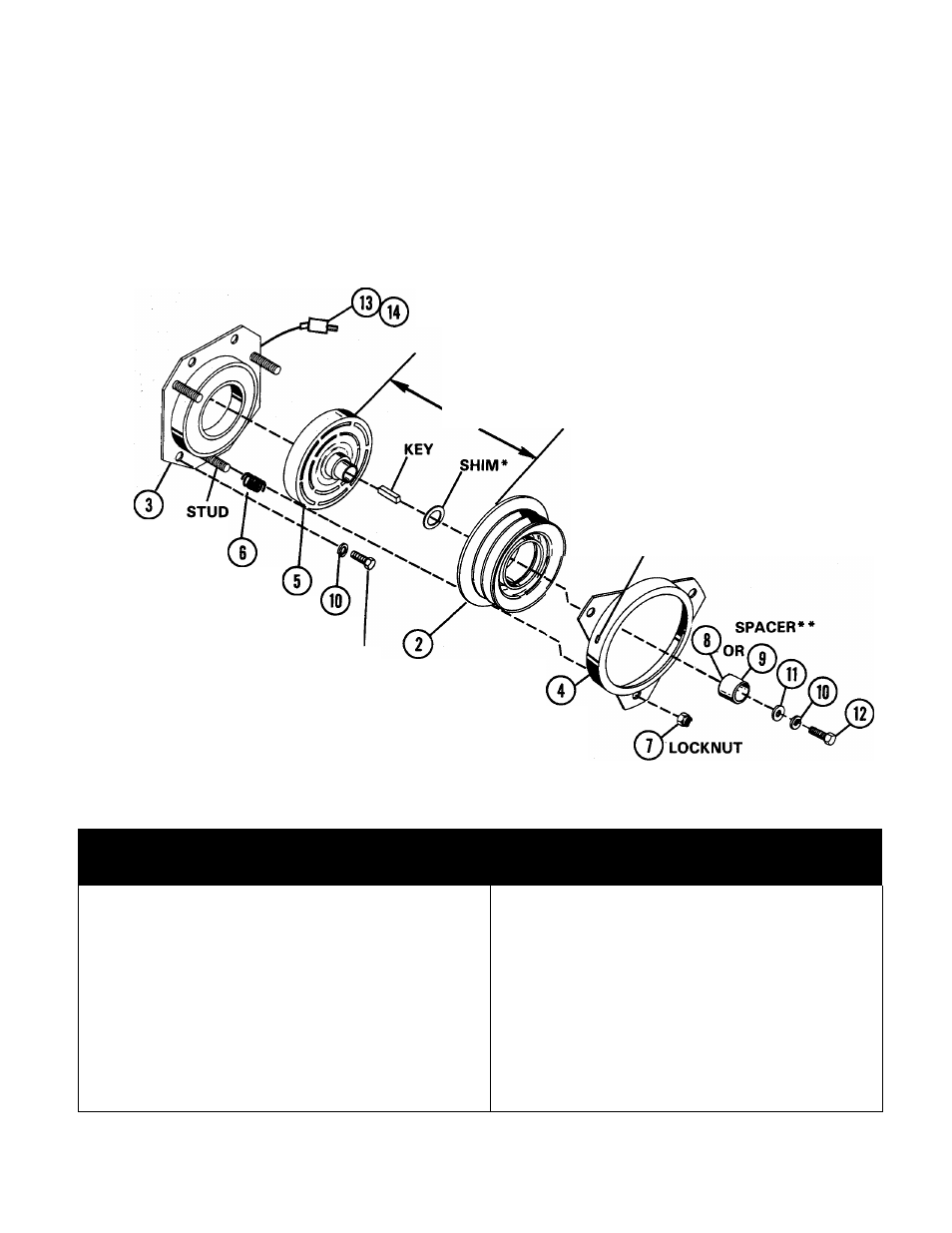

FIGURE 1
No DE No DE
REF. PIECE
REF. PART
NO. NO.
CODE
D’INV
DESCRIPTION
CODE
OUANTITE
N0. RED’D
No DE No DE
REF. PIECE
REF. PART
N0. N0.
CODE
n’INV
STOCK description
CODE
OUANTITE
N0. RED’D
1 531141
s Clutch Assembly, 1-1/8 Bore Complete 1 I 9 030299 M Spacer, 1
2 030301 0 Armature Assembly 1 Outside Dia. 1-1/8"
3 030302 0 Field Assembly 1 Inside Dia. .447"
4 030303 0 Brake Drum 1 Thickness, .220"
5 030304 0 Rotor Assembly 1 10 063005 M Lockwasher 5
6 083148 M Spring, Compression 3 11 064198 M Washer, 7: x IVe" x %" PI. 1
7 065116 M Locknut 3 12 059205 M Cap Screw, 7/17-20 x 1%, Gr 2 HHPL 1
I
8 030300 M Spacer 1 13 003391 S Receptical Terminal 1
Outside Dia. 1-3/8"
Inside Dia. 1.130"
Thickness, .855"
14 030057 S Connector Body 1
PART NO. 79580
ARIENS COMPANY
655 WEST RYAN STREET
BRILLION, WISCONSIN 54110
160
PRINTED IN U.S.A.
