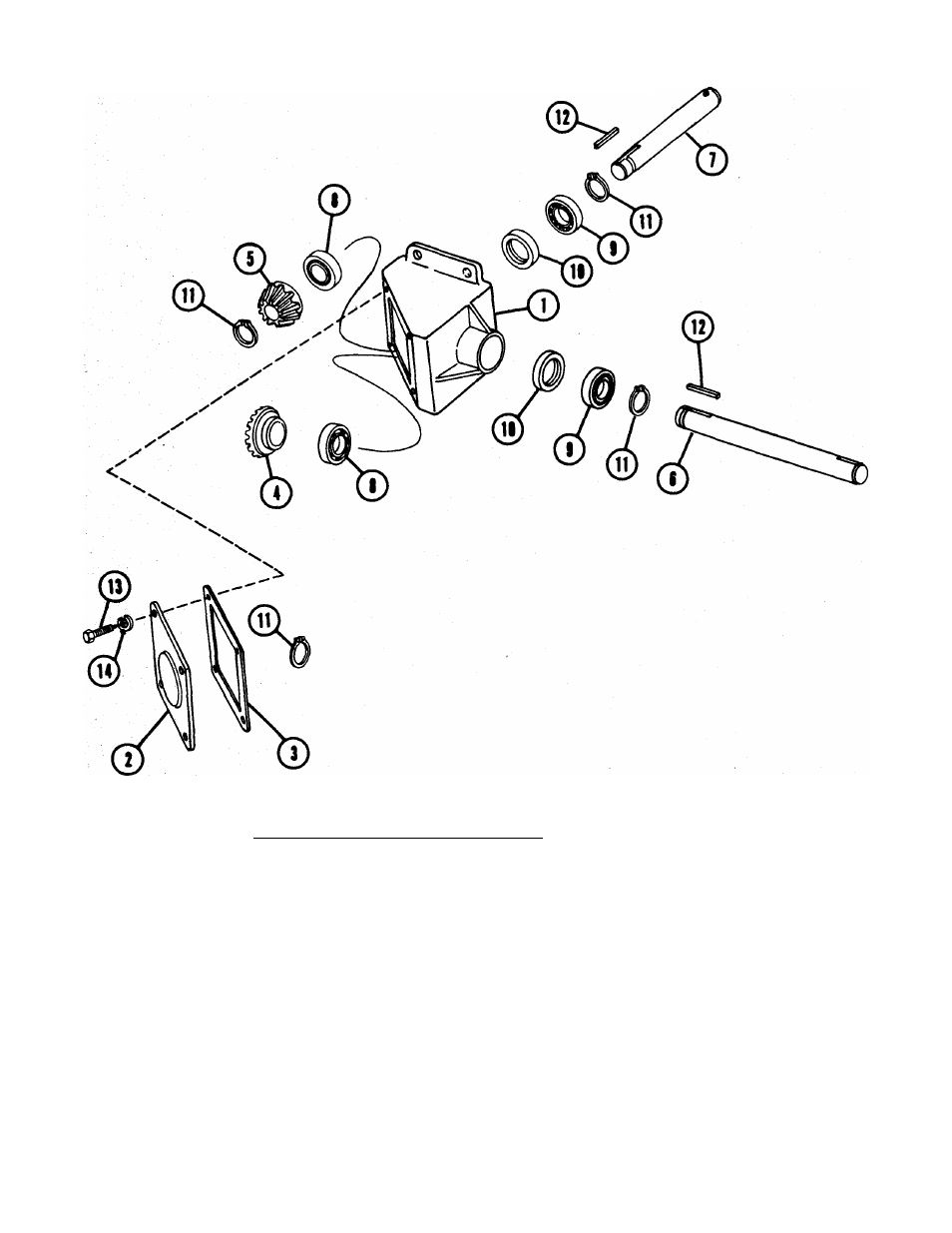

MODEL 831003 48 ST GEARBOX ASSEMBLY
REF
NO.
PART
NO.
OESCRIPTON
1
031461
HOUSING
2
031462
LIO
3
031463
GASKET
4
031469
BEVEL GEAR OUTPUT
5
031471
BEVEL GEAR INPUT
6
031470
OUTPUT SHAFT
7
031472
INPUT SHAFT
8
054118
BALL BEARING
9
054119
BALLBEARING
10
056080
OIL SEAL
11
057012
SNAP RING
12
066031
KEY, 3/16" Lg.x 11/16"
13
059028
CAPSCREW 1/4"-20x1/2'
14
063002
LOCK WASHER, 1/4"
QTY.
2
2
2
4
2
4
4
105
