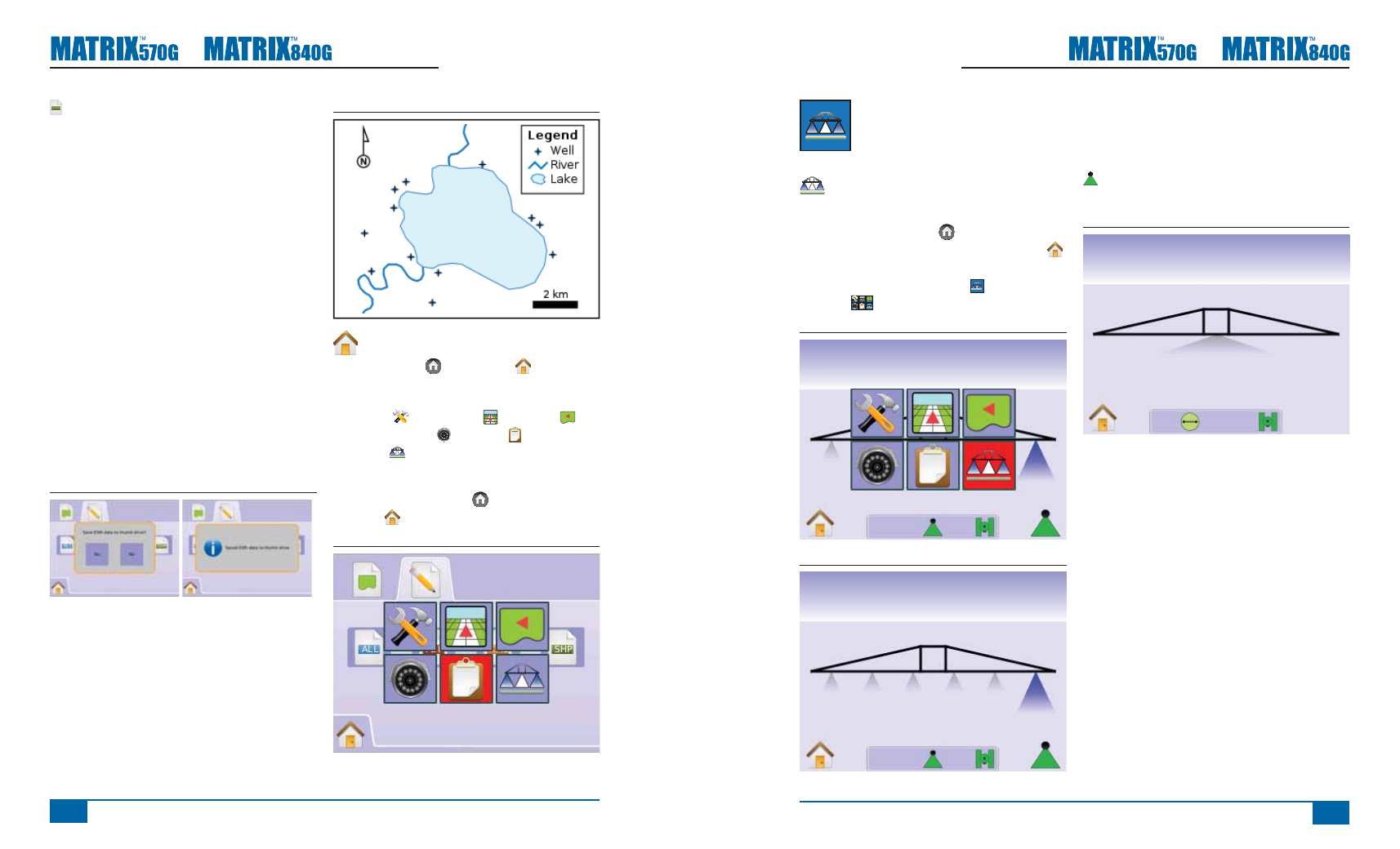

BOOM MONITORING
Boom Monitoring displays boom sections
activity, Guidance activity and Status Bar
activity. BoomPilot can be set from this screen.
Boom Monitor
To view the Boom Monitoring screen:
1. Press HOME BUTTON or press the screen
to activate the icons and select HOME ICON
in bottom left corner of screen.
2. Select BOOM MONITORING from Home
Menu .
Figure 4-12: Home Menu - Boom Monitoring
Swath acres
0.0 0
Figure 4-13: Boom Monitoring
mph acres
0.0 3.3
BoomPilot is Unavailable
If a SmartCable or Section Driver Module (SDM) is
not present, a status switch must be used. Only one
section will be illustrated, the BOOMPILOT ICON
will be unavailable and the Status Bar will have
no icon.
Figure 4-14: Boom Unavailable
mph acres
0.0 3.3
SHP
ESRI Data
Selecting to save a SHP fi le will create a GIS
(Geographic Information System) or shapefi le.
Shape fi les are a useful tool as many customers use
third party GIS software to plot, store and analyze
data collected by the Matrix 570G.
"Balancing the inputs and outputs on a farm is
fundamental to its success and profi tability. The
ability of GIS to analyze and visualize agricultural
environments and workfl ows has proven to be very
benefi cial to those involved in the farming industry.
From mobile GIS in the fi eld to the scientifi c
analysis of production data at the farm manager's
offi ce, GIS is playing an increasing role in
agriculture production throughout the world by
helping farmers increase production, reduce costs,
and manage their land more effi ciently."
– ESRI.com
A shapefi le is a digital vector storage format for
storing geometric location and associated attribute
information.
Figure 4-9: Save SHP
Figure 4-10: ESRI Data Example
Home Menu
The Home Button or Home Icon gives you
access to the unit’s three functions: Setup, Guidance
and Monitoring. The six touch screen Menu Options
(Unit Setup , Vehicle View , Field View ,
RealView Guidance , Job View and Boom
Monitoring ) quickly access all aspects of the unit.
To view the Home Menu options:
1. Press HOME BUTTON or select HOME
ICON in bottom left corner of either screen.
Figure 4-11: Home Menu
